Parts List 582/583 Front View
Page 30 MDE-4766 Series 580 Installation/Operation/Parts Manual · April 2009

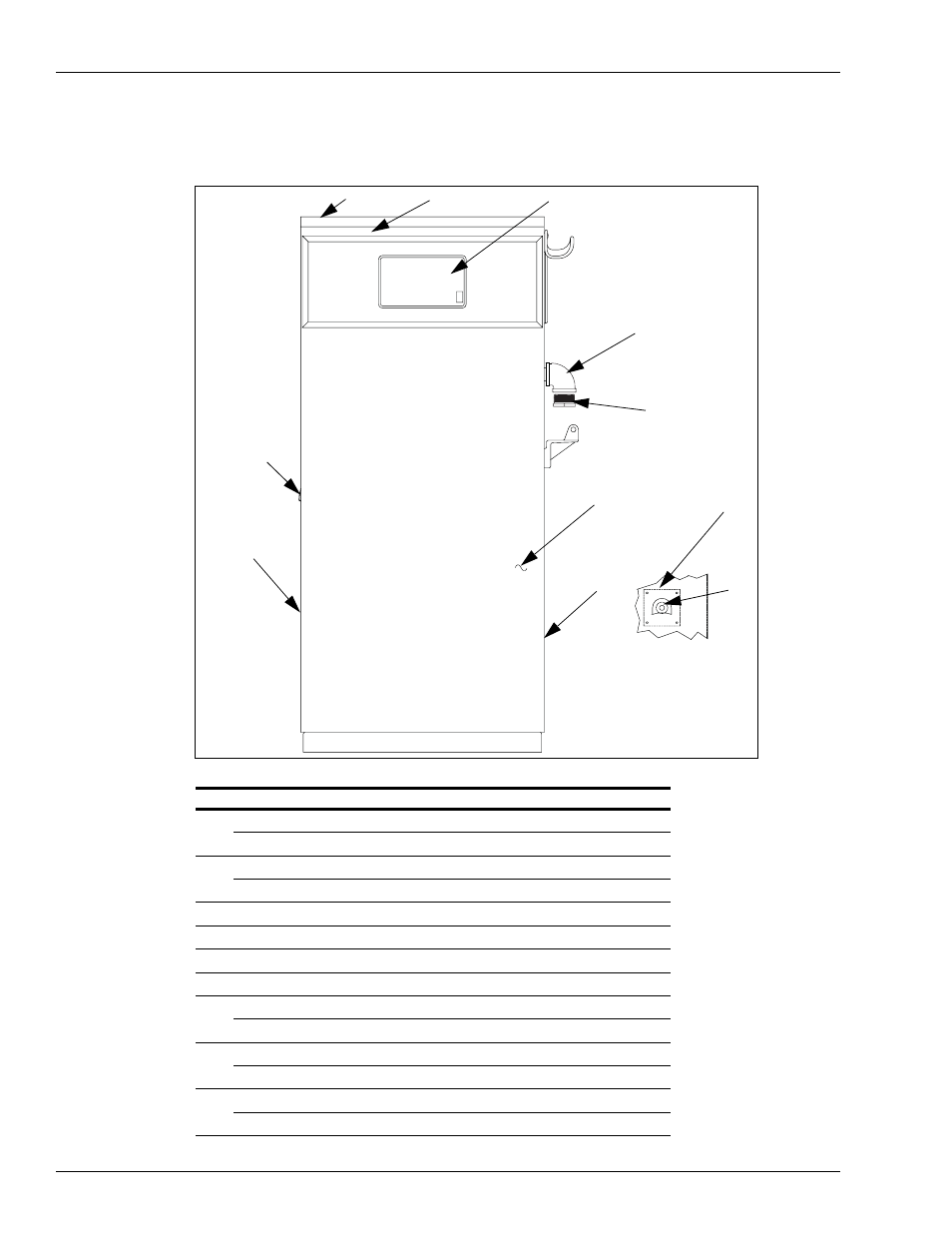

582/583 Front View
10
11 8
7
4, 5
6
9
See Detail “A”
1 2 3
Detail “A”
Item Description Part Number
1 Cover-Top Painted (See Note) 042206
Cover-Top SS 042207
2 Bezel-580 (also specify standard Gasboy silk-screen, below) 012328
Silk-screen, Standard *029703
3 Dial Glass-580 028650
4 Grommet, 1-inch 028960
5 Discharge Elbow, 1-inch 024895
6 Reducer Bushing, 1 x ¾, 582 Only 017278
7 Door-Front-Painted, 580 (See Note) 024581
Door-Front-SS, 580 024852
8 Panel-Side Right Painted (See Note) 041386
Panel-Side Right SS 041393
9 Panel-Side Left Painted, 580 (See Note) 041385
Panel-Side Left SS, 580 041391
