Installing Boot Switch Kit (M14142K001)
6
Hook the spring in place. With the boot handle lifted up, the set screw cavity on the shaft
should align with the set screw. Ensure that the set screw cavity and roll pin point are in the
same direction (see
). It is important that the set screw engage the set screw
cavity on the shaft. To ensure that it stays engaged, apply a light coat of thread lock to the set
screw threads.

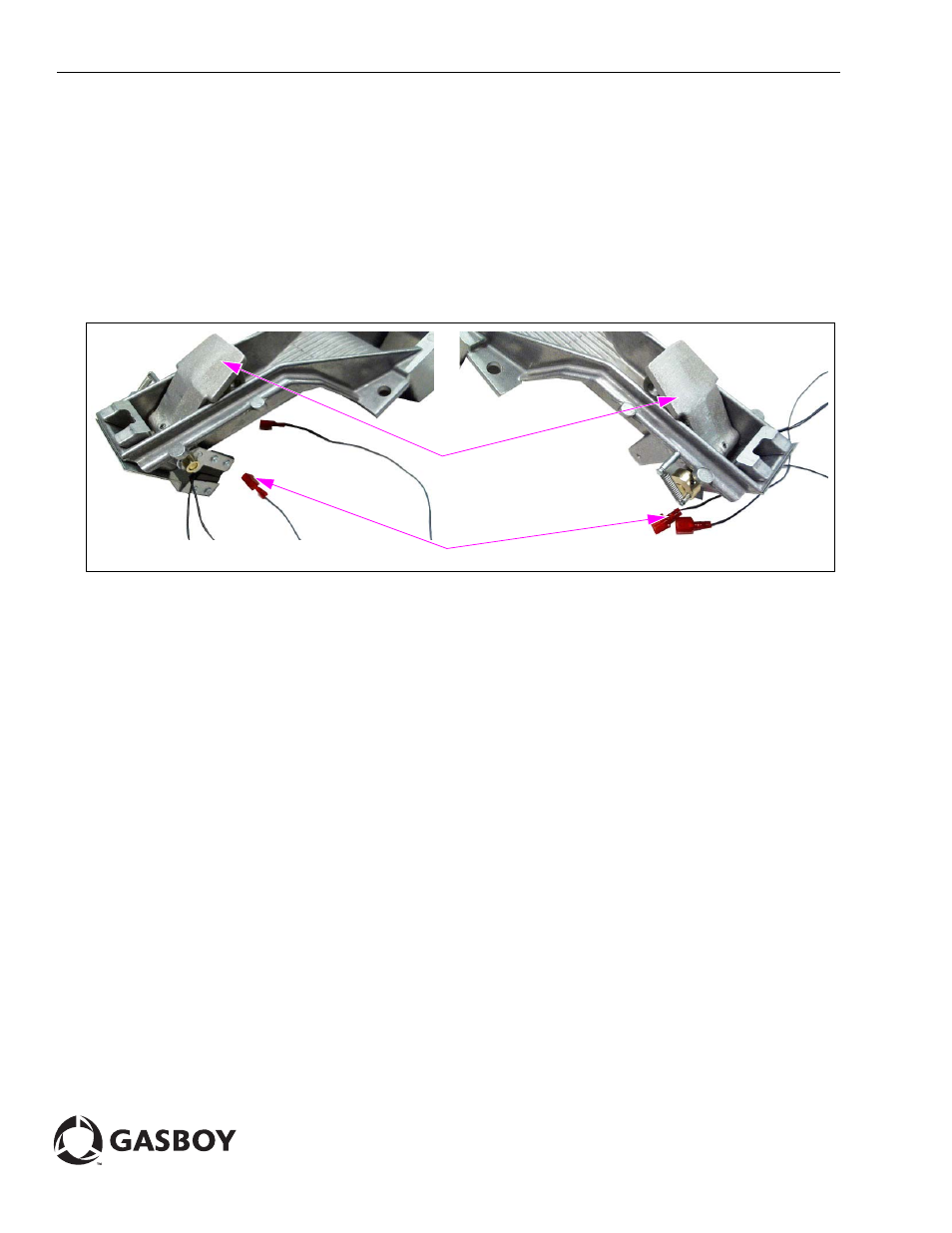

shows the completed magnet/reed switch installation.
Figure 11: Magnet/Reed Switch
(i)
(ii)
Faston Connectors
Boot Handle
7
Reinstall the boot to the pump/dispenser. Plug up the faston connectors.
Installing the Boot Switch Kit is now complete.
