MDE-4557 Atlas™ Hand Drive Kit M06874K001 Installation Instructions • July 2006 Page 5
Installing the Atlas Hand Drive Kit
Installing the Atlas Hand Drive Kit
Preparing for the Installation
1 Request permission from the manager/owner to remove power from the unit and then remove
power using normal procedures. Perform the lockout/tagout safety procedures.
2 Ensure that you have the proper kit for the model unit to be retrofitted.
3 Unlock and remove the lower panel door.
Installing the Atlas Hand Drive Kit

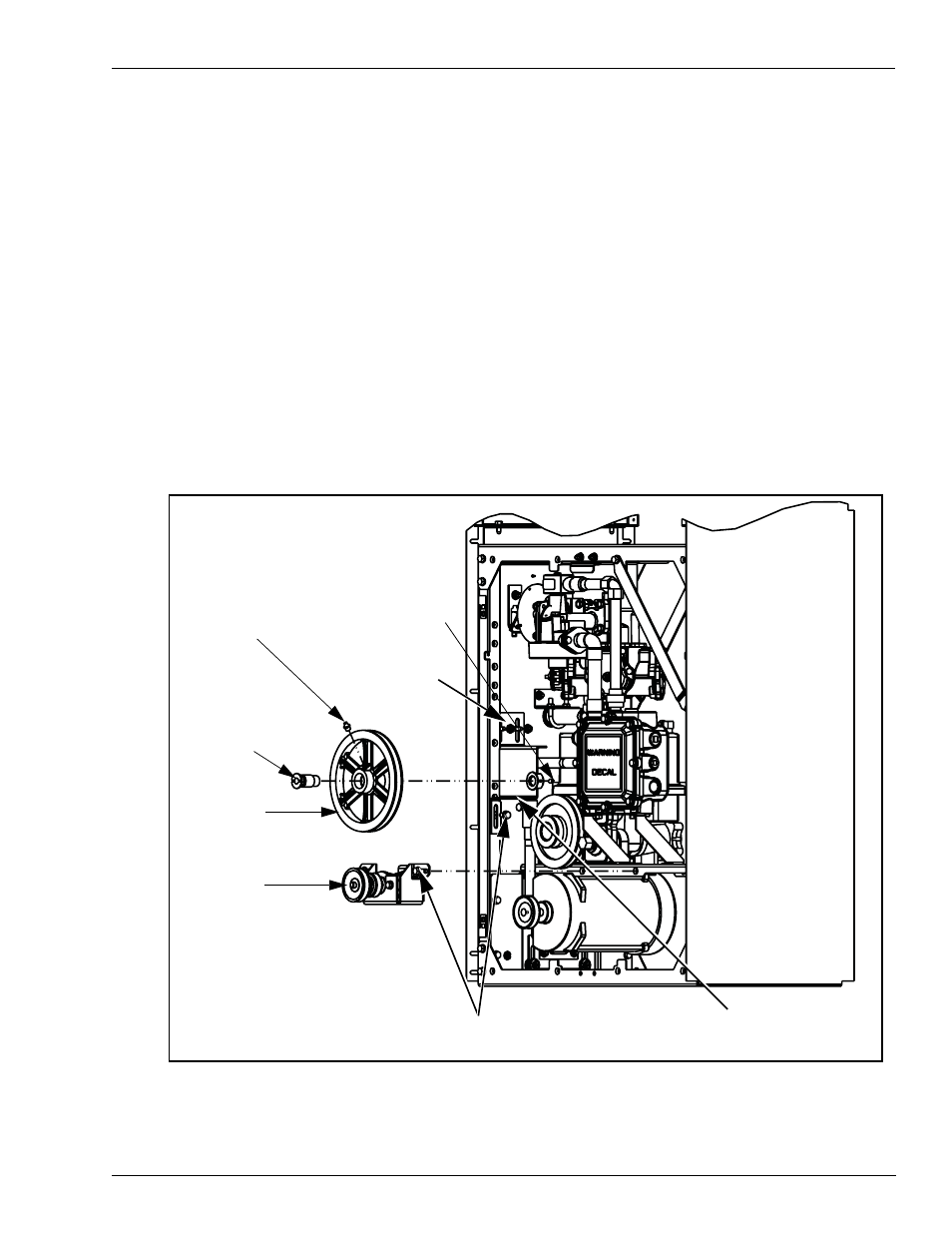

1 Attach the hand drive pulley bracket (M05567A001) to the frame using the existing studs in
the frame column. Secure the bracket with two M8 nuts (M00414B003) and one M8X18 self-
threading screw (M00417B009) and tighten.
Bracket, Hand Drive Pulley
(M05567A001)
Nut, Metric, Hex
Serrd) Flg (M8)
(M00414B003)
Screw, TF, Hex Whsr HD M8x18
(M00417B009)
Pulley, Hand Drive
(R13824-02)
Stud, Pulley
(K85561)
Set Screw 5/16-18x1/
2 Hex Skt Hd Cup Pnt
(K18719)
Assy, Shaft and
Hub Hand Drive
(M05767A001)
Hydraulic Fitting
(K76145-21)
2 Insert the hydraulic fitting (K76145-21) into the fitting port on the hand drive pulley
(Rl3824-02) and tighten.
