Gasboy 9800A Series - Manual (Page 109)

Parts List
03/07/03 103

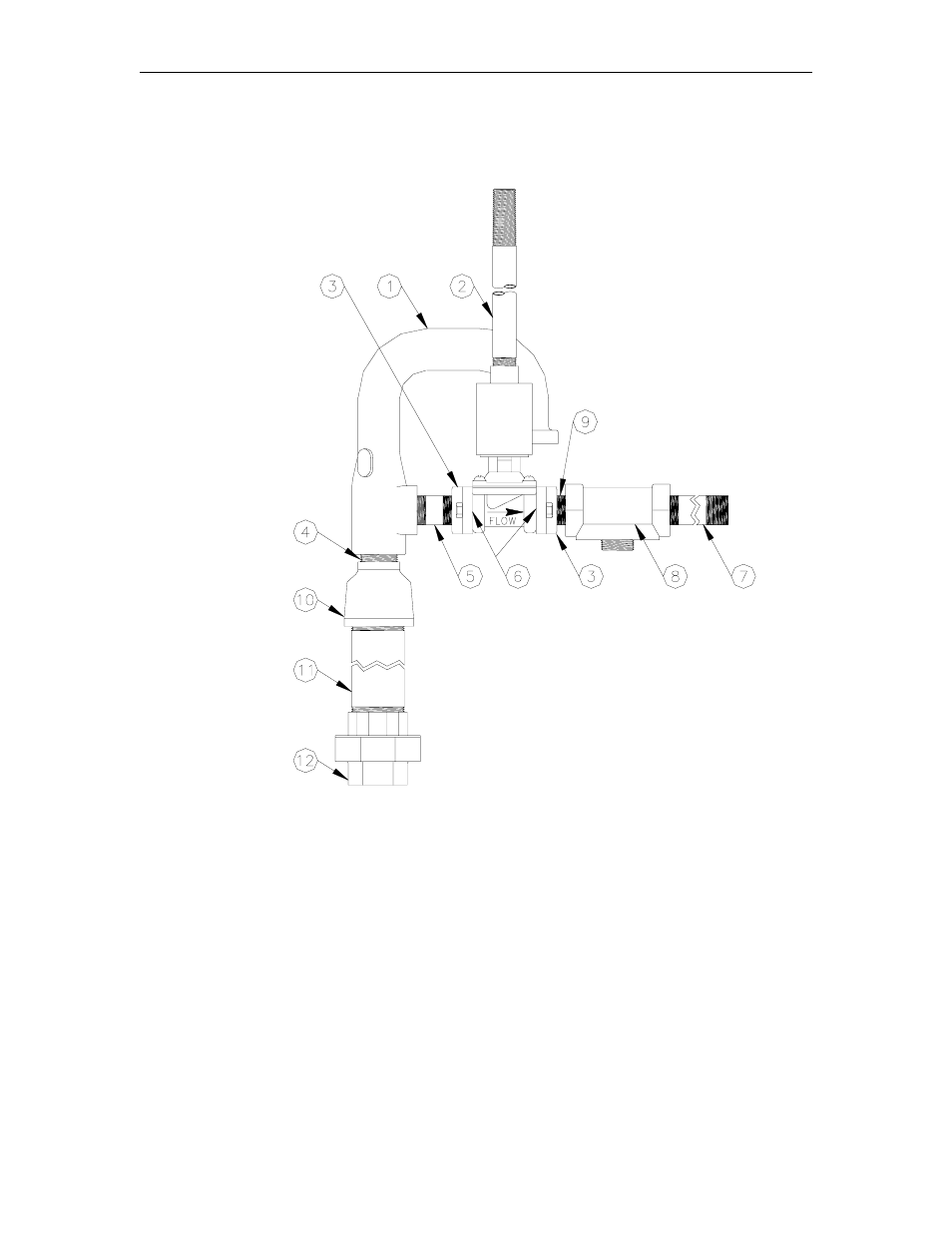

9852AX FILTER, SATELLITE DISCHARGE - 097309 115V, 097310 230V
9852AXTW FILTER, SATELLITE DISCHARGE - 097336 115V, 097337 230V
Item Part No. Description
1 003092 Discharge Casting, Mach, 3/4" NPT
2 070082 Conduit Valve Assy., 115V, units built prior to serial number 480214
070106 Conduit Valve Assy., 115V
070083 Conduit Valve Assy., 230V, units built prior to serial number 480214
070107 Conduit Valve Assy., 230V
3 026074 Meter Flange, 3/4" NPT
4 038035 Pipe TBE, 1 x 1-1/2 Close Nip
5 044476 Pipe TBE, 3/4 x 2-1/4
6 027004 Gasket
7 044080 Pipe TBE, 3/4 x 6, 9852AX
043980 Pipe TBE, 3/4 x 3-1/4, 9800AXTW
8 003043 Adapter, Filter, 3/4"
9 037990 Pipe TBE, 3/4 x 1-3/8 Close Nip
10 021984 Pipe Coupling, Reducer 1-1/2 x 1
11 044901 Pipe TBE 1-1/2 x 13-1/2
12 066385 Union, 1-1/2, #150 Stockham
