Foxconn ELA - Manual (Page 24)

17
2
17

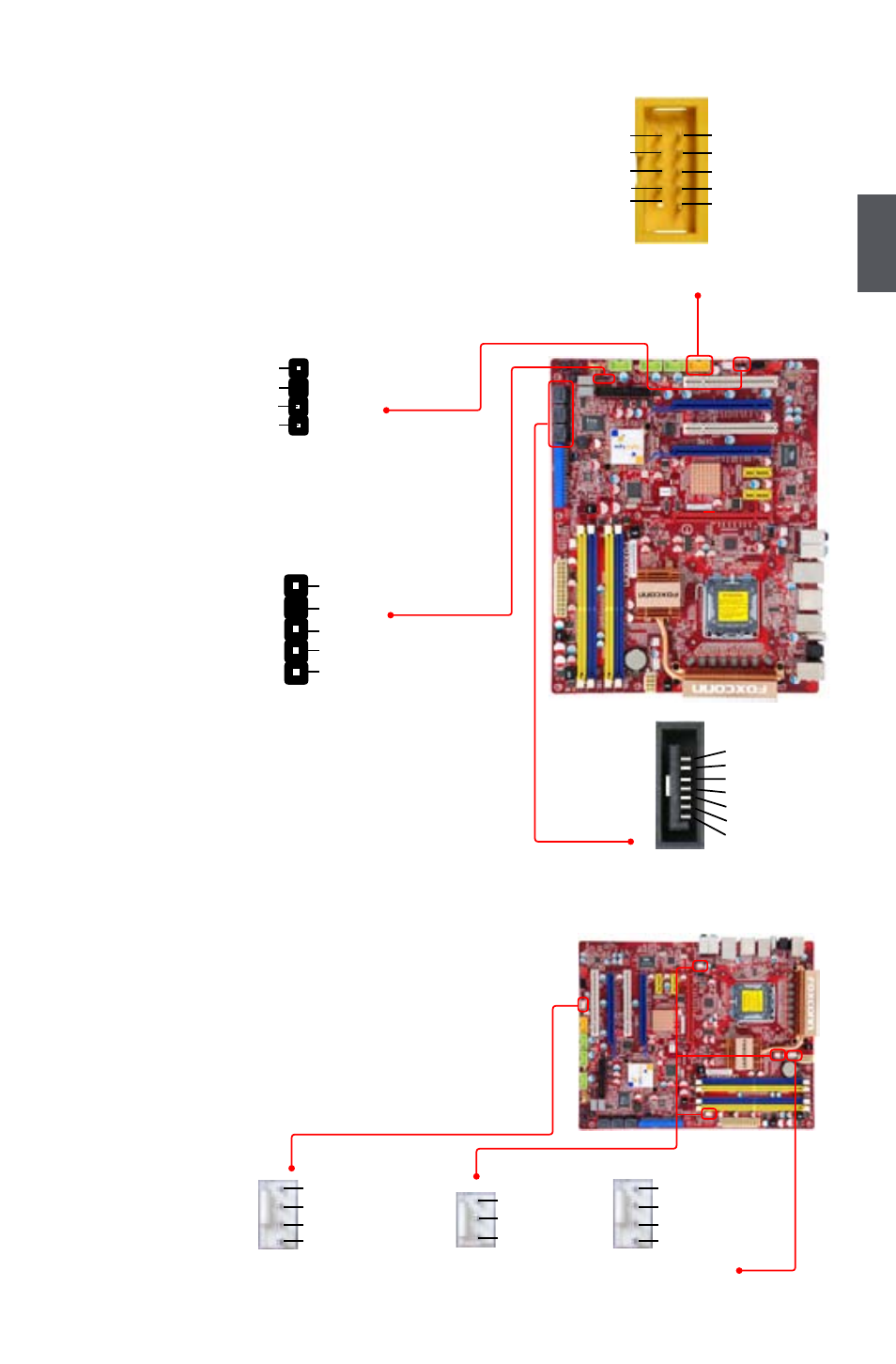

1394a Connector : f_1394
The 1394a expansion cable can be connected to either
the front (provided that the front panel of your chassis
is equipped with the appropriate interface) or real panel
of the chassis.
S/PDIf Connector : SPDIf_oUT
The connector is used for S/PDIF output.
IrDA Connector : IR
This connector supports infrared wireless transmitting
and receiving device.
Serial ATA Connectors : SATA_1/2/3/4/5/6
The Serial ATA connector is used to connect with SATA
Hard Disk or CD devices which support this feature.
The current Serial ATA II interface allows up to 300MB/s
data transfer rate.
Fan Connectors : CPU_FAN, SYS_FAN, FAN1/2/3
There are five main fan headers on this motherboard.
The fan speed can be controlled and monitored in “PC
Health Status” section of the BIOS Setup. These fans
can be automatically turned off after the system enters
S3, S4 and S5 sleeping states.
GND
+12V
TPA-
TPB-
GND
TPB+
+12V
GND
TPA+
EMPTY
1 2
10 9
F_1394
1
2
3
4
5 +5V
EMPTY
IRRX
GND
IRTX
IR
SATA_1/2/3/4/5/6
GND
TX+
TX-
GND
RX-
RX+
GND
1
CPU_FAN
GND
POWER
SENSE
CONTROL
1
SYS_FAN
GND
POWER
SENSE
CONTROL
1
SPDIF_OUT
+5V
EMPTY
SPDIF_OUT
GND
1
2
3
4
FAN_1/2/3
GND
+12V
NC 1
