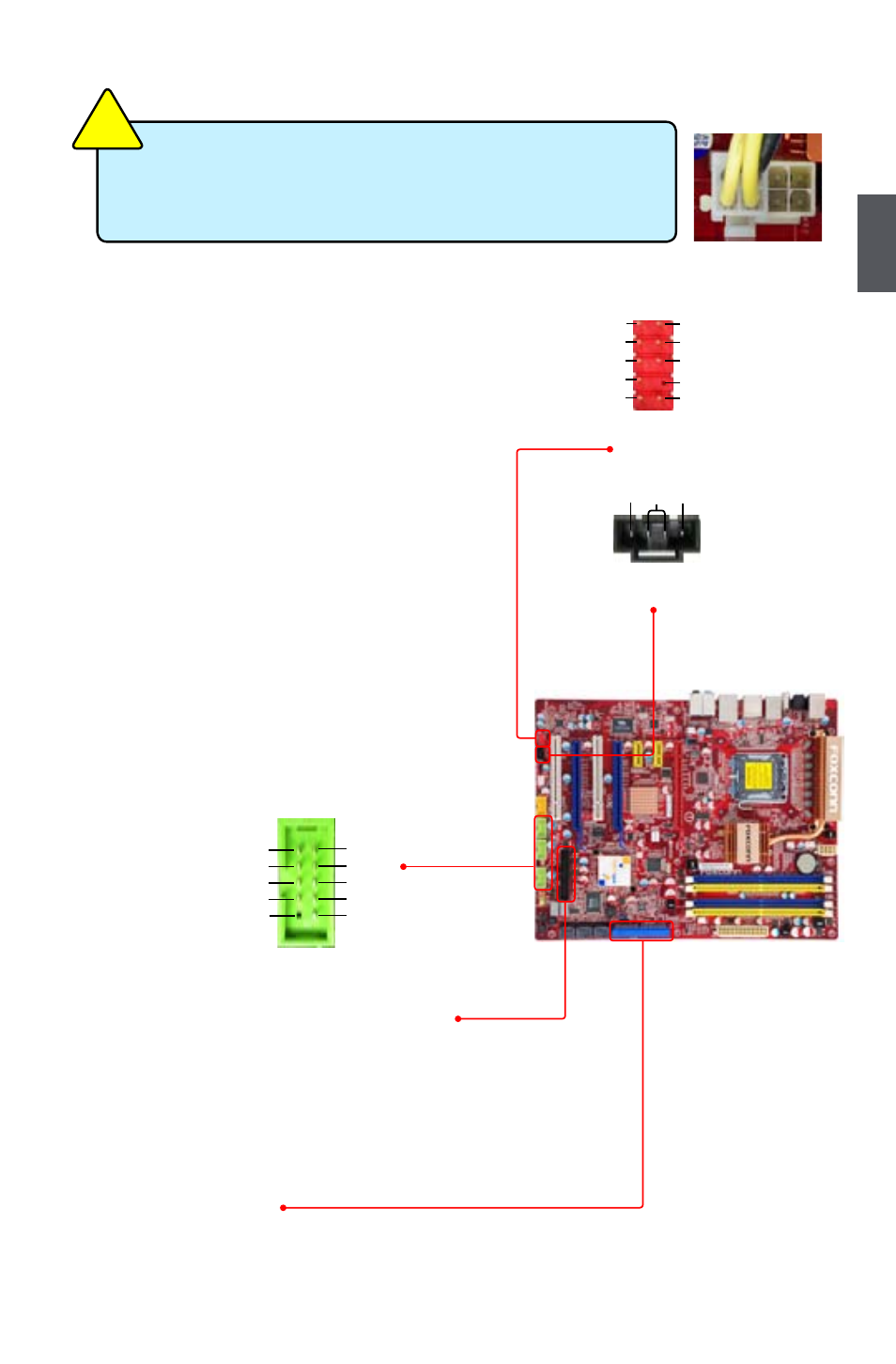

Audio Connector : f_AUDIo
The audio connector supports HD Audio standard. It
provides the Front Audio output choice.
Audio Connector : CD_IN
CD_IN is a Sony standard audio connector, it can be
connected to a CD/DVD-ROM drive through a CD/
DVD audio cable.
USb Connectors : f_USb1/2/3
In addition to the six USB ports on the rear panel, this
product also provides three 10-pin USB headers on its
motherboard. By connecting through USB cables with
them, user can quickly expand another six USB ports
on the front panel.
Floppy Disk Drive Connector : FLOPPY
This motherboard includes a standard floppy disk drive
(FDD) connector, supporting 360KB, 720KB, 1.2MB,
1.44MB, and 2.88MB FDDs.
IDE Connector : PIDE
With the provided Ultra DMA IDE ribbon cable, you
can connect to any IDE type of hard disk and CD/DVD
ROM/RW drive.
PORT1_L
PORT1_R
PORT2_L
SENSE_SEND
SENSE1_RETURN
PRESENCEJ
EMPTY
SENSE2_RETURN
AUD_GND
1 2
10 9
F_AUDIO
PORT2_R
Connect a 4-pin
power plug
We recommend you using an 8-pin ATX 12V power supply. If
you are using a 4-pin power supply, you need to align the ATX
power connector according to the picture on the right.
CA
UT
IO
N
!
CD_IN
CD_L GND CD_R
1
1 2
10 9
NC
GND
VCC
D+
D-
D+
GND
D-
VCC
EMPTY
F_USB 1/2/3
