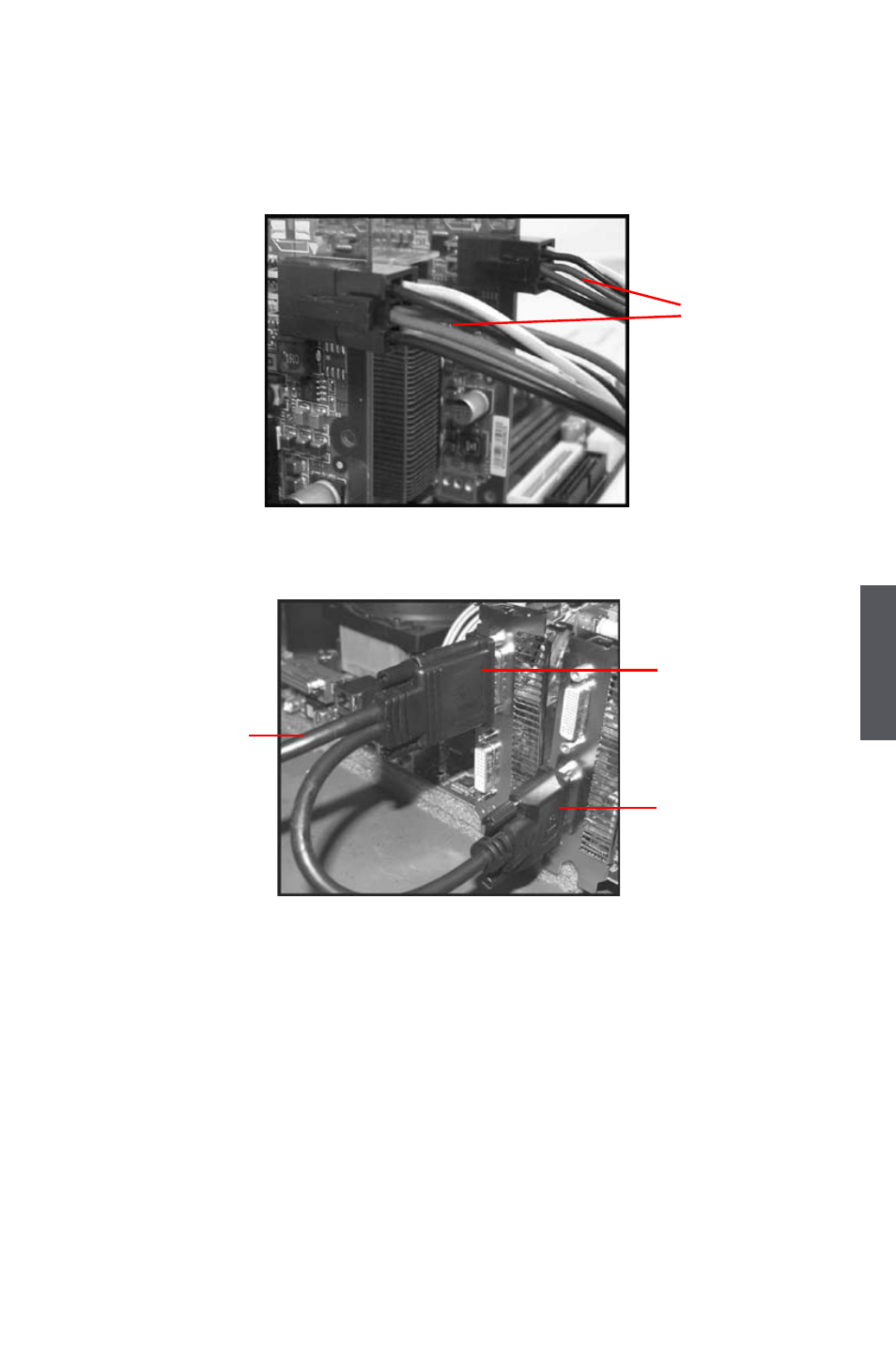

4. Connect an auxiliary power source from the power supply to the graphics card.

5. Connect the DMS-59 cable to the DVI monitor connector and two graphics cards

that you install as shown.

6. Power on your computer and get into OS (Windows

XP 32-bit with SP2 or

Windows

XP Professional 64-bit Edition).

7. Install Microsoft’s .NET Framework Version 1.1. Without it, The ATI Catalyst

Control Center can not launch properly.

8. Install the ATI graphics card drivers and restart your computer. Then you will find

“ATI Catalyst Control Center” on your desktop.

Power

Extension

Cable

Connect to monitor

Connect to slave

graphics card DVI

connector

Connect to master

graphics card DMS

connector
