46 MX-85/140 Maintenance and Spare Parts FCD LMAIM1341-00
4.8 Handwheel Worm Gear
Table 4.9 – Handwheel Worm Gear Assembly Parts List
Part Number Description Qty.
12-1 Handwheel Worm Gear 1
12-2 Ball Bearing 1
12-3 Quad Ring 1
12-4 O-ring 1

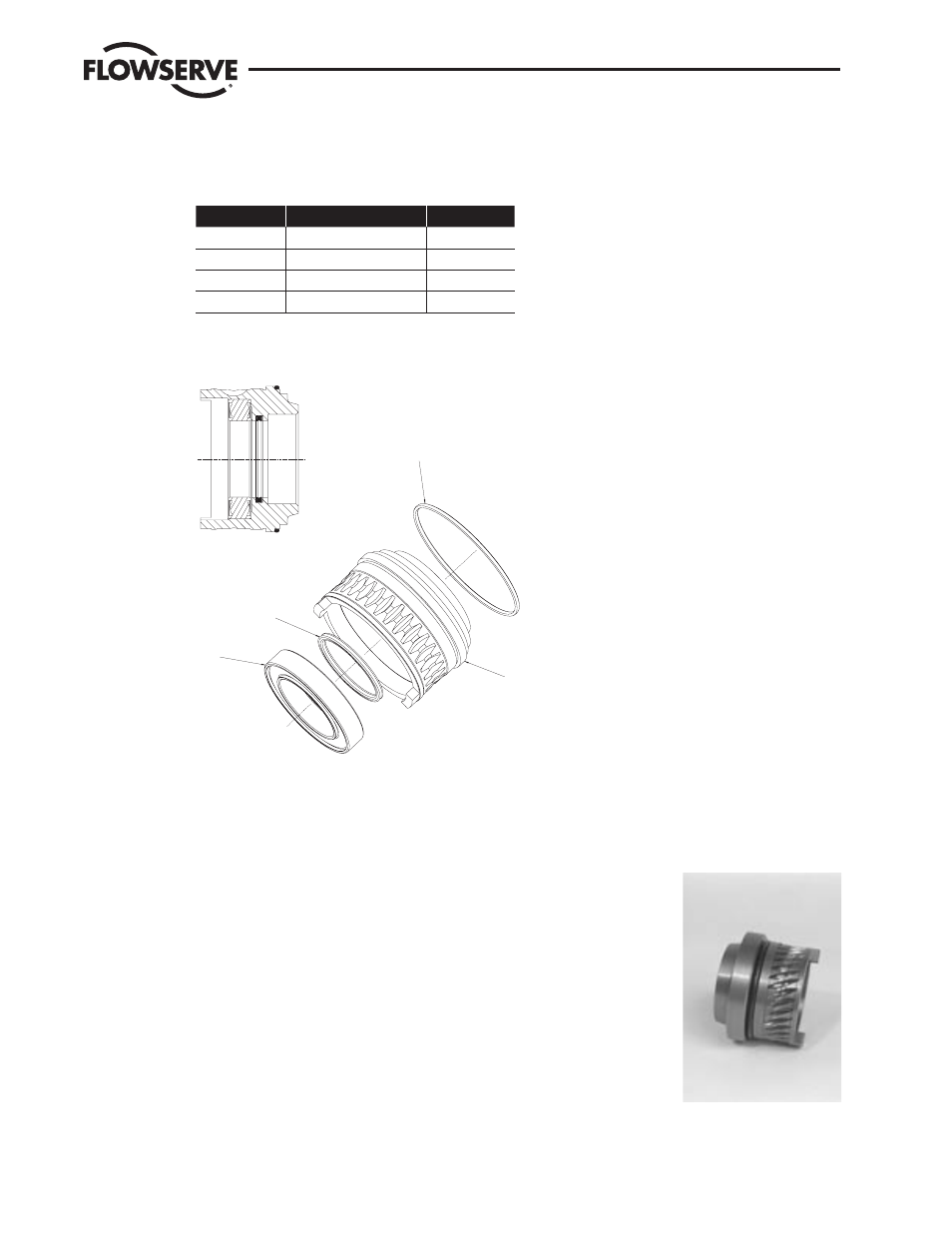

Figure 4.8 – Handwheel Worm Gear Assembly
����
����
����
����
4.8.1 Removal
First Remove
1. Side-mounted handwheel (subassembly #13).
(See Section 4.3.1.)
NOTE: Before removing handwheel and handwheel
worm gear assembly, turn handwheel approxi-
mately 45° to permit declutch lever to fully engage
therefore making handwheel assembly easy to
remove.
Handwheel Worm Gear
Assembly (12-1)
