10 MX-85/140 Maintenance and Spare Parts FCD LMAIM1341-00

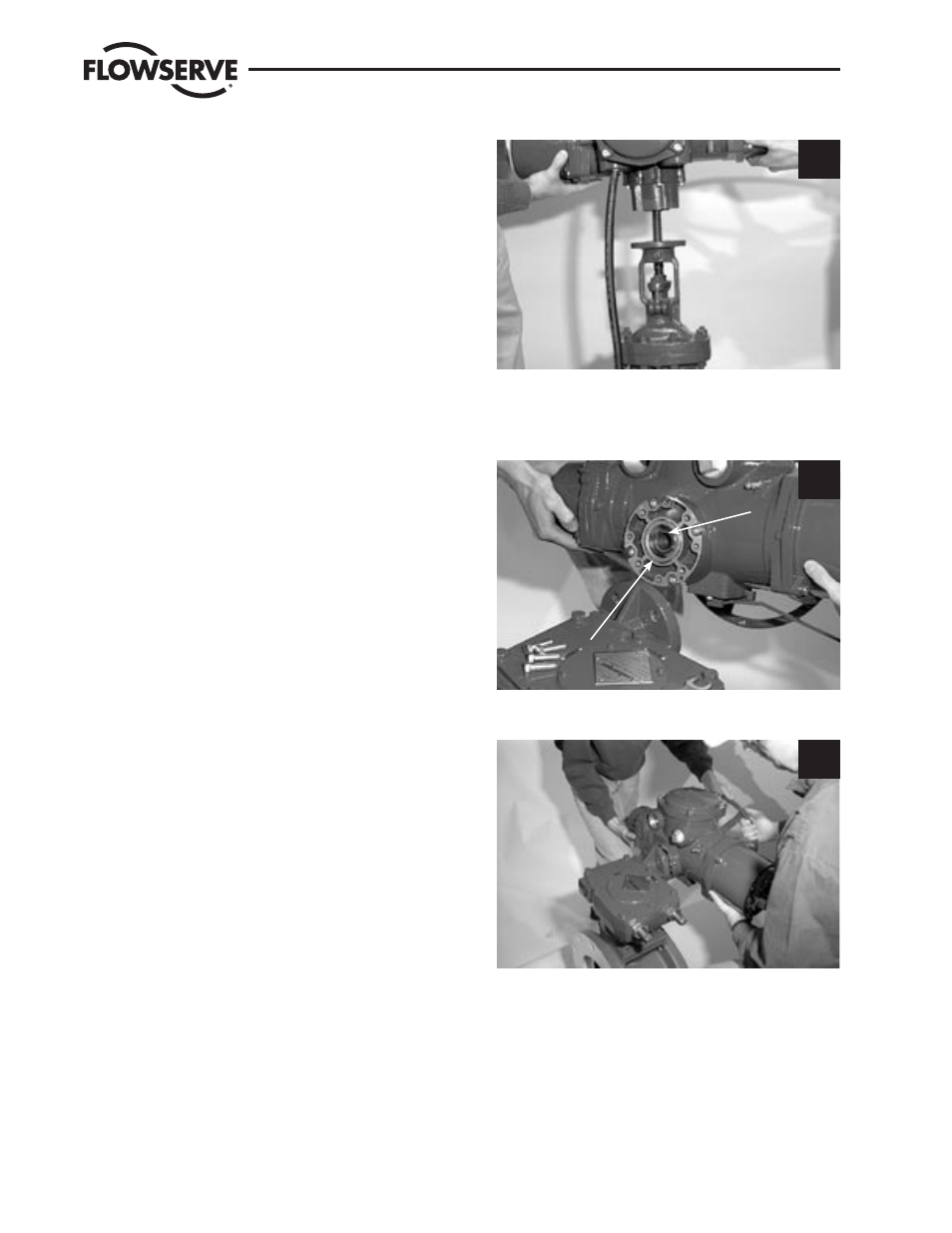

STEP 2
a WARNING: Potential high pressure vessel!
Before disassembling your actuator, ensure
that the valve or other actuated device is iso-
lated and is not under pressure.
Lift actuator from mounting adapter.
2
3.1.2 Remounting (Type B1/B4/B4E Base)
STEP 3
Ensure stem nut (#1-22) is secured inside actuator
drive sleeve with retaining ring (#1-23). Lower
actuator onto the mating component, making sure
to align stem nut key and keyway with mating
component.
3
1-23
1-22
STEP 4
Ensure that the actuator and mounting adapter
flange mating holes are aligned correctly.
4
