Preferred Storage Orientation
Your MX actuator should be stored with the motor and terminal compartment in the horizontal position to obtain
optimum service life.
2.2.3 Unit Weights
Table 2.2 – Unit weights
Unit lb. kg
MX-85 259 117
MX-140 300 136
NOTE: Weights include stem nut and lubricant.
2.3 Product Identification
2.3.1 Initial Inspection and Recording Suggestions
Upon receipt of the actuator, several steps should be initially followed to ensure condition of equipment and to establish
proper record keeping.
1. After removing the actuator from the shipping carton or skid, thoroughly examine it for any physical damage which
may have occurred during shipment. If you note any damage, immediately report the damage to the transport
company and call Limitorque for further assistance.
2. A nameplate with important information is attached to each actuator. Record the following information for use when
you need to contact Limitorque with any questions about your actuator:
• Unit type/size
• Limitorque order number
• Serial number

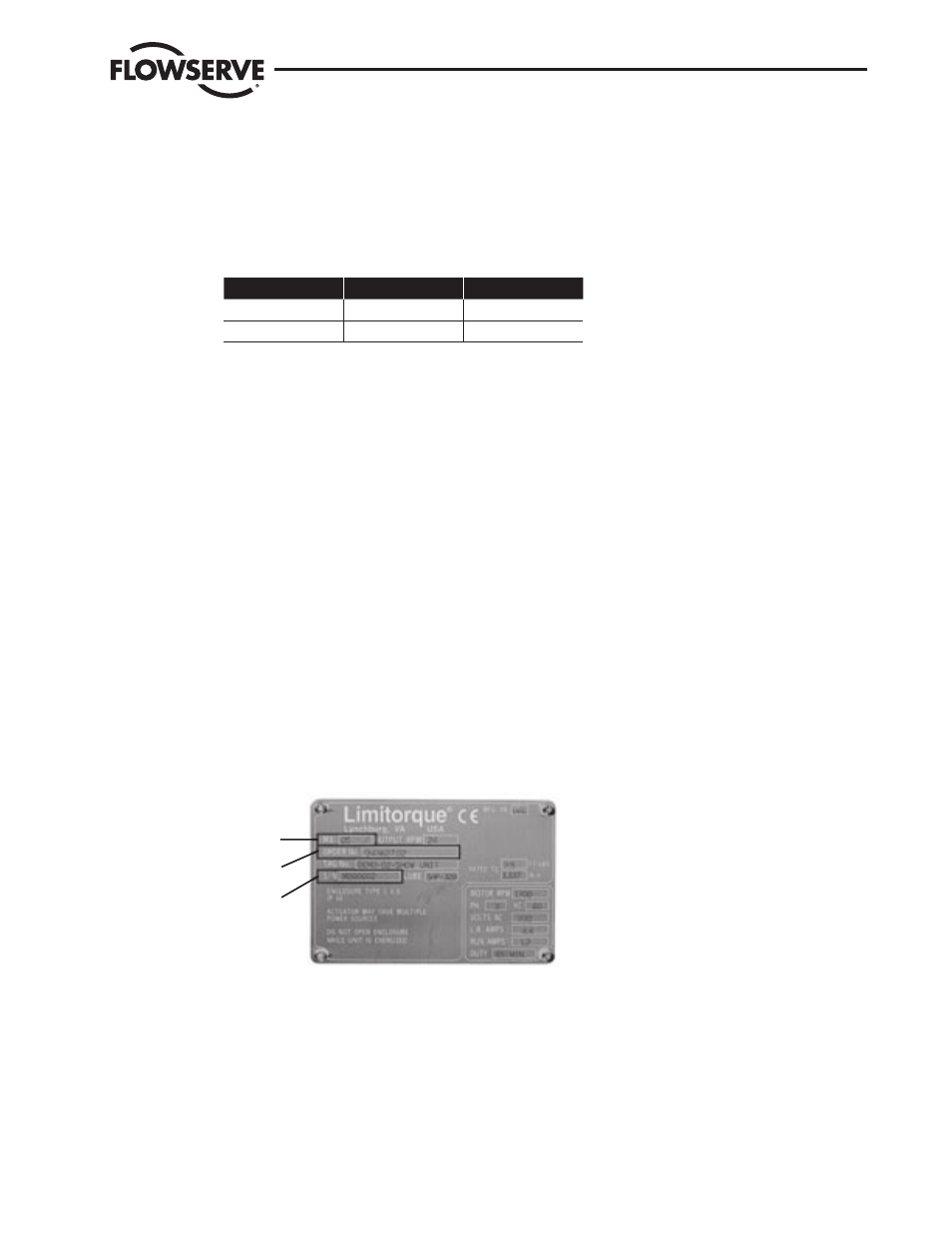

Figure 2.2 – Accutronix MX Nameplate
Unit
type/size
Limitorque
order no.
Serial
number
2.4 Maintenance
2.4.1 Recommended Maintenance
Under normal operating conditions, the MX is a maintenance-free actuator. Therefore, for normal applications, no
formal actuator maintenance is required; although visual inspection for oil leakage and excessive noise is recommended
every 1 million drive sleeve turns or every 3000 cycles. When conditions are severe, due to frequent operation or high
