Installing Upgrades 89
Removing the Heat Sink or Heat Sink/Blower Assembly
1 Small mini-tower computer: For both securing clips, press down on the
metal securing clip latches to release the clips from the retention base.
Then lift the clips out of the tabs on the retention base and away from
the heat sink.

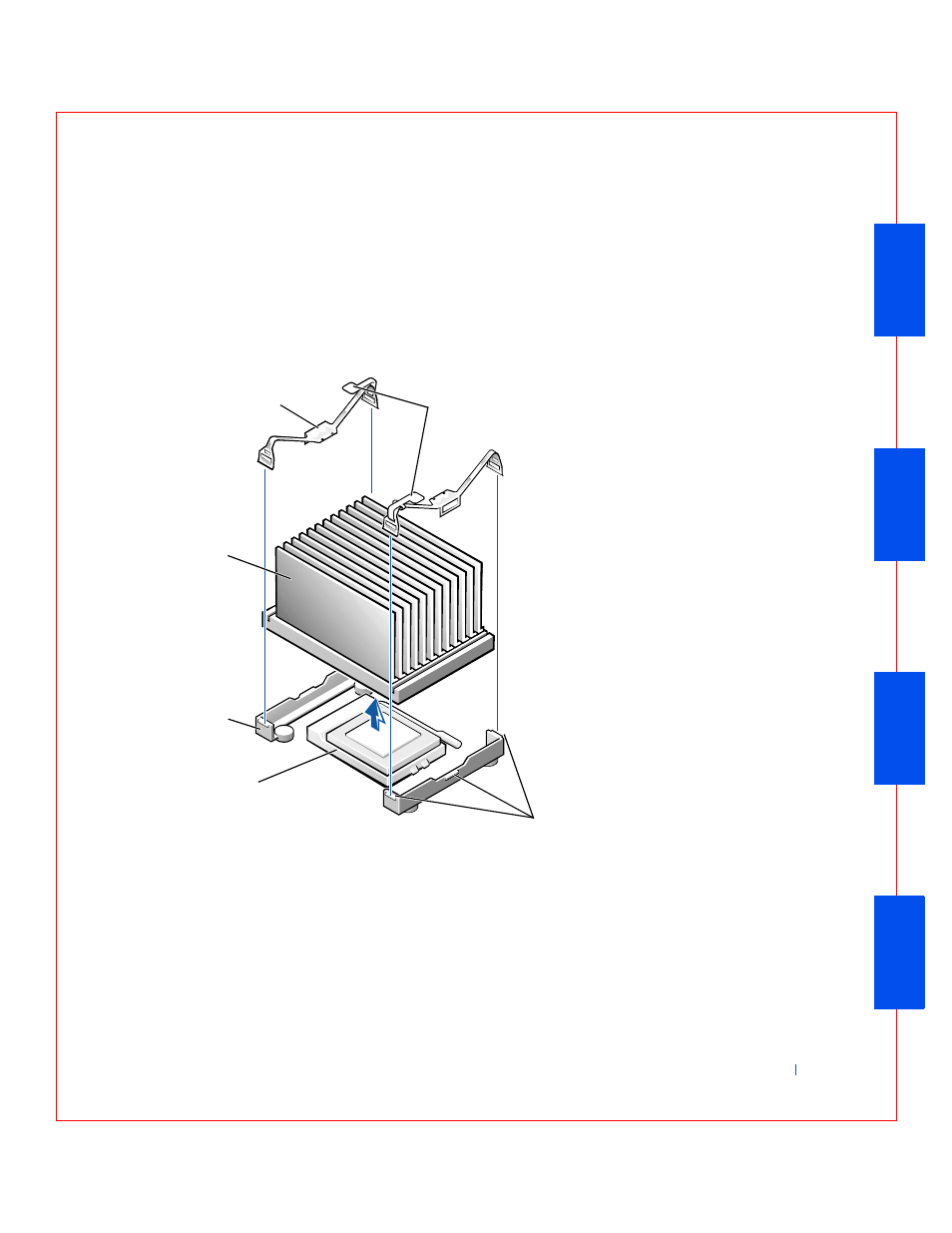

H e a t S i n k Re m o v a l — S m a l l M i n i -To w e r C o m p u t e r
1 latches (2)
2 securing clips (2)
3 heat sink
4 retention base
5 ZIF socket
6 tabs (3)
