Appendix C Auto EDS Generator Software
For correct display the drive that connected to the CME-DN01 in the DeviceNet management
tool, we can generate the EDS file for the drive by using the software “Auto EDS Generator”.
The operation steps are shown in the following.
Step1.
Please set drive’s parameters as following table.
VFD-E
Description
P09.01=2
19200 bits/second
P09.04=3
RTU mode, 8 bits, no parity and 2 stop bits

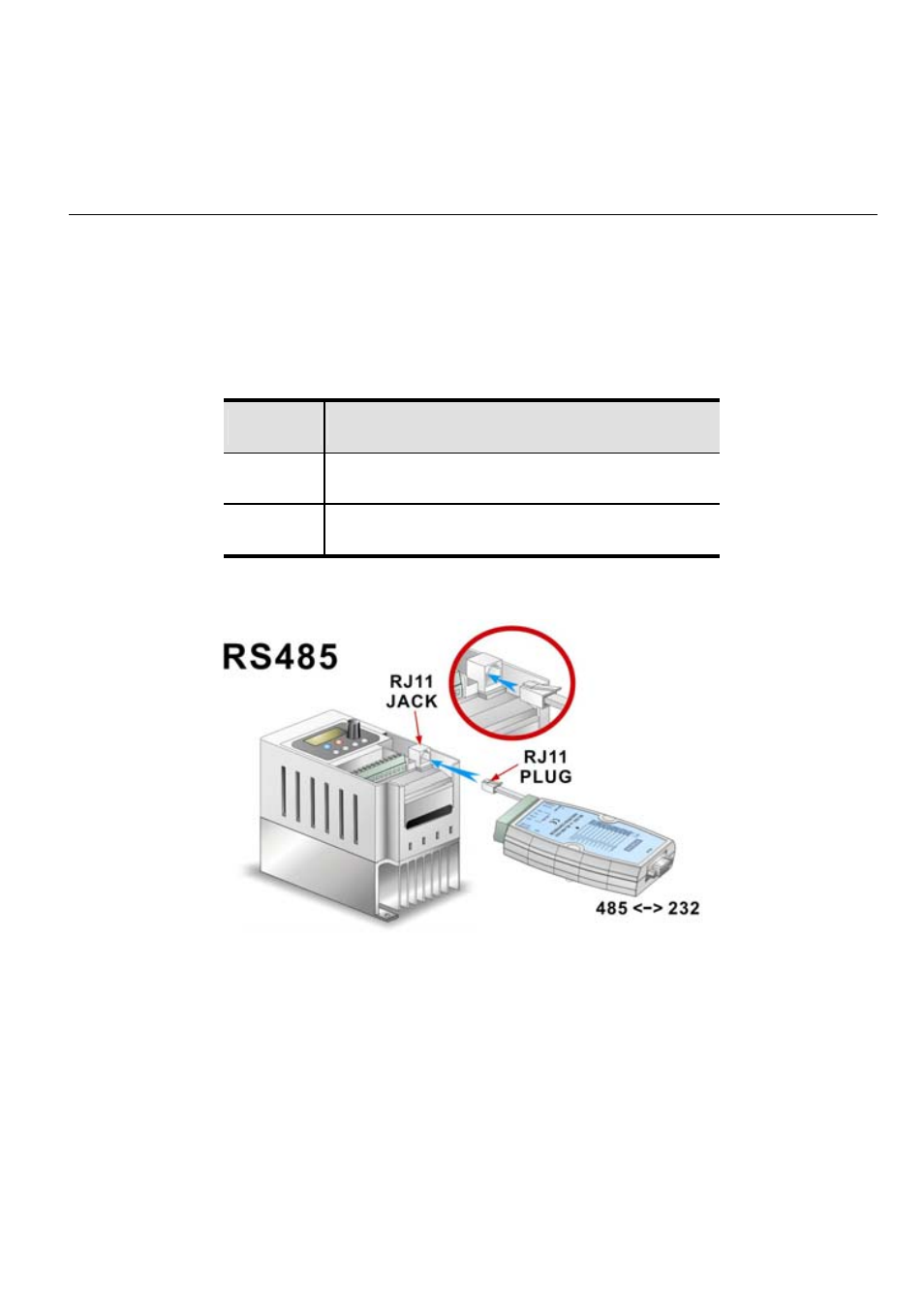

Hardware Connection
Step2.
Make sure that the hardware connection is correct and then execute the AutoEDS program.
Following screen will be displayed. After successful communication test, the AutoEDS will be
executed correctly.
