Chapter 3 Quick Start| CME-DN01
3-2
Revision October 2007, 2006PDD23000003
3.2 EDS File Description
Function: it is used in the DeviceNet management software tool, such as RSNetWorx
®
of RA. It
is used to distinguish which VFD type it connects and modify the VFD settings.
To use proper EDS file, please check the AC drives type and firmware version from the
parameter first. Then you can select the correct EDS file by the following name rule of EDS file.
Ex: DN_E_2p03_0.eds
| | |____EDS version
| |________VFD software version (V2.03)
|___________VFD-E series
3.3 MAC ID and Baud Rate

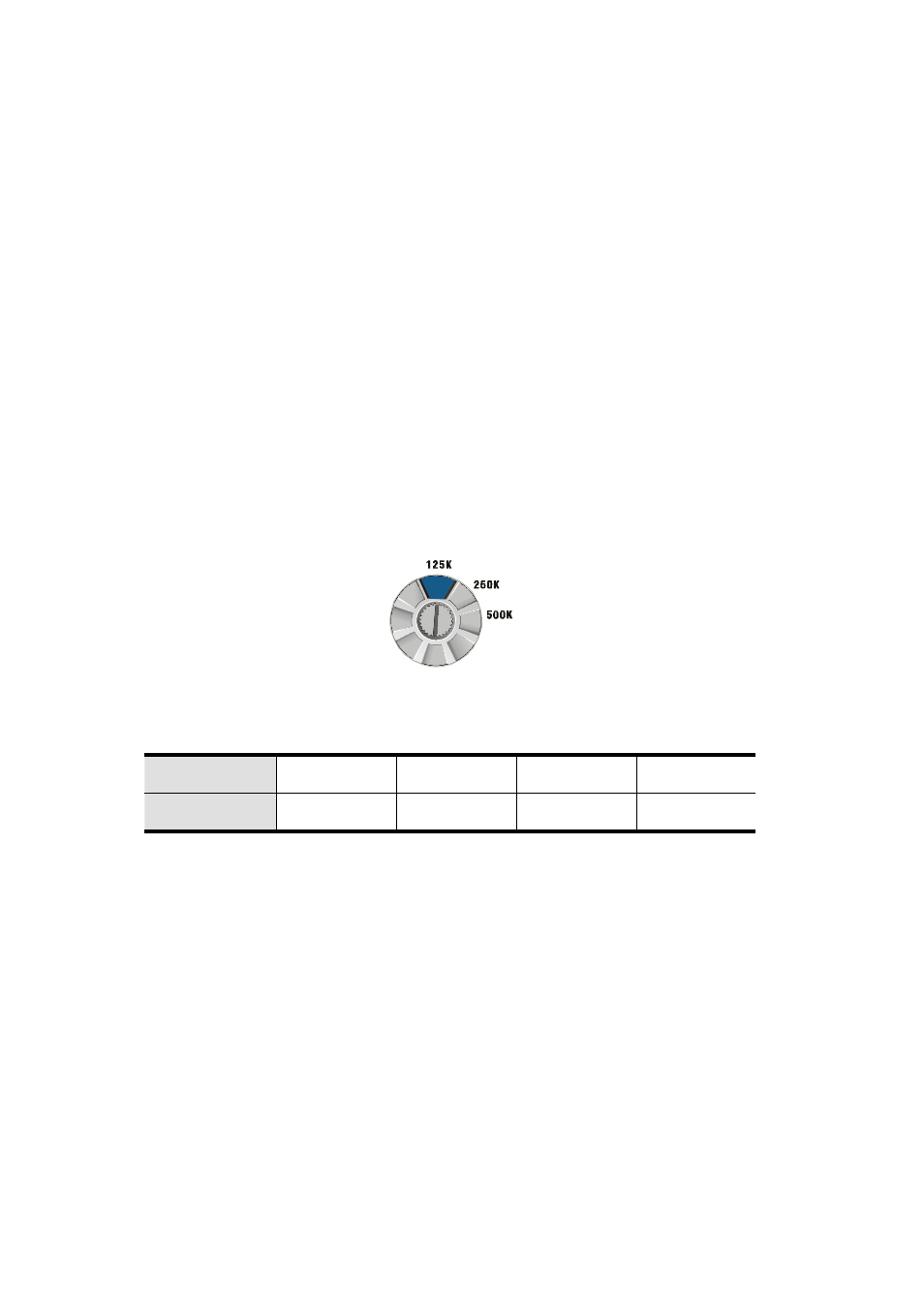

Setting Baud rate
BAUD
0
Switch value
0 1 2
Other
Baud Rate
125K 250K 500K
Not
Used
Set MAC Address: Using decimal data set the MAC address on DeviceNet network.
