Removing and Replacing the Chipper Knife


ROUTINELY CHECK THE CHIPPER KNIFE FOR SHARPNESS. USING A DULL KNIFE

WILL DECREASE PERFORMANCE AND CAUSE EXCESSIVE VIBRATION THAT WILL CAUSE DAMAGE TO THE
CHIPPER ENGINE. IF YOU WISH TO SHARPEN THE KNIFE, SEE THE NEXT PAGE FOR INSTRUCTIONS.

WHEN PERFORMING ANY MAINTENANCE, YOU MUST FIRST SHUT OFF THE

ENGINE, WAIT FIVE (5) MINUTES FOR PARTS TO COOL AND DISCONNECT THE SPARK PLUG WIRE.

Tools Needed:

(2) 1/2" Wrench or Socket

9/16" Wrench or Socket

3/16" Allen Wrench

Anti-Seize Compound

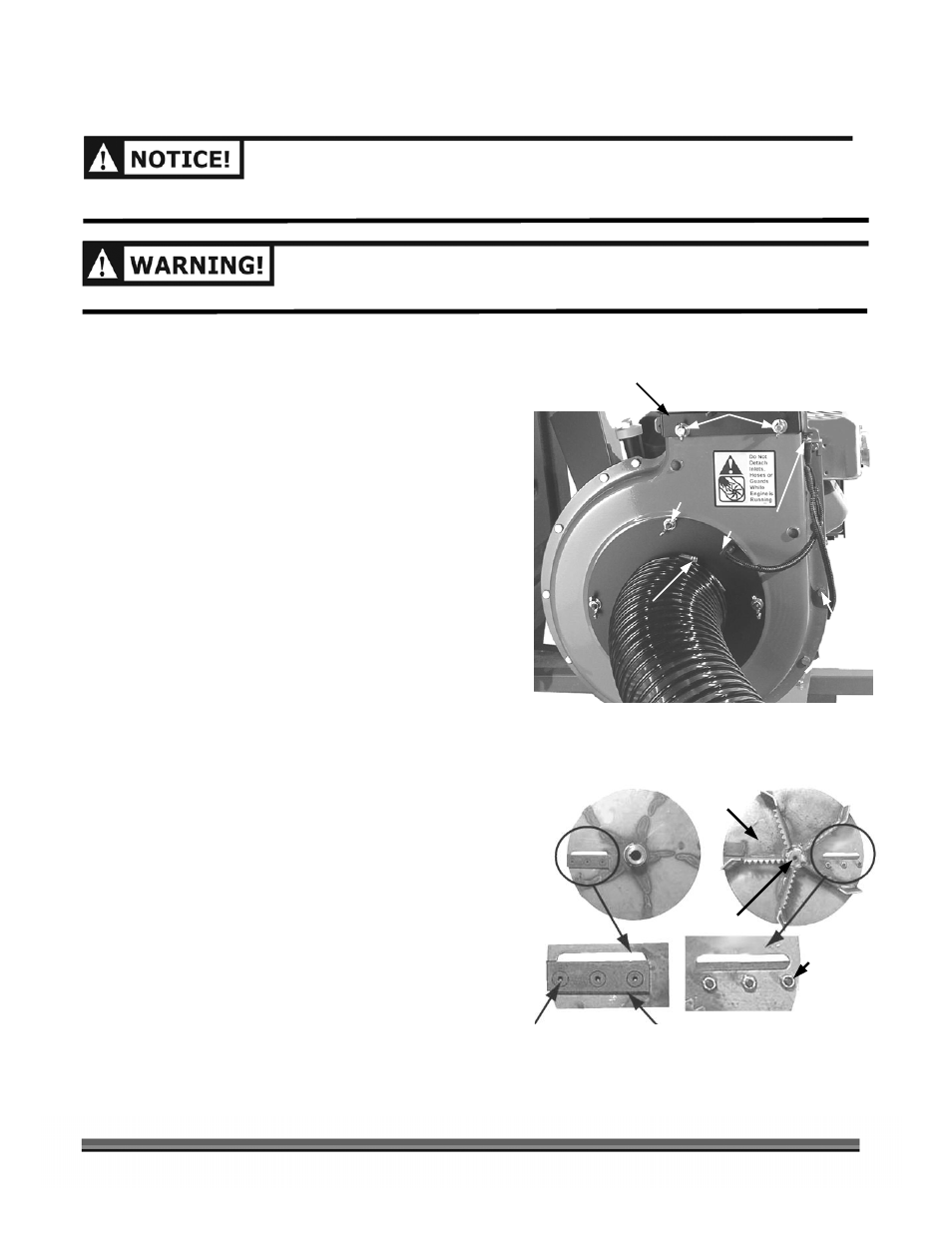

Figure 35

Figure 36

Nylon
Nut

Chipper Knife

Allen Head
Screw

Chipper
Impeller

Bolt

Wing Screw, 4 - places

Inlet Hose
Adapter

Bolt and
Nut,
12 - places

Blower
Cover
Plate

Back Front

Hose
Clamp

1. Disconnect the Blower Exit Elbow Assembly from

the Collector Box Hose (Figure 34).

2. Remove the Wing Nuts and Wing Screws to

disconnect the Inlet Hose Adapter and Blower Exit
Elbow Assembly from the Chipper/Blower unit
(Figure 35).

3. Using two (2) 1/2" Wrenches or Sockets, remove

the twelve (12) Bolts and Nuts retaining the Blower
Cover Plate (Figure 35) and remove the Plate from
the Blower Housing. The Chipper Impeller is now
exposed.

4. Using a 9/16" Wrench or Socket, remove the

Chipper Impeller retaining Bolt (Figure 36) from the
Engine shaft and slide the Impeller off the shaft. Be
sure to save the Key in the slotted shaft.

5. The Chipper Knife is attached to the Impeller with

three (3) Allen head screws and three (3) nylon Lock
Nuts (Figure 36). Using a 3/16" Allen Wrench and
1/2" Wrench, remove the old Chipper Knife by
removing the three (3) Screws and Nuts.

NOTE: Carefully observe the orientation of the Chipper

Knife edge and mounting holes when removing the
Knife.

6. Install a new or sharpened Chipper Knife and

Impeller in the reverse order making sure to install
the Key in the Engine shaft keyway. Coat the Engine
crankshaft with Anti-Seize Compound to protect
surfaces.

NOTE:

If the Safety Interlock Switch is not engaged

(Button fully depressed), the Engine will not start.
See page 18.

Wing Nut
4 pls.

Safety Interlock
Switches

Blower Exit Elbow
Assembly
