PREMIER LEAF and LAWN VACUUM
Connecting the DR LEAF and LAWN VACUUM to your Lawn Tractor
The following procedure includes the steps necessary for connecting the DR LEAF and LAWN VACUUM to
your lawn tractor.
1. Position your Lawn Tractor on level ground at a slight angle to the Two-Point Trailer Hitch on the
DR LEAF and LAWN VACUUM (Figure 13) and set the Parking Brake.
2. Lift the Trailer Hitch and position one end of the Hitch so that the Hitch Plate is in the opening of
the Trailer Hitch (Figure 13).
3. Align the closest hole in the Hitch Plate with the corresponding holes in the Trailer Hitch and insert
a Clevis Pin w/Rubber Washer and Hitch Clip (Figure 13).
4. Pivot the Trailer around so that the Trailer Hitch moves in toward the Hitch Plate; aligning the
remaining holes in the Hitch with the outermost hole on the other end of the Hitch Plate (Figure 13).
5. Insert a second Clevis Pin and Hitch Clip.

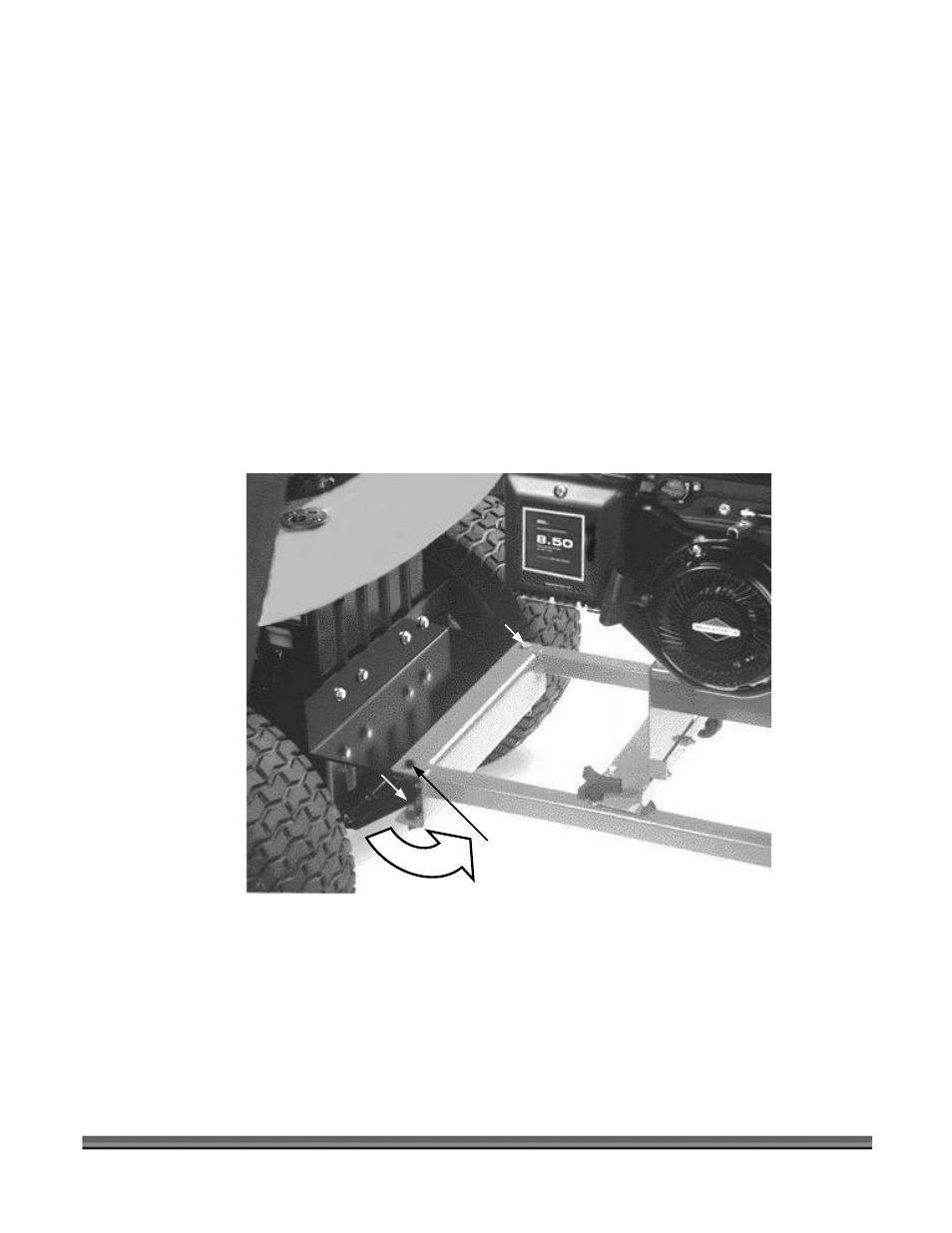

Figure 13
2nd Clevis Pin and
Hitch Clip here
Opening
1st Clevis Pin and Hitch
Clip here
Trailer
Hitch Hitch Plate
