Lubrication – DR Power Tow-Behind 8.00 Premier (Pre-August 2010) User Manual
Page 40
36 DR
®
PREMIER LEAF and LAWN VACUUM
Lubrication
Your DR LEAF and LAWN VACUUM was lubricated at the Factory. The operator needs to provide engine
lubrication and lubricate the caster wheel spindles and axles periodically.
Supplies Needed:
•
Grease gun with #2 Lithium Grease
Lubricate each Caster Wheel Spindle and Axle with #2 Lithium grease using a grease gun on the fittings
(Figure 29).

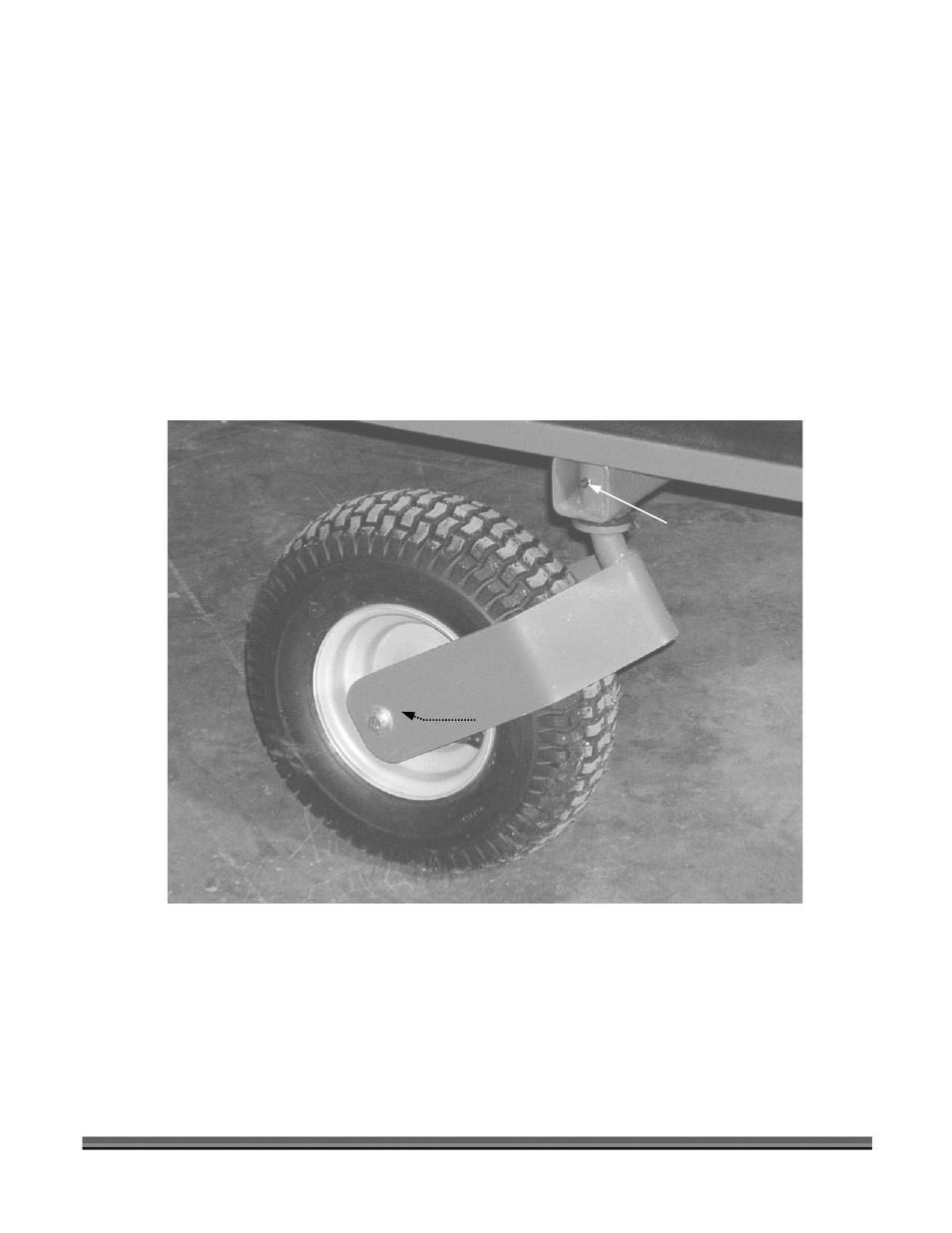

Figure 29
Grease Fitting
Grease Fitting
on Axle behind
Support.
