4. We have supplied both a 7" to 6" and 8" to 6" Hose Adapter. Determine which best fits your Lawn
Deck Adapter.
5. Slip the Hose Adapter over the cut end of your Lawn Deck Adapter, until they make contact.
6. Position the assembly beside your Tractor and rotate Hose Adapter so that the Hose Latches will be
located with one on top and one on the bottom of the Adapter (Figure 15).
7. Drill a 3/8" hole through the Hose Adapter and Lawn Deck Adapter tube at a predrilled hole in the
Hose Adapter (Figure 15) and secure the Adapter in place with a 5/16" Bolt, Nut and Washer by
inserting the Bolt through the drilled hole from the inside the Adapter Tube.
8. Attach the Washer and Nut on the outside of the Adapter Tube, thus preventing debris from
collecting on the retaining hardware (Figure 15).
9. Repeat Steps 7 and 8 two (2) more times as shown around the Hose Adapter (Figure 15).
NOTE: Two holes are provided in the Hose Adapter as guides. Drill the third hole on top of the Hose
Adapter for ease of assembly.
10. Tighten the Nuts with a 1/2" Wrench or Socket. Be careful not to over tighten and damage the
Hose Adapter.
11. Re-install the Lawn Deck Adapter.

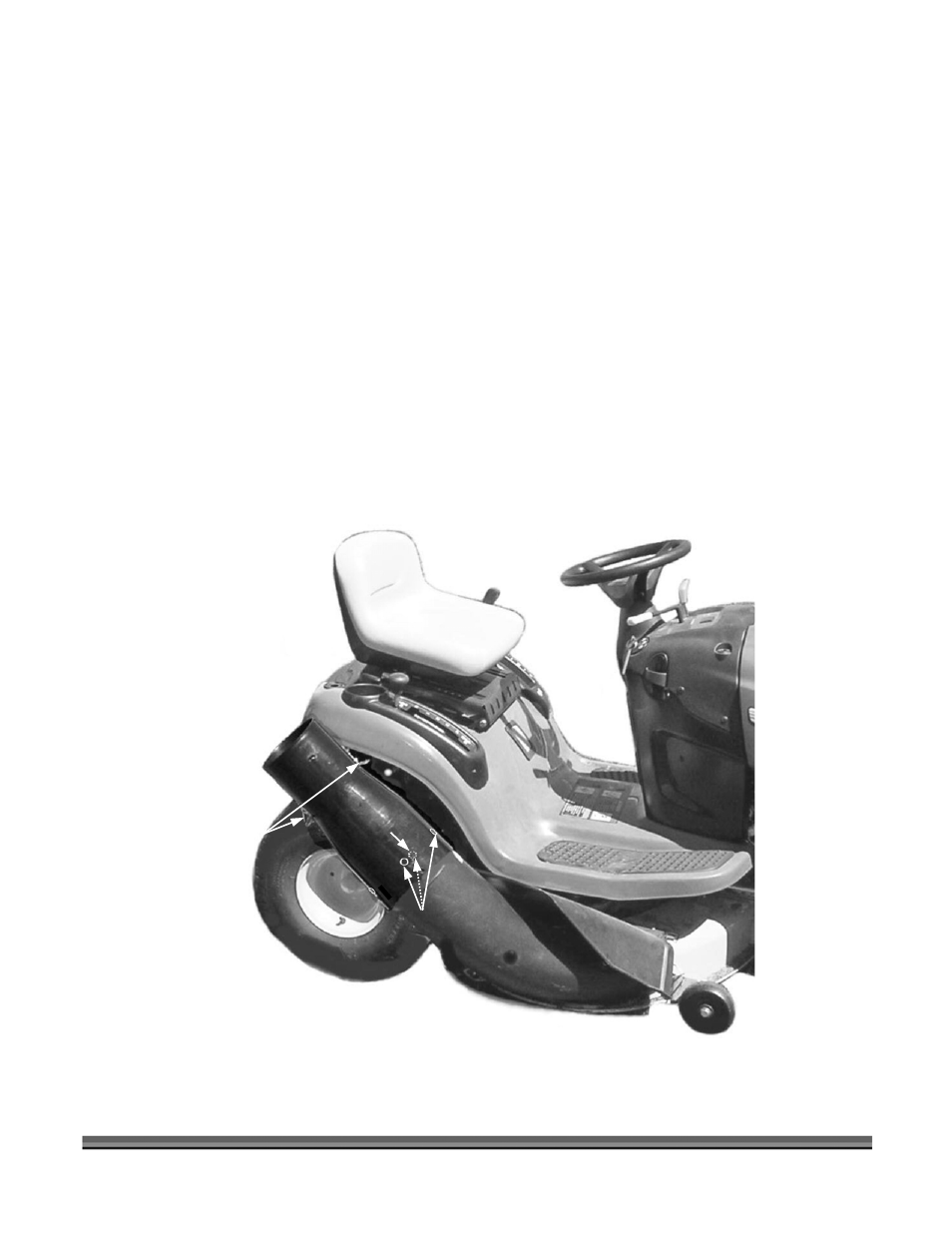

Figure 15
Drill here
Hose Latches
Hose
Adapter
Far Side
