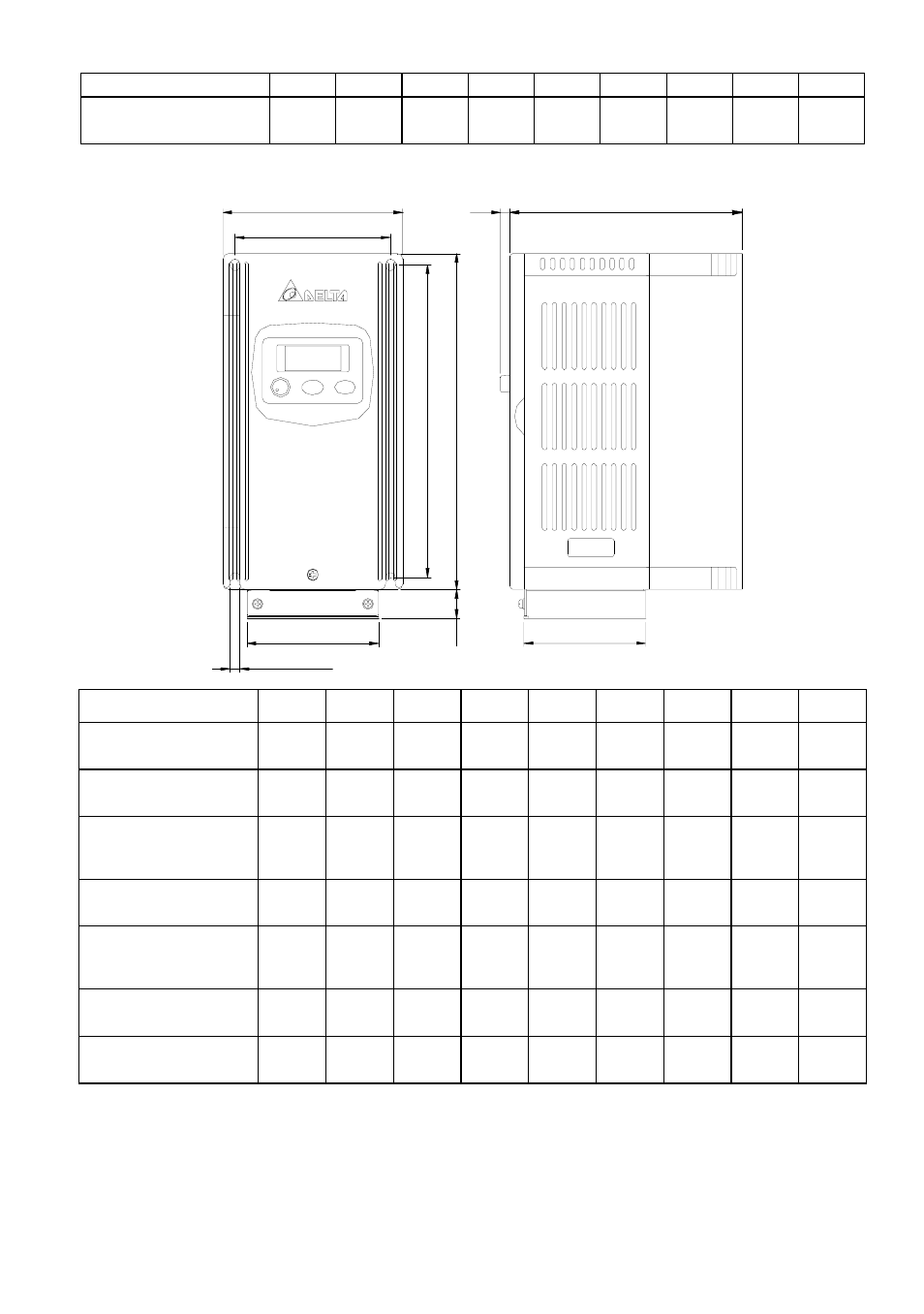

Model Name A B C D E F G H I
007S43B
85.0
[3.35]
148.0
[5.83] 126.0
[4.96] 74.0
[2.92]
132.2
[5.21] 5.8
[0.23]
73.0
[2.88]
16.0
[0.63]
67.8
[2.67]
Dimensions are in mm [inch]
H
G I
A
D
B E
C F
5.5 [0.22]
Model Name A B C D E F G H I
015S21A/23A
100.0
[3.94]
186.0
[7.33]
143.0
[5.63]
86.5
[3.41]
173.0
[6.82]
5.4
[0.21]
- - -
015S21D/21E,
022S21D/21E/23D 100.0
[3.94]
186.0
[7.33]
129.3
[5.09]
86.5
[3.41]
173.0
[6.82]
5.4
[0.21]
- - -
007S11A,
015S43A/43E,
022S23A/43A/43E
100.0
[3.94]
186.0
[7.33]
129.0
[5.08]
86.5
[3.41]
173.0
[6.82]
5.4
[0.21]
- - -
022S21A
118.0
[4.65]
220.0
[8.67]
130.9
[5.16]
105.5
[4.16]
207.0
[8.16]
4.4
[0.17]
- - -
007S11B,
015S21B/23B/43B,
022S23B/43B
100.0
[3.94]
186.0
[7.33]
129.0
[5.08]
86.5
[3.41]
173.0
[6.82]
5.4
[0.21]
73.0
[2.88]
16.0
[2.67]
67.8
[2.67]
022S21B
118.0
[4.65]
220.0
[8.67]
130.9
[5.16]
105.5
[4.16]
207.0
[8.16]
4.4
[0.17]
73.0
[2.88]
16.0
[2.67]
67.8
[2.67]
015S21U/43U
022S21U/43U 100.0
[3.94]
186.0
[7.33]
129.3
[5.09]
86.5
[3.41]
173.0
[6.82]
5.4
[0.21]
73.0
[2.88]
16.0
[2.67]
67.8
[2.67]
