Mechanical Installation 7
2.3 Lifting a Display Section
Maintain a 90-degree angle between the cabinet and lifting method to retain the cabinet’s
structural integrity.
If damage occurs due to improper lifting procedures, the warranty will be void.
General Lifting Notes:
Lift the display into position on the support structure using a lifting bar and all eyebolts as
shown in Figure 7.
Do not attempt to permanently support the display
by the eyebolts.
Do not lift more than one section at a time.
Mount the bottom section(s) first.
After installation is complete, carefully inspect the
display for any holes that may allow water to seep
into the display and seal them with silicone.
If the eyebolts on the top of the display were
removed, plug the holes with bolts and the rubber-
sealing washer that was removed with the eyebolt.
Refer to Section 3: for power routing and to the
appropriate communication manual for signal connections to the display.

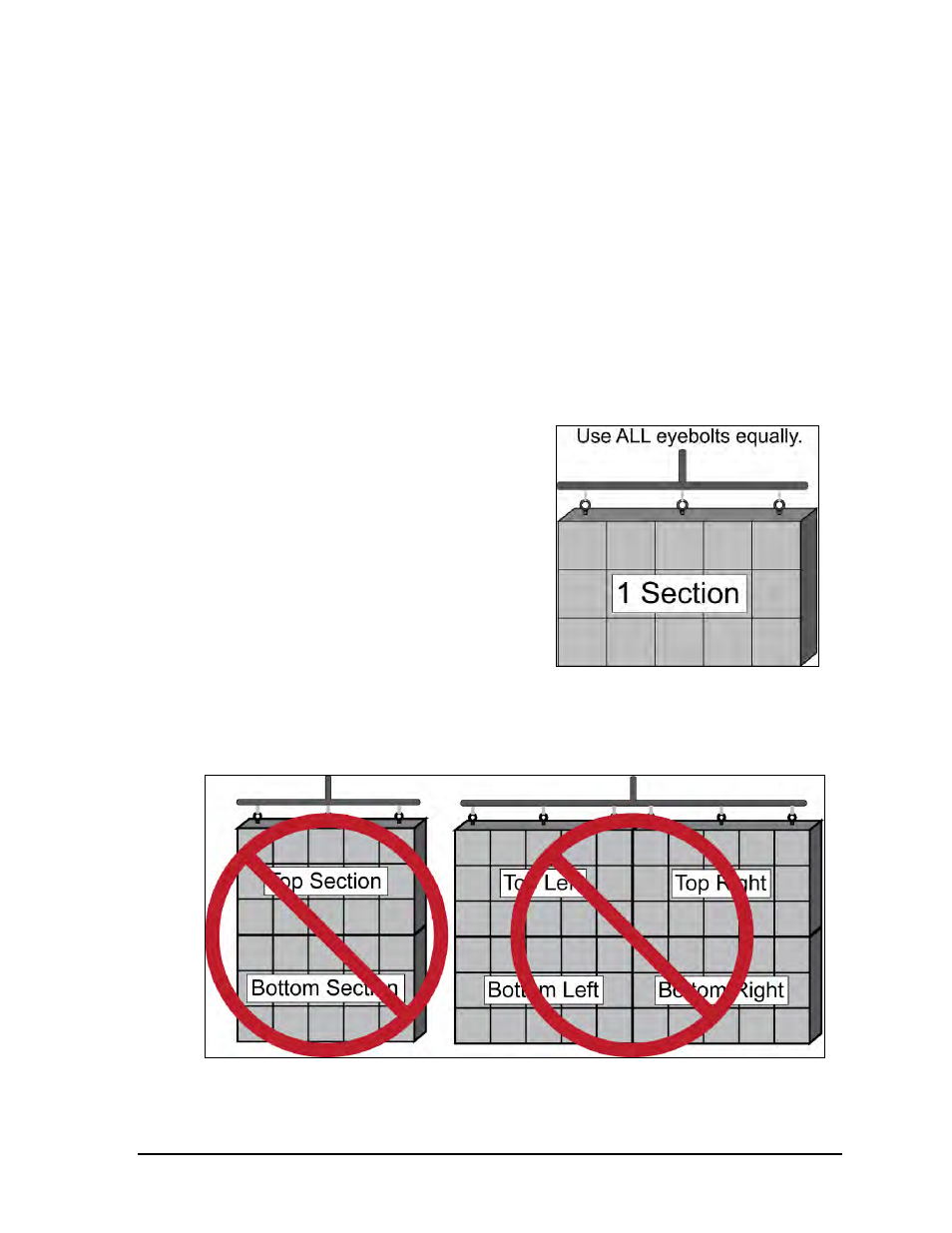

Figure 7: Lifting the Display
Figure 8: Incorrect Lifting
