Section 4: Control System Overview
This section describes the DataMaster 100 and includes the following subsections:
DM-100 Controller Overview identifies the control equipment, lists replacement
parts, and describes how the DM-100 operates the displays.
Control System Overview reviews the main options for display control.
4.1 DataMaster 100 Overview
Reference Drawing:
Riser Diagram, Outdoor Wire Control .......................... Drawing A-164988
The DataMaster
100 Series controller,
shown in Figure 11, is a hand-held
controller designed to operate
Daktronics LED Data Master
displays.
This lightweight controller, 6 1 /
4
" high
by 4 1 /
4
" wide, is encased in ABS
plastic, making it a durable and
convenient control option. The
console’s liquid crystal display (LCD)
guides the user through the operation of
the system.
The DataMaster 100, identified by the
series number DM-100, can be
configured to display gasoline price,
motel rates, lottery jackpots, parking
garage information, and time and
temperature data. Refer to Drawing
A-164988 for information on possible
control options and connection
procedures.
For details on configuring the DataMaster to operate a display, refer to Section 5:
Lottery Display Operation.
Note: When your carrier delivers your Daktronics order, open the packages and
inspect for shipping damage such as rattles and dents. See that all equipment is
included as shown on the packing slip. Immediately report any deficiencies to
Daktronics. Save all packing materials for shipping if warranty repair or exchange is
needed.

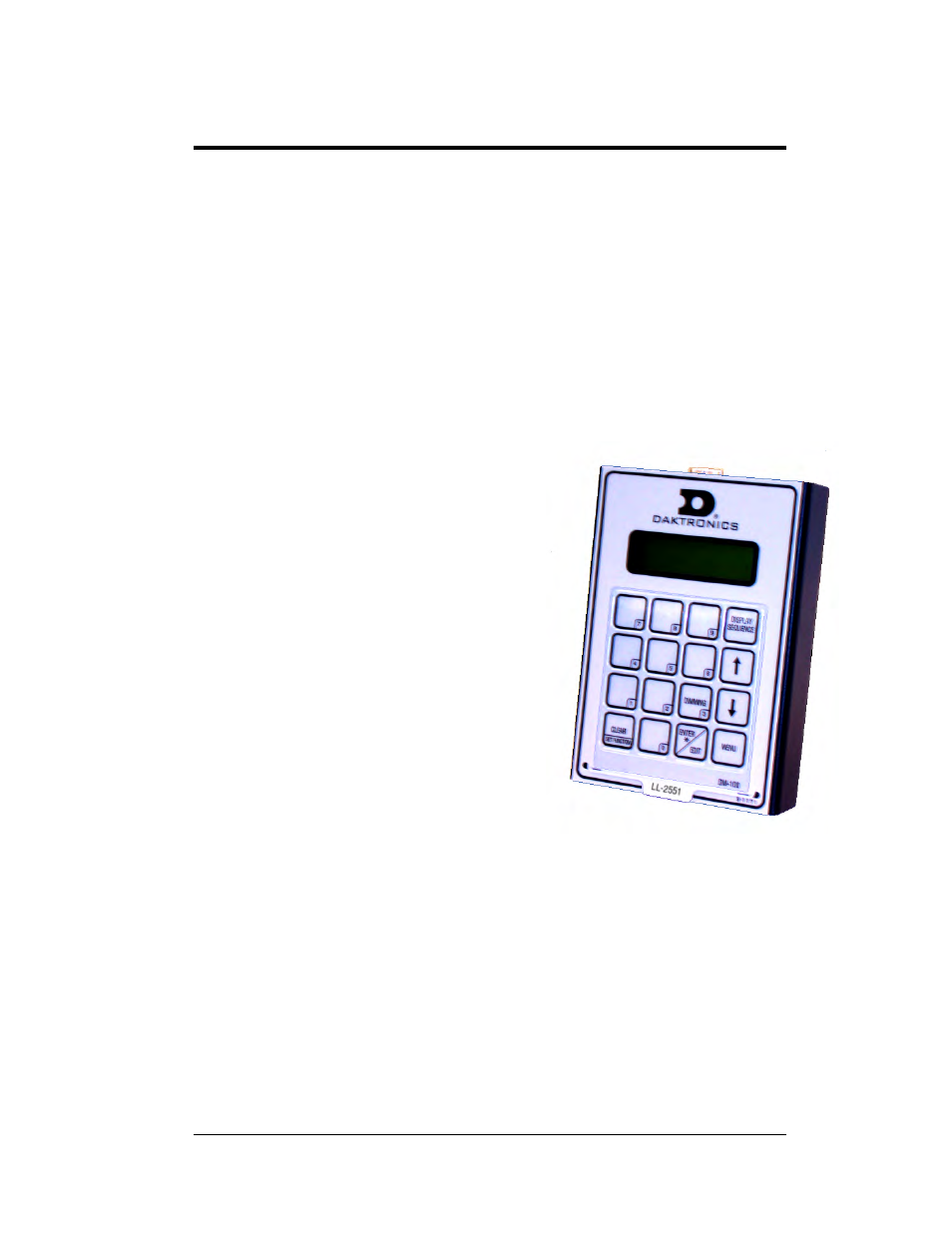

Figure 11: DataMaster 100
Control System Overview 4-1
