CSAT-5060/XSAT-7080 Transceiver iPAQ Link Revision 2
Operations MN/CiLink.IOM
3–4
3.3.2 Main Menu
Æ Configuration
There are five configuration modes from which to choose when using CiLink. The configuration
mode and a brief description is provided here, with detailed information provided on the pages
indicated:
• System Type (page 3-5) – Selects between a standalone
system (one transceiver) and a 1:1 redundant system.
• Signal Path (page 3-6) – Select to view and change the
following transceiver parameters:
Up Converter parameters
TX Status On/Off
Frequency
Amplifier Attenuation (00.00-20.00 dB)
Amp On/Off
Mute On/Off
-and-
Down Converter parameters
RX Status On/Off
Frequency
Amplifier Attenuation (00.00-20.00 dB)
Amp On/Off
Mute On/Of
• LNA (page 3-7) – Select to view or change Current Source Enable/Disable; Fault Logic
On/Off; Enable/Disable the allowable Current Window, and adjust the alarm monitoring
percentage ranges for the Current Window.
• Miscellaneous (page 3-8) – Select to view or change Cold Start, Auto Fault Recovery
(AFR), Local Reference Oscillator Adjustment, External Reference Fault Logic, and Up and
Down Converter slope adjustments.
• Redundancy Controller (page 3-9) – Online Unit (XCVR) selector, Operating Mode
AUTO/MAN, Waveguide Switch Status OK/FT, Controller Voltages monitoring +5VDC
and +12VDC.

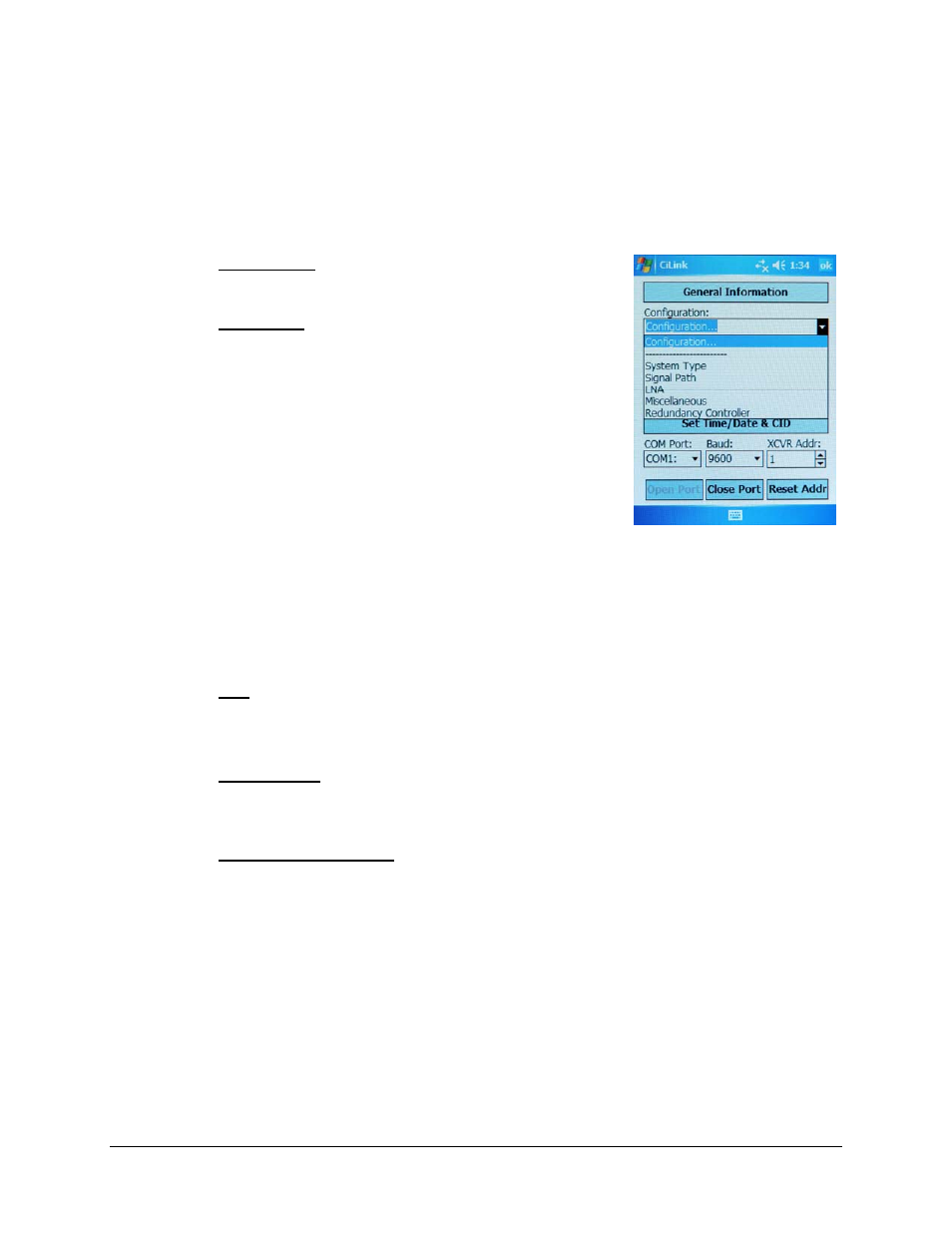

Either select a configuration mode to proceed further, or tap [ok] to
return
to the
Main Menu
from the drop-down
Configuration
screen.
