Chapter 2. SETUP
2.1 Getting Started
The items shown in Figure 2-1 depict what is minimally required to use this installation and
operations manual:
CEFD CiLink Kit P/N LKFT/12453
Item Qty CEFD Part number Description
1 1 LFPL/HPIPAQ-P2
HP rx1950 series iPAC Pocket PC with pre-installed CiLink
program
2 1 PP/IPAQ-ACADAPT AC Adapter Travel Kit
3 1 CA/HP-IPAQ*
Universal USB / Serial Autosync Cable: iPAQ data interface
to USB and CSAT/XSAT 9-pin serial RS-232 / RS-485
connectors
4 1 LFCA/WR9902-1
Comtech EF Data RoHS adapter cable: CSAT/XSAT 19-pin
J5 COMM Port connector to 9-pin serial RS-232 / RS-485
connector
* This interface cable is product-specific. If a handheld device other than an HP iPAQ series product is used, the appropriate serial
adapter cable must be acquired for proper connection and operation as outlined in this manual.

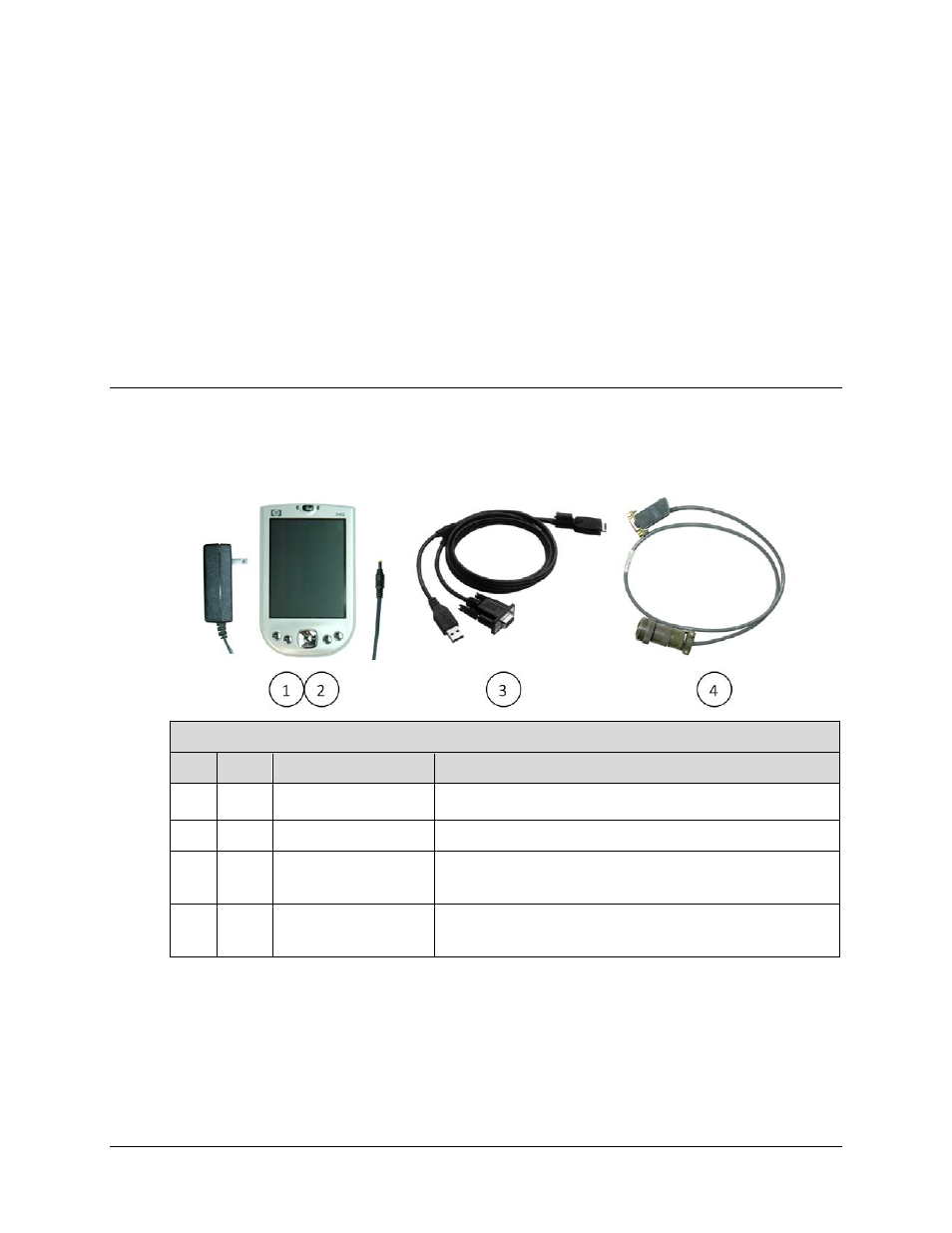

Figure 2-1. CiLink Kit LKFT/12453
Operation of the CiLink Kit requires interface with the J5 COMM port of one of the CSAT-5060
C-Band and XSAT-7080 X-Band series Transceivers shown in Figure 2-2, installed either as a
standalone unit or in redundancy:
