CSAT-5060/XSAT-7080 Transceiver iPAQ Link Revision 2
Operations MN/CiLink.IOM
3–3

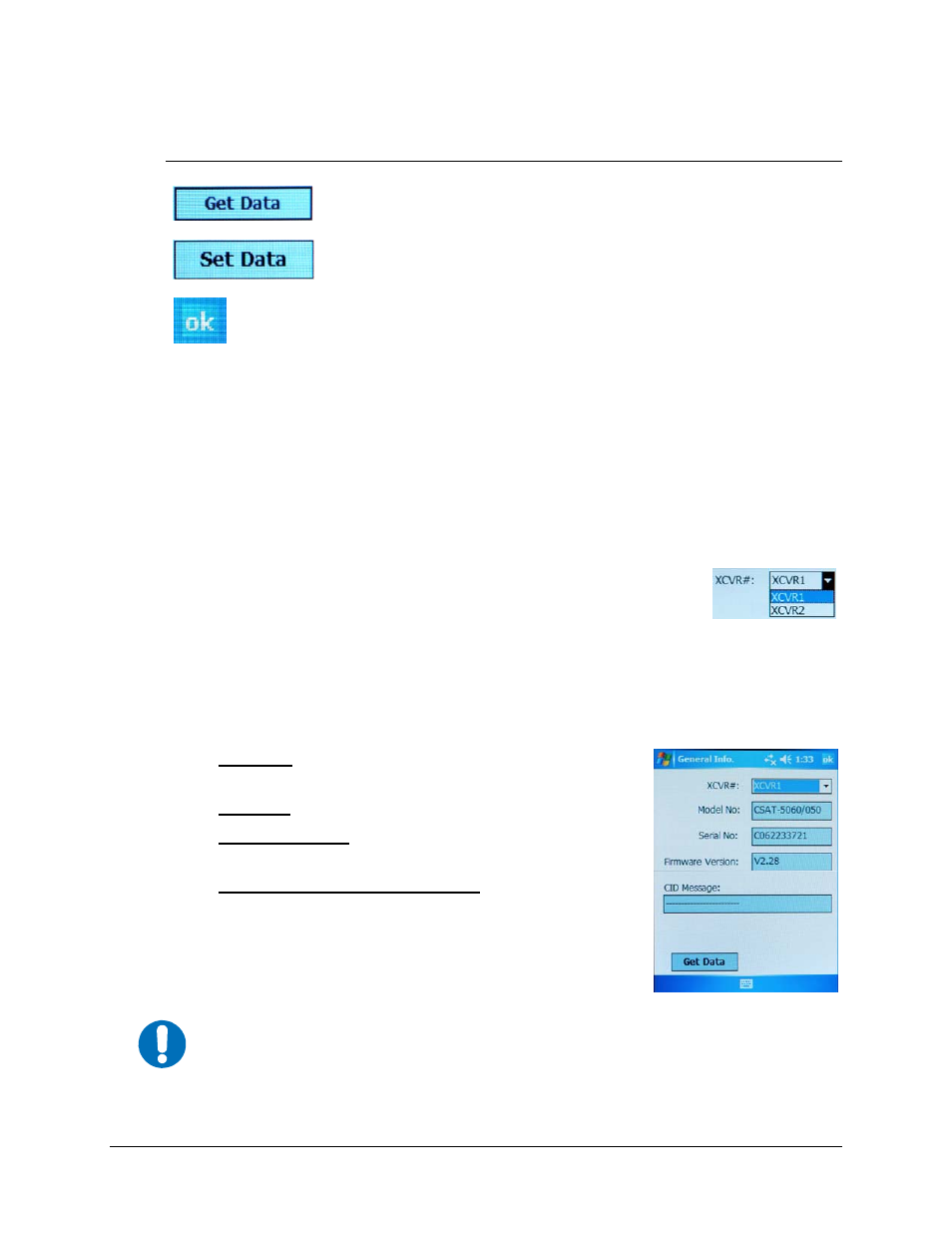

ICON FUNCTION
Tap the [Get Data] icon to refresh the active screen with
existing configured data from the currently selected transceiver.
Tap the
[Set Data] icon to save any parameters that may have
changed; the system is updated with the data currently displayed
on the active screen.
As described on page 2-8, tapping the [ok] icon from the
Main
Menu exits the CiLink program and returns the user to Windows.
However – for all other functions, tapping the [ok] icon on any
command screen that is nested below the
Main Menu
(and
requires user input) serves to
reject
all changes made to the
programmable parameters within that active screen, and returns
the user to the
Main Menu
screen.
3.3.1 Main Menu
Æ General Information
The
General Information
screen displays the status parameters for the currently selected
transceiver.
The currently selected transceiver is the unit that will be polled for status
information in the
General Info. XCVR#
selection box:
XCVR1
is the default selection and
XCVR2
is not selectable if CiLink is set to operate under
standalone (non-redundant) system parameters (see
Configuration
Æ
System Type
for detailed
information).
Once the appropriate selection is made, the
General Information
screen displays the following
data:
• Model No. – the currently selected transceiver model
number.
• Serial No. – the currently selected transceiver serial number.
• Firmware Version – the currently selected transceiver
firmware version.
• CID (Circuit Identification) Message – the currently
selected transceiver programmable text message.
Tap [Get Data] to refresh the active screen with configured data
from the currently selected transceiver. Otherwise, tap [ok] to return
to the Main Menu from the General Information screen.
IMPORTANT
Any parameter displayed in a shaded box – on this screen as well as all others –
provides the user with non-selectable, status-only information.
