2.2.2 CA-0020526 19-pin Circular Connector
The CA-0020526 Serial Interface Cable’s 19-pin circular connector features a keyed
configuration. Figure 2-6 shows the mating relationship between this connector and the ‘J6 |
COM1’ socket on the SSPA, or the ‘J1’ socket on the Redundant Loop Cable Assembly (CEFD P/N
CA-0020655 for Rx / Tx applications, or CA-0020657 for Tx-only applications).
Feature Description
1 Primary Alignment features
2 Secondary Alignment features
3 Sleeve Lock features

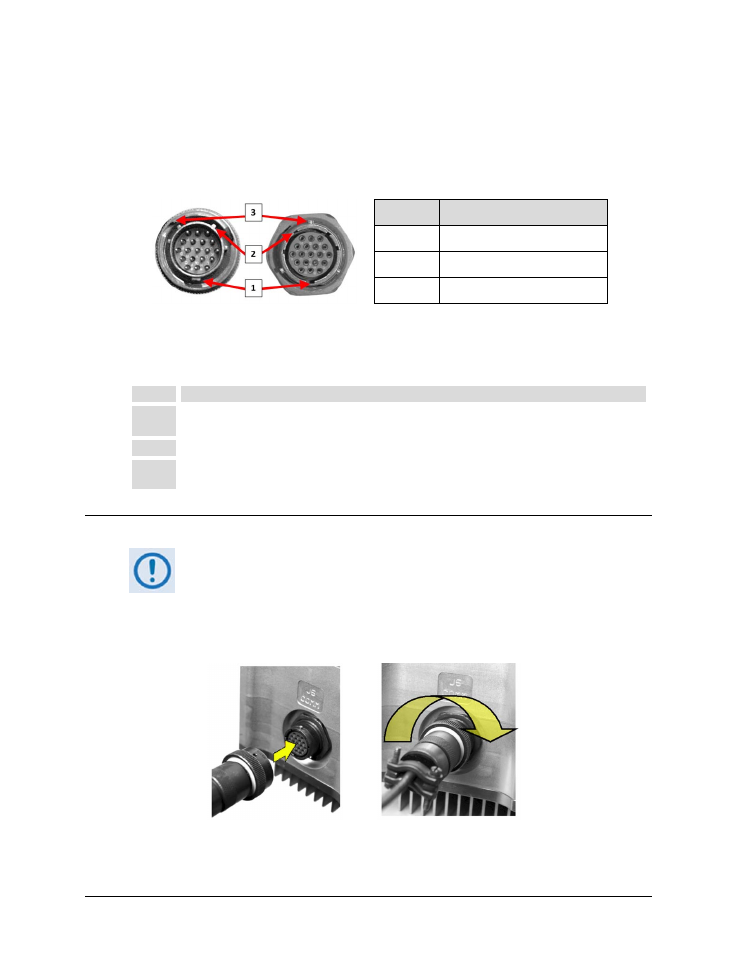

Figure 2-6. CA-0020526 19-pin Circular Connector
Follow these steps to install the CA-0020526 Serial Interface Cable’s male 19-pin circular
connector into the SSPA’s ‘J6 | COM1’ port or the 1:1 Redundant Loop Cable’s ‘J1’ receptacle:
Step Task
1 Engage the primary and secondary alignment tabs on the male connector with the mating cutouts on
the female socket.
2 Push the male connector into the female socket.
3 Turn the male connector sleeve clockwise until the sleeve lock cutouts engage fully with the female
socket tabs and you hear a “click” sound.
2.2.2.1 Circular Connector Connection for Standalone Applications
For standalone configurations, the CA-0020526 Serial Interface Cable connects
directly between the CLC-10 and the SSPA.
Connect the CA-0020526 Serial Interface Cable’s 19-pin circular connector to the SSPA’s
‘J6|COM1’ port as per the steps described in Sect. 2.2.2, and as shown in Figure 2-7.
Figure 2-7. CLC-10 to SSPA Connection – Standalone Applications
