Operation Revision 1
RC-1160 RC-1260 Redundancy Switch Controllers MN-RC1160RC1260
3–8
3.4.4 Selection of EIA-485/232

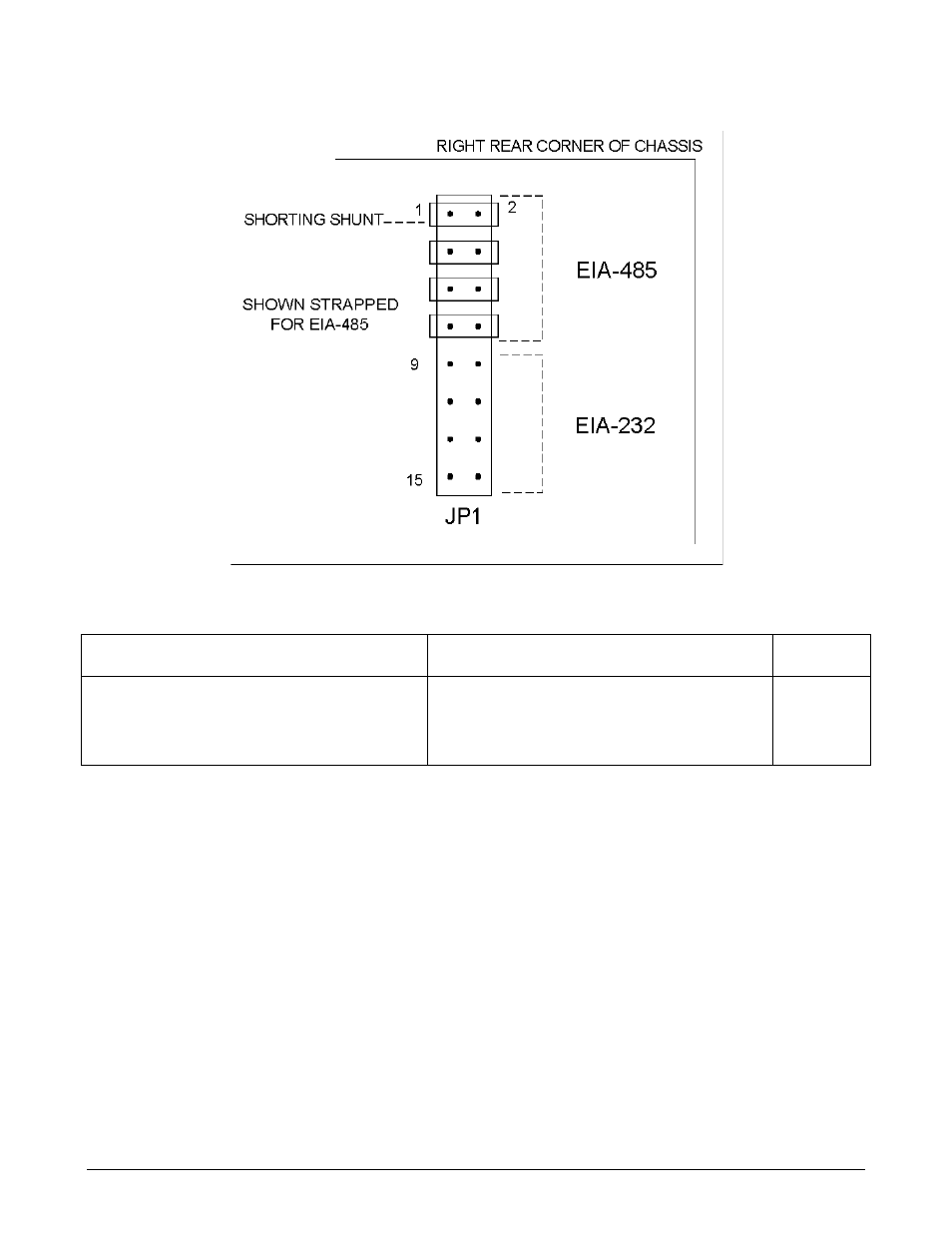

Figure 3-4. Selection of EIA-232/485 Jumpers
EIA-485, jumper terminal JP1 should have four
shorting bars between these pins:
EIA-232, jumper terminal JP1 should have four
shorting bars between these pins:
Factory
Settings
1. First bar between pins 1 and 2
2. Second bar between pins 3 and 4
3. Third bar between pins 5 and 6
4. Fourth bar between pins 7 and 8 1. First bar between pins 9 and 10
2. Second bar between pins 11 and 12
3. Third bar between pins 13 and 14
4. Fourth bar between pins 15 and 16 EIA-485
9600 baud
Even parity
Address 1
Select the desired address and baud rate if it differs (refer to Section A.3).
