MIDAS 4.2 Basic Configuration, Rev. 1

Setup and Operation 2–55

C

C

i

i

r

r

c

c

u

u

i

i

t

t

I

I

D

D

/

/

C

C

i

i

r

r

c

c

u

u

i

i

t

t

T

T

y

y

p

p

e

e

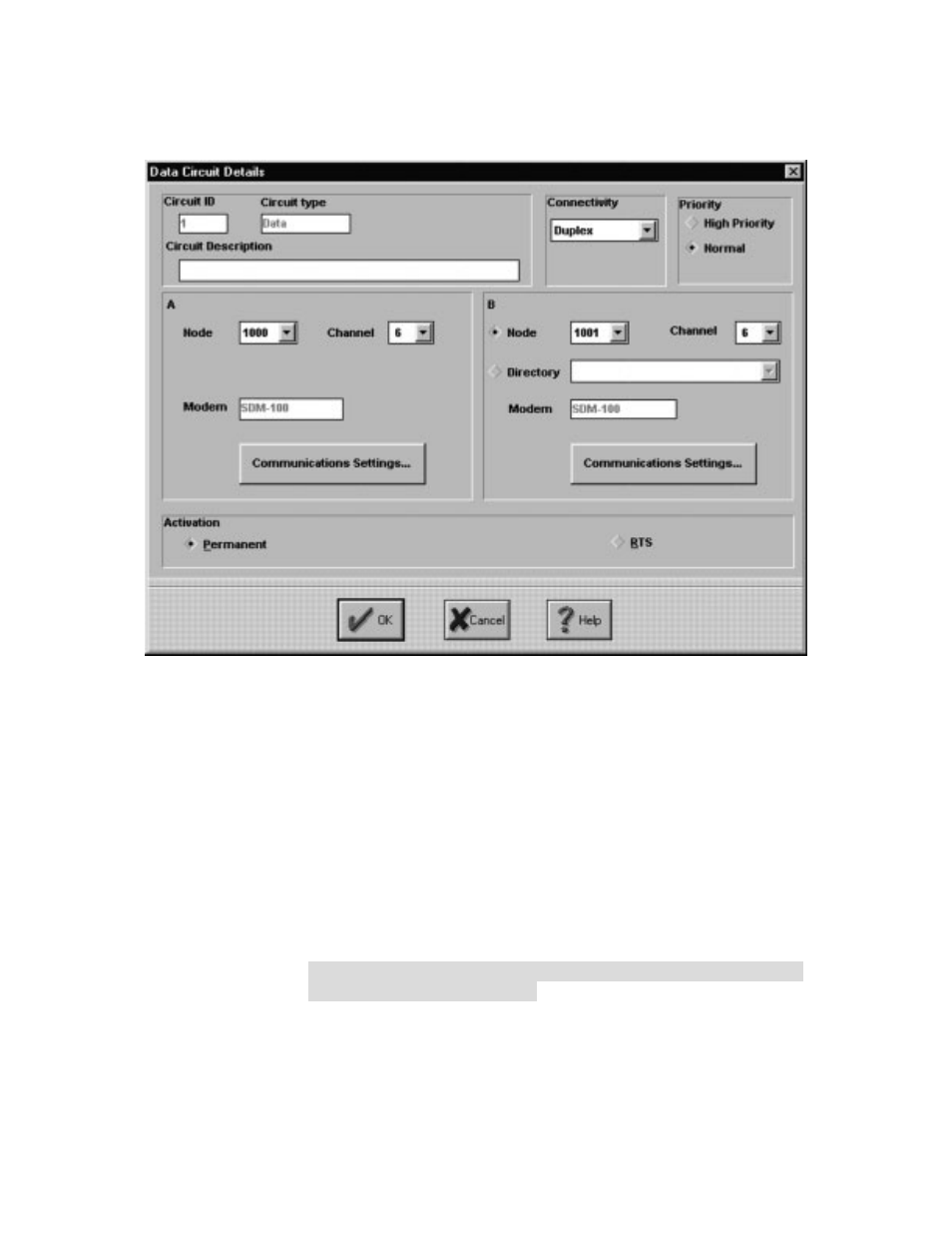

(Display-Only) These fields show the previously entered unique Circuit ID and
Circuit Type.

C

C

i

i

r

r

c

c

u

u

i

i

t

t

D

D

e

e

s

s

c

c

r

r

i

i

p

p

t

t

i

i

o

o

n

n

This field allows the operator to enter a text description for the circuit, for
quick identification purposes.

C

C

o

o

n

n

n

n

e

e

c

c

t

t

i

i

v

v

i

i

t

t

y

y

This drop-down box allows the operator to select either Simplex or Duplex
communications for the circuit. (Duplex is the default setting.)

• Simplex – this type of circuit provides one-way communications.
• Duplex – this type of circuit provides two-way communications.

Note: An internal node (such as an SNM-1010) cannot function as the
“From/A” side of a simplex call.
