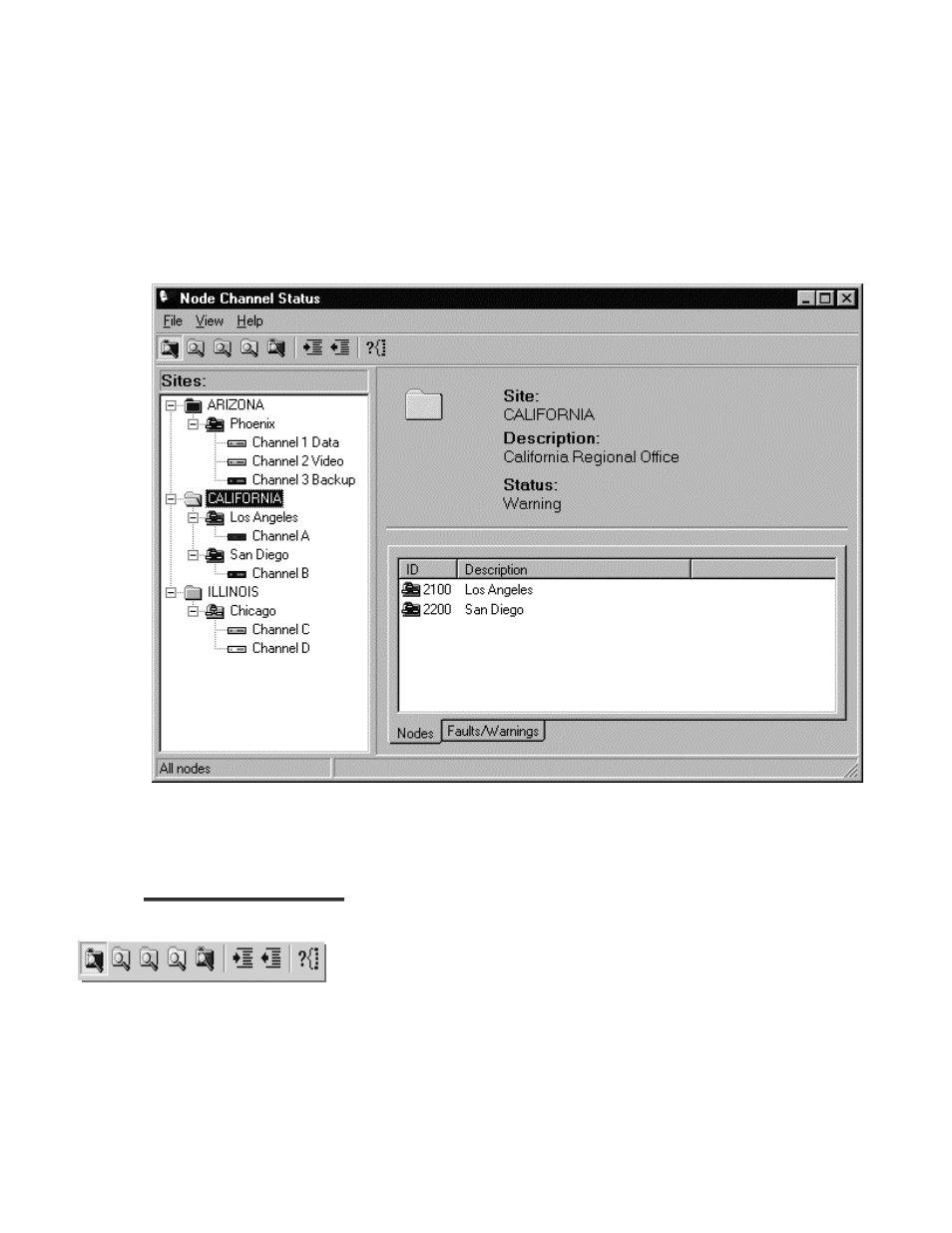

N N o o d d e e - - C C h h a a n n n n e e l l S S t t a a t t u u s s R R e e p p o o r r t t
The Node-Channel Status Report (ref: MIDAS Troubleshooting and
Diagnostics manual for additional data on Node Channel Status.) is a color-
coded status report indicating the current status of all sites, nodes, and
channels within the network. Configure the report to show the status of all
channels within the network, or just the faulted channels.
Channel status is also summarized into node and site status. Channel status
changes are reported within 10 seconds of the physical event occurrence.
T T o o o o l l b b a a r r
The toolbar contains buttons for some of the more frequently used menu
commands. From left to right, the first four buttons are as follows:
View All Disabled Call in progress Warning
The last four buttons are:
Fault Expand Collapse Refresh
