Comtech EF Data OMS11 User Manual
Page 61
Appendix A
OMS11 1:1 Redundancy Switch
A-4
TM133 – Rev. 1.1

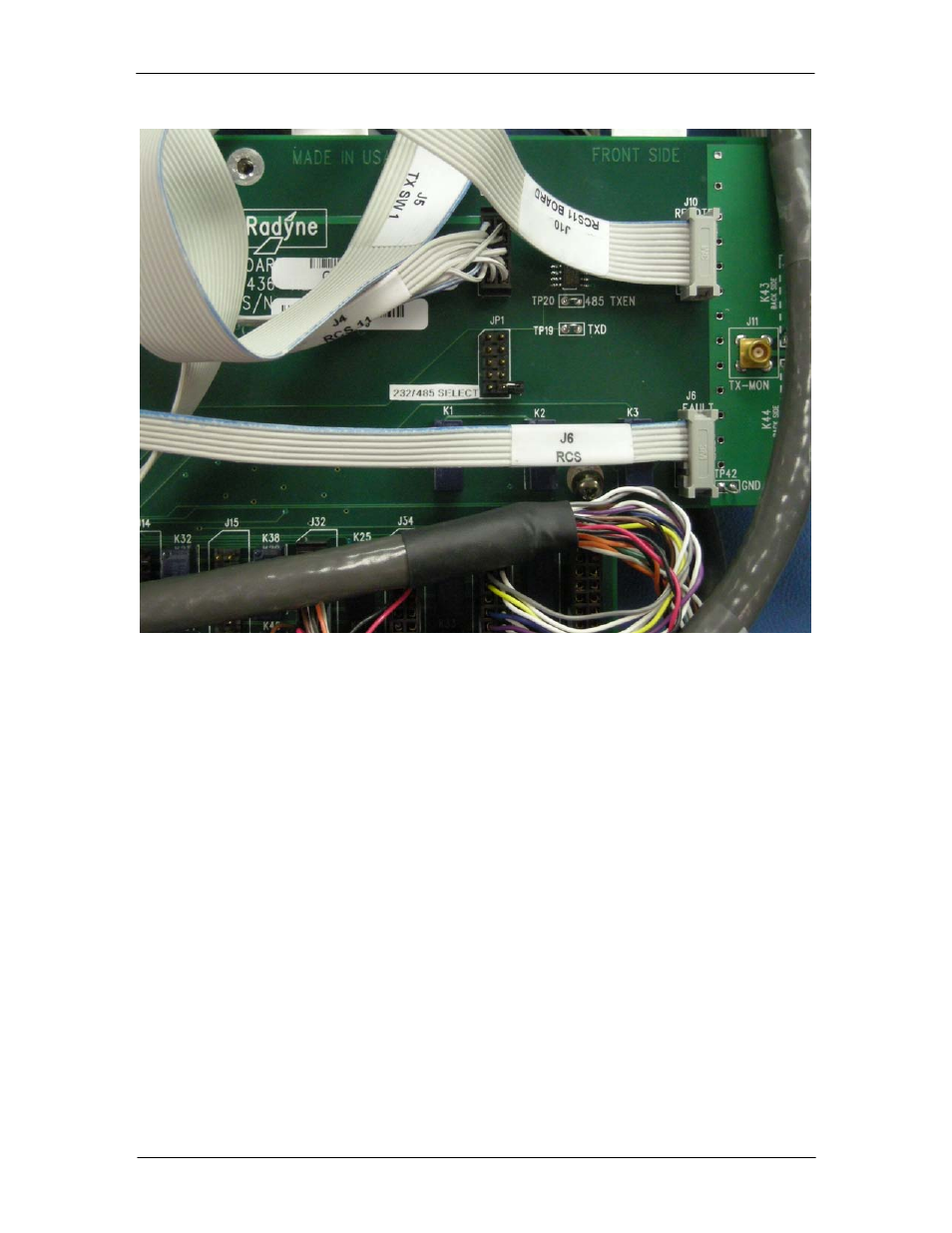

Figure A5. JP1 on AS/3436-6
Figure A5 illustrates the standard jumper block for configuring unit to RS485 Remote or RS232
Terminal mode. Unit is configured to RS232 Terminal when shipped from the factory as per the
picture above.
The diagram above indicates an RS232 configuration. Installing the jumper, connecting the pins
will configure the unit for RS485.
