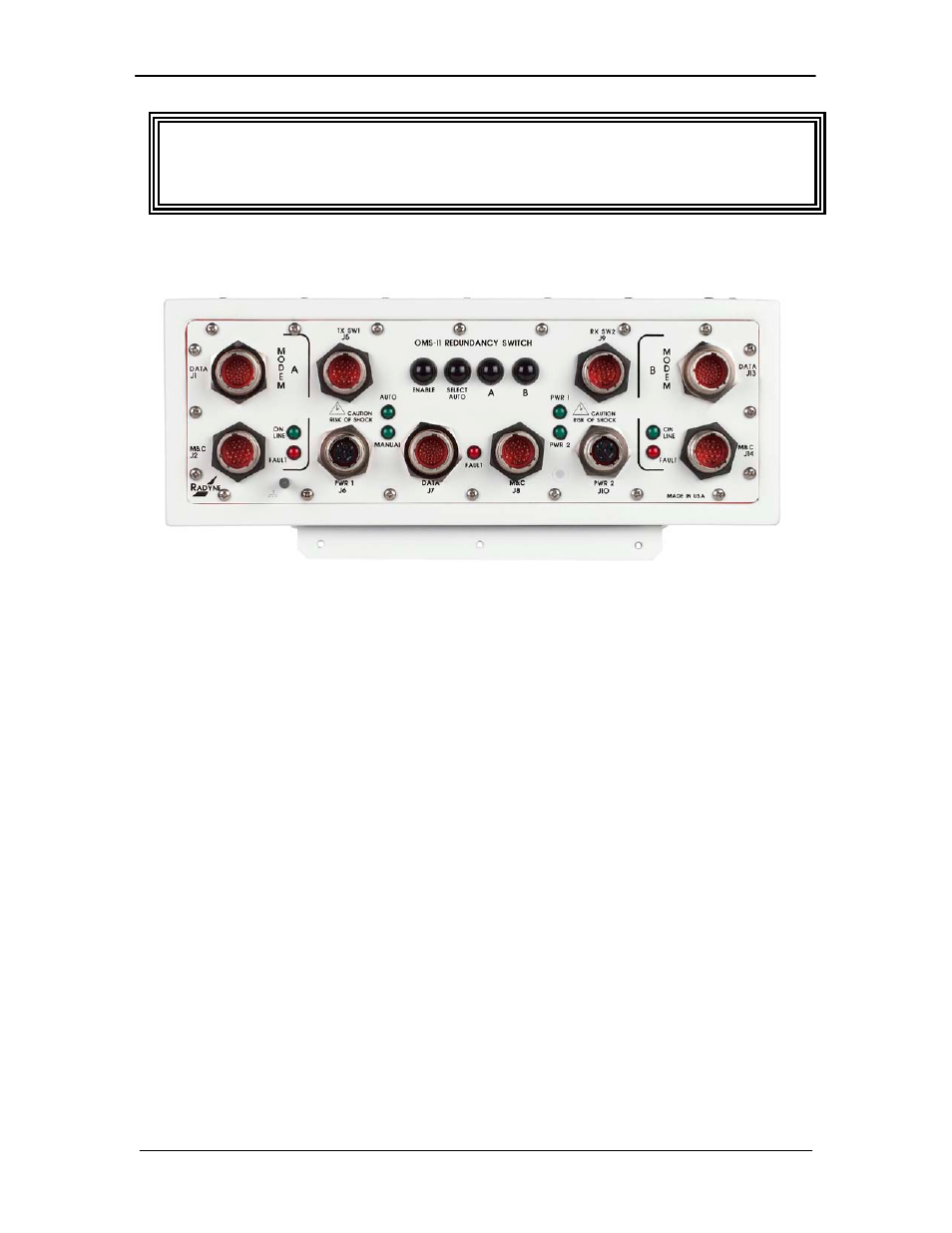

OMS11 1:1 Redundancy Switch Installation
TM133 – Rev. 1.1 4-3
PROPER GROUNDING PROTECTION: During installation and setup, the
user must ensure that the unit is properly grounded. The equipment
shall be connected to the protective earth connection through the end
use protective earth protection.
4.3
System Setup & Connections
1.
Install OMS11/OM20 Mounting kit as shown in Figure 4-1 and Table 4-1. This displays
the optional Radyne unistrut mounting kit for antenna kingpost mounting.
2.
Mount the units as shown per figure 4-2 below. Configure units.
Note: Customer configurations may vary.
3.
Install BUCs, LNBs and waveguide hardware onto mounting kit as shown in Figure 4-4.
This displays the optional Radyne unistrut mounting kit for antenna kingpost mounting.
4.
Attach the Power Cords to the OMS11 and OM20 units to be connected.
5.
Power up the units to be connected. Their Green Power LEDs should illuminate.
If not, refer to the appropriate Installation and Operation manual for further action to be
taken.
