OMS11 1:1 Redundancy Switch User Interfaces
TM133 – Rev. 1.1 3-1
User Interfaces
3
3.0
User Interfaces
These are:
 Front Panel Interface – Refer to Section 3.1.
 Remote Interface – Refer to Appendix B.

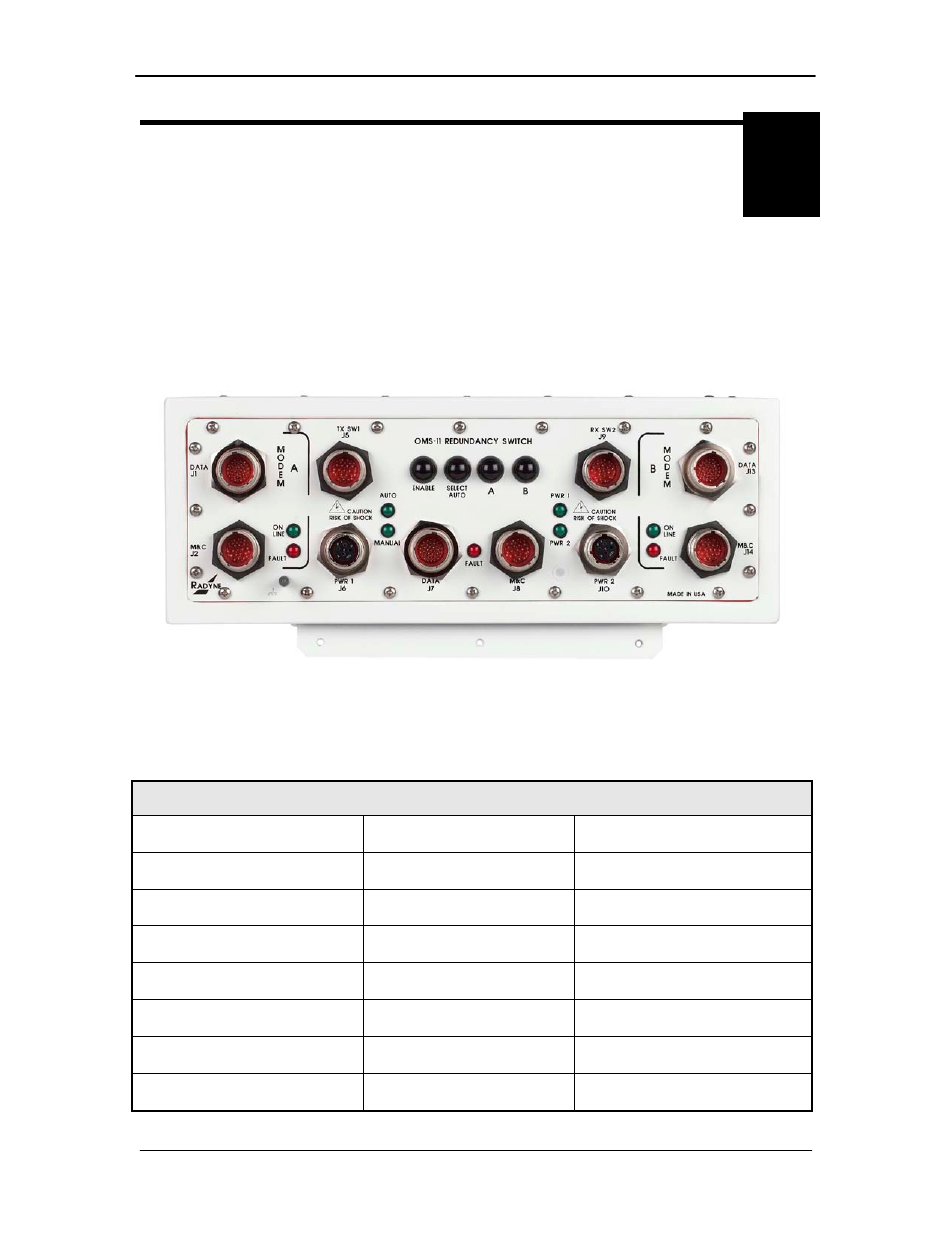

Figure 3-1 OMS11 Front Panel
3.1 Front Panel Interface
Table 3-1. OMS11 Front Panel Controls and Indicators
Nomenclature Description Function
Power 1 Indicates PS1 has power
applied LED illuminates Green for
Power Available
Power 2 Indicates PS2 has power
applied LED illuminates Green for
Power Available
Fault Indicates a Switch Fault
has occurred LED illuminates Red for Switch
Fault
Auto (LED) Indicates OMS11 is in the
Auto Mode LED illuminates Green for Auto
Mode
Manual (LED) Indicates the OMS11 is in
the Manual Mode LED illuminates Green for
Manual Mode
SELECT AUTO (Pushbutton) ------------------- Allows the operator to select
Automatic Mode of operation
ENABLE (Pushbutton) ------------------- Enables Front Panel controls to
function
