Installation OMS11 1:1 Redundancy Switch
TM133 – Rev. 1.1 4-6

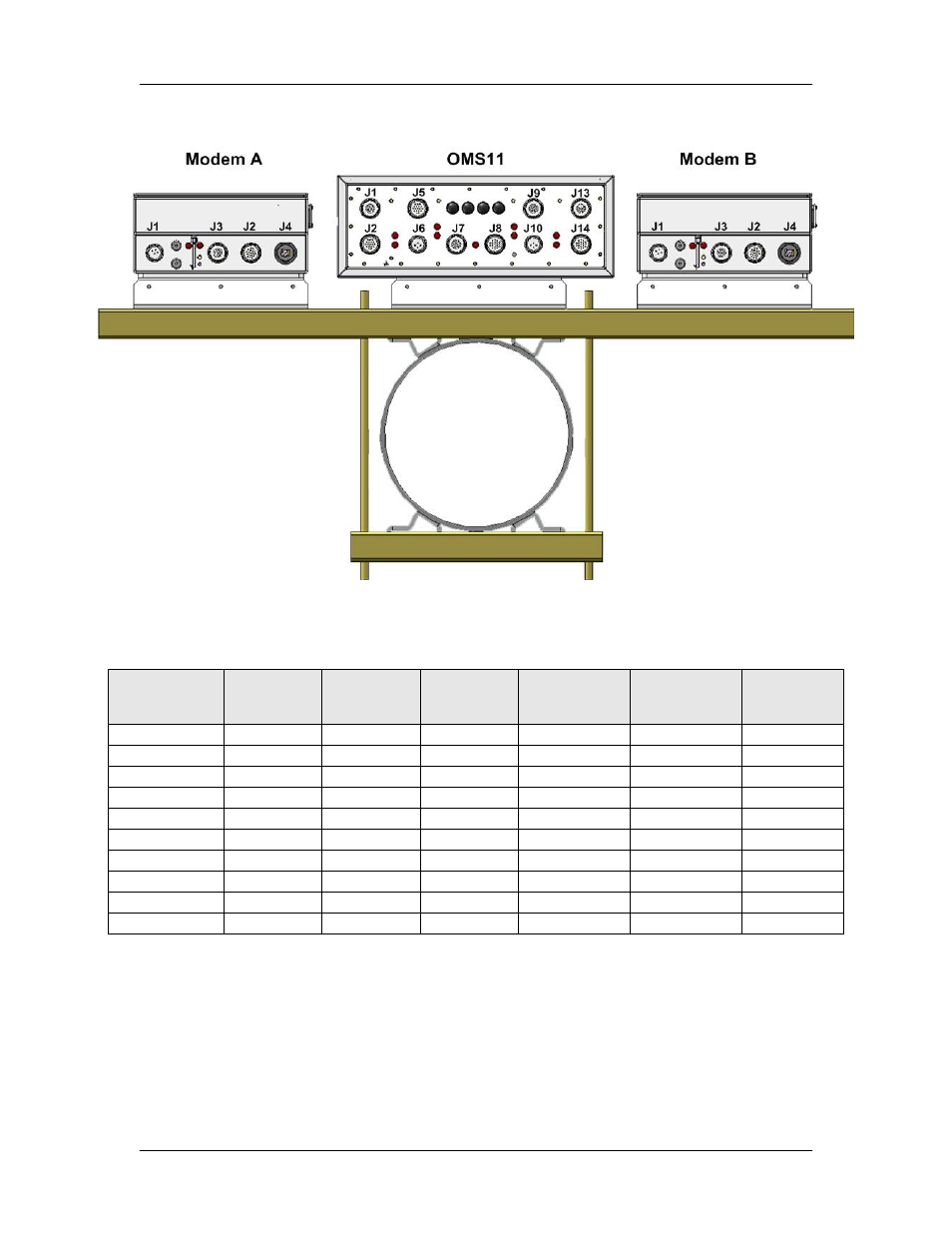

Figure 4-3 Antenna Mount Bottom View
Cable
Connects
OMS11
Location
Modem A
Location
Modem B
Location
TX
Waveguide
RX
Waveguide
BUC
A/B
CAR5902* J1 J3 -- -- --
CAR5902 J13 -- J3 -- --
CAR5918** J1 J3 -- -- --
CAR5918** J13 -- J3 -- --
CAR5903 J2 J2 -- -- --
CAR5903 J14 -- J2 -- --
CAR5904 J5 -- -- J --
CAR5904 J9 -- -- -- J
CAR5933 J3 Plug J
CAR5933 J3 Plug J
* CAR5902 is for G703 Balanced Communications
** CAR5918 is for RS422 Serial Communications
Table 4-3 Cable Connections between OM20 and OMS11
