Product Reference Guide D-1
Appendix D
Cable & Connector Configurations
Introduction
The following pages contain information about standard interface cables for
use in interconnecting the Dock to power and/or peripheral devices.
General Specifications
Wire Requirements
• Cable length should not exceed 15 feet.
• Wire gauge = Standard for RJ-45 connectors (28-26 AWG).
Supply Voltage
Current power supply voltage = 12V, 2.5 amp.
USB Cable
Figure D-1 on page D-1 illustrates the connector configuration of the USB
cable for the Falcon.

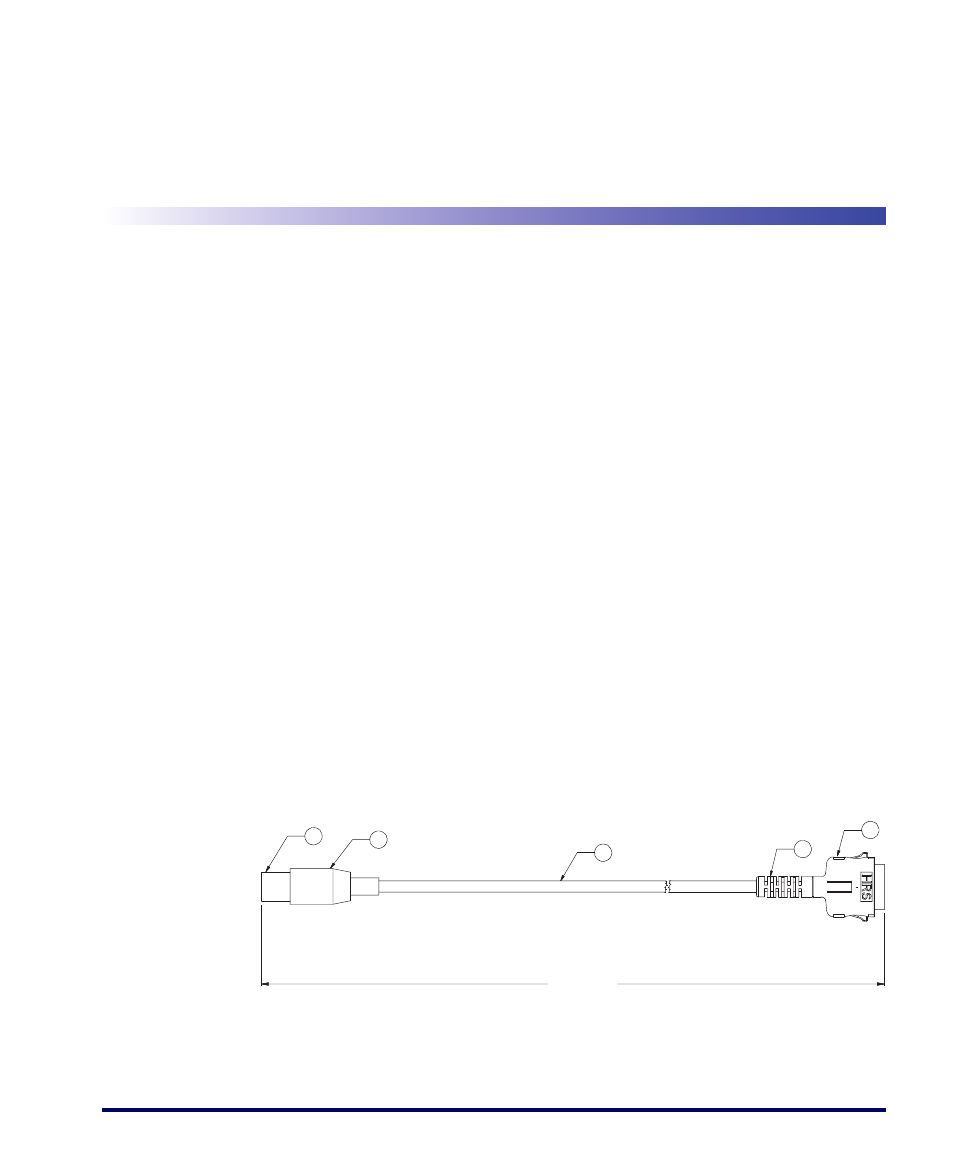

Figure D-1. USB Connector Configurations
5
FALCON END
PC END
72.0" ±2.0"
1
2
3 4
