Configuration Settings
2-14 Falcon ® 4400 Series with Windows Mobile ®

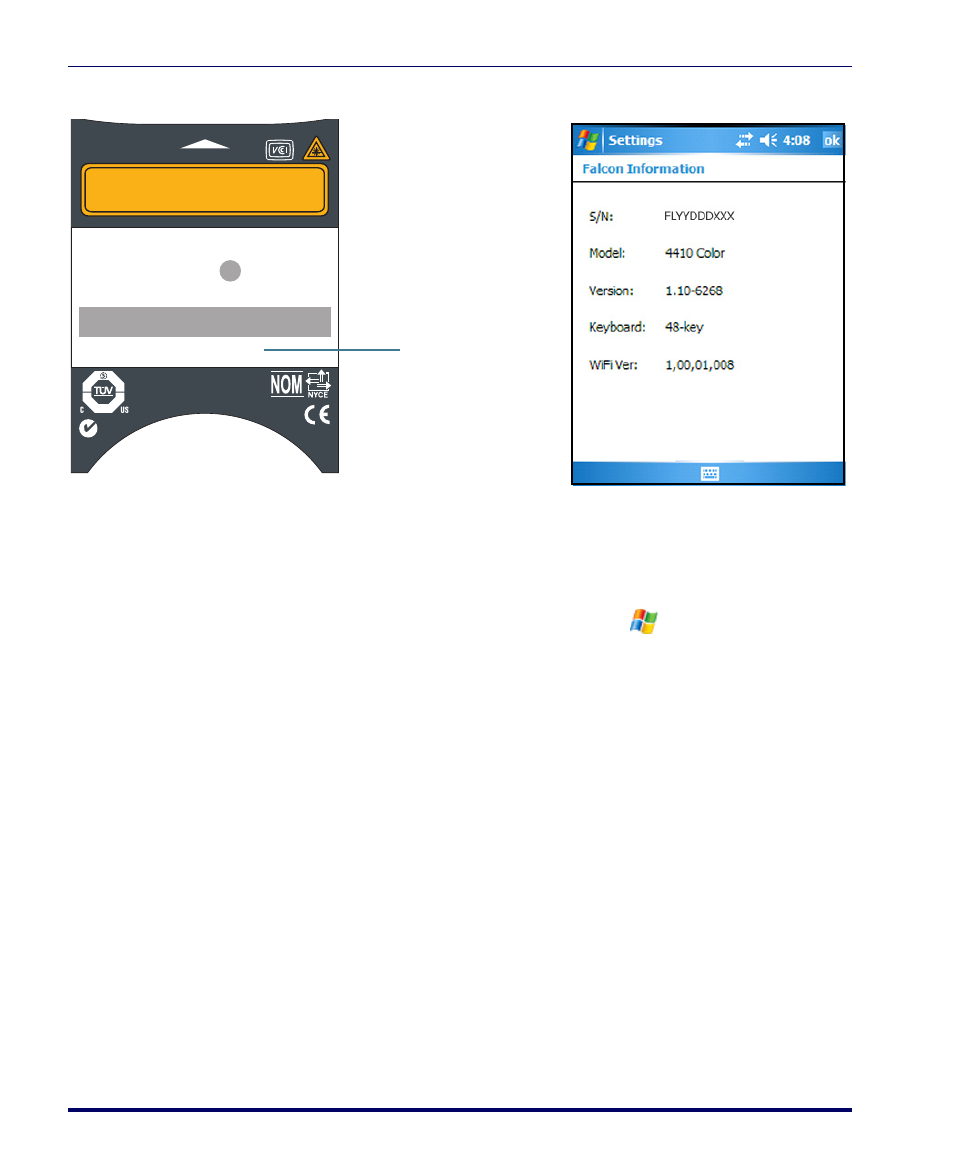

Figure 2-11. Serial Number Locations
Imager
Imaging Overview
If your Falcon has the Imager module installed, the Imaging Control Panel
icon will be available on your Settings screen. Tap
> Settings > System >
Imager .
See Sample Imager Settings, p. 2-18 , to view sample settings for different con-
ditions.
Image Capture
The Capture page provides you with configuration options for previewing and
capturing an image with the Falcon.
Capture an image as follows:
1. Aim the Falcon toward the image you want to capture. The screen
will display a preview of the image, making use of the current settings
(to change the settings, see Image Settings, p.
2-18 ).
2. Tap the Capture button (refer to Figure 2-12A ) or press and hold the
trigger.
PA
T:
4,3
87,
297
- 4,5
93,186 -
4,460,120 - 4,758
,717 -
5,13
0,52
0
CAN: 24611032079A
N263
NRTL
Saf ety
te sted
Pr oduction monitored
PRODUCT SERVICE
SERIAL # FLYYDDDXXX
PRODUCT OF USA
Datalogic Mobile
1505 Westec Dr.
Eugene, OR 97402
Item # 345-4201-005
EUR: CE0560 RADIO: BREEZECOM
FCC: M52PCRNZZ-00
DATE OF MANUF
AVOID EXPOSURE — LASER LIGHT IS EMITTED FROM THIS APERTURE
Complies with 21CFR and Part 15 of FCC rules.
BACKUP BATTERY: 3.1 V Lithium
Approved RLAN Module inside
Serial Number
SERIAL #FLYYDDDXXX
SERIAL #FLYYDDDXXX
