GLASS SHADE INSTALLATION GUIDE
Model B Series -04 (E12 Base Pendant Set 120V)
Q Series -04 (G9 Base Pendant Set 120V)
BKIT.04, Rev.10 12-11
6695 Taylor Rd. Blacklick, OH 43004
www.besalighting.com
IMPORTANT: FOR INSTALLATION OF PENDANTS AND WIRING, PLEASE REFER
TO THE FIXTURE INSTALLATION GUIDE INCLUDED WITH FIXTURE CANOPY
NOTE:
Prior to installing the pendant cord into the ceiling canopy, slide the Sleeve over the cord, then lower the Sleeve down
the pendant cord until the Sleeve recesses into the threaded nipple on top of the socket assembly. Now slide the
Knurled Nut, then the Retaining Cap, then the Decorative Cap over the cord. The pendant can now be installed per
the FIXTURE INSTALLATON GUIDE.
1. Installing Glass Shade
Position the Glass Shade over and above the socket (as shown), then install the Balance Cup. With the Glass Shade
resting on the Balance Cup, secure the Balance Cup with the Knurled Nut.
2. Leveling Glass Shade
If necessary, the Glass Shade may be leveled by shifting the Balance Cup and Glass Shade along the slot in the Balance
Cup. The Knurled Nut may need to be loosened and retightened. See more details on back side of thispage.
3. Securing the Glass Shade
Position the Retaining Cap onto the Glass Shade, aligning the slot and the openings with the Balance Cup. Using the
Fastener Screws and Silicone Washers, secure the Retaining Cap to the Balance Cup. DO NOT OVERTIGHTEN! To
complete assembly, lower the Decorative Cap and install bulb per label on luminaire, then restore power.

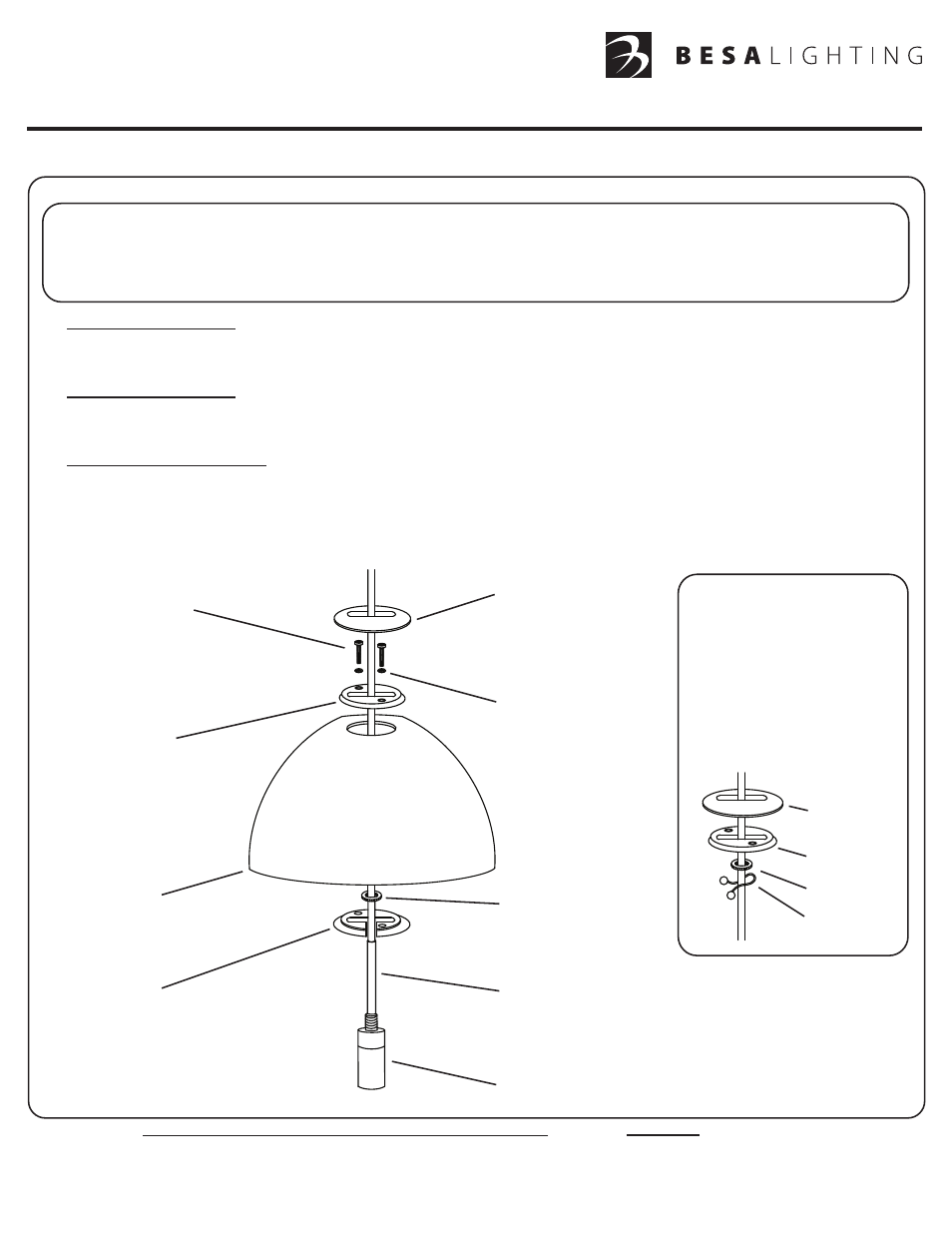

Balance Cup
install by positioning
slotted opening over
the cord and above
the Sleeve.
Retaining Cap
must be installed prior
to installing pendant
into canopy.
Fastener Screws
DO NOT
OVERTIGHTEN!
Glass Shade
size and shape may
vary from shade shown.
Sleeve
must be installed prior
to installing pendant
into canopy.
Knurled Nut
must be installed prior
to installing pendant
into canopy.
Decorative Cap
must be installed prior
to installing pendant
into canopy.
Wire Clip
Decorative
Cap
Retaining
Cap
Knurled Nut
Silicone Washers
Socket (varies by series)
Replacement parts for this 120V Voltage Pendant Set are as follows:
#TB310C50-SN.04 - 50W 10’ clear cordset with Nickel Hardware
#TQ310C40-SN.04 (lamp included) - 40W 10’ clear cordset with Nickel Hardware
For Bronze cordset, use “Z” in place of “C” and “BR” in place of “SN”. For 15’
cordset, use “315” in place of “310”
Lamps Only
#B5513 - 40W G9 Halogen, 120V
NOTE:
A Wire Clip is provided to help
secure the Knurled Nut,
Retaining Cap and Decorative
Cap above the Glass Shade
during installation. Simply
remove and replace the Wire
Clip as these parts are needed.
After installation, the Wire Clip
can be removed completely.
