Maintenance
C.5.16 Stepper motor PCB with transmission

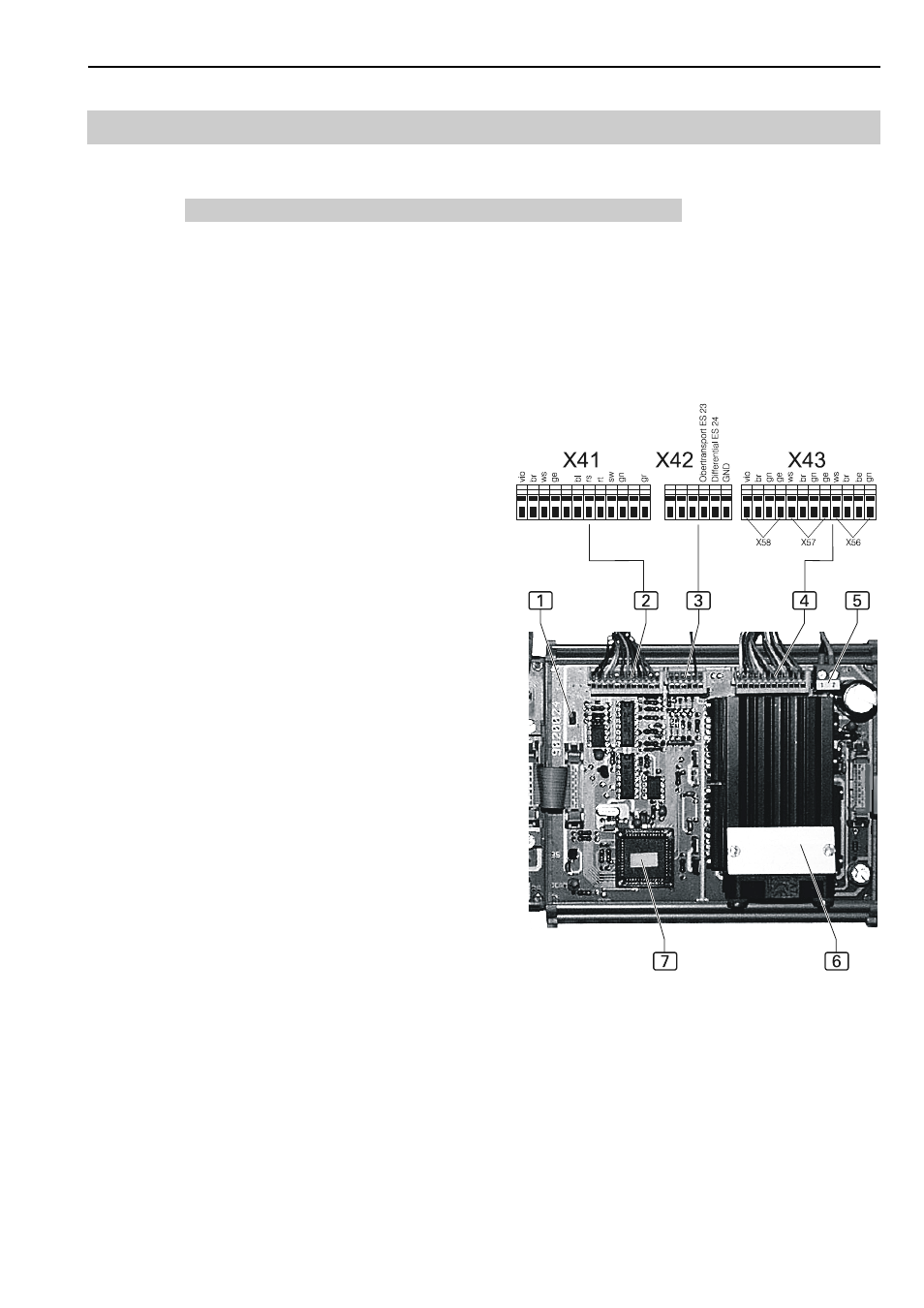

Fig. 14: Efka control, initiators, and transport unit are connected to the
terminal strips X11-X13.
1 Sewing machine: Jumper (set)
2 Sewing machine: Efka controller
3 Sewing machine: Initiators
4 Sewing machine: Connection for top transport (X58),
differential transport (X57), puller (X56)
5 Sewing machine: 24 V power supply
6 Sewing machine: Fan
7 Sewing machine: EPROM CRC 0105
Fig. 14
