Altera Quartus II Programmer™

30

EL9800

3.3 Choosing the programming file

After successful conversion of the SOF-file, the programming of the EEPROM can take place. As shown
in Figure 22the EEPROM (EPCS16) has to be chosen. The programming file has then to be set by click-
ing on the button “Change File”.

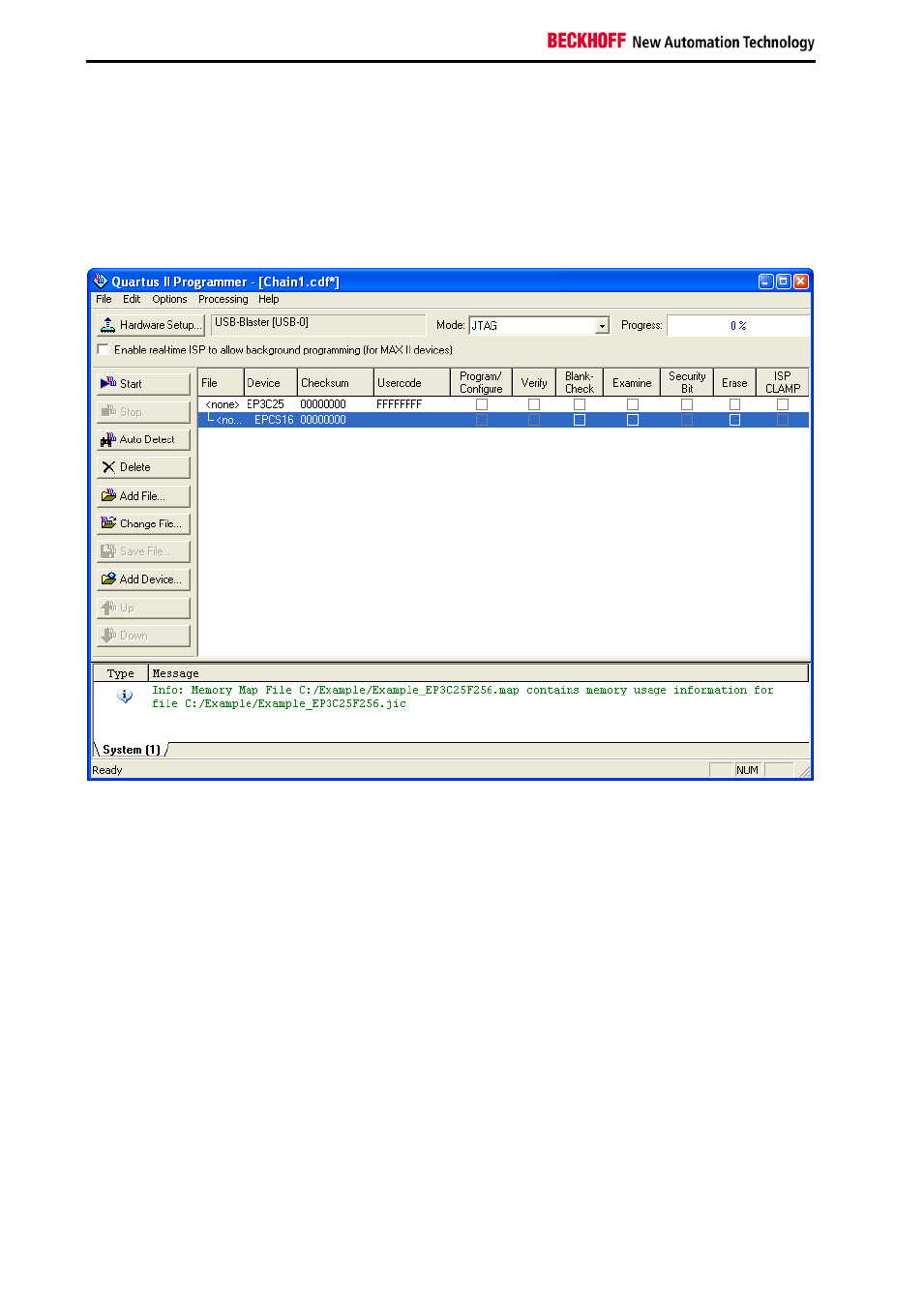

Figure 22 Selection of the programming file

The last step is to configure the programming process, by

setting check marks on “Program/Configure”

and “Verify”.

3.4 Programming of the FPGA/EEPROM

The programming process is then

started by clicking on the button „Start“. In the message field the pro-

gramming process is logged. And in case of a faulty programming process an error message is displayed
in this field.
