Altera Quartus II Programmer™
EL9800 27

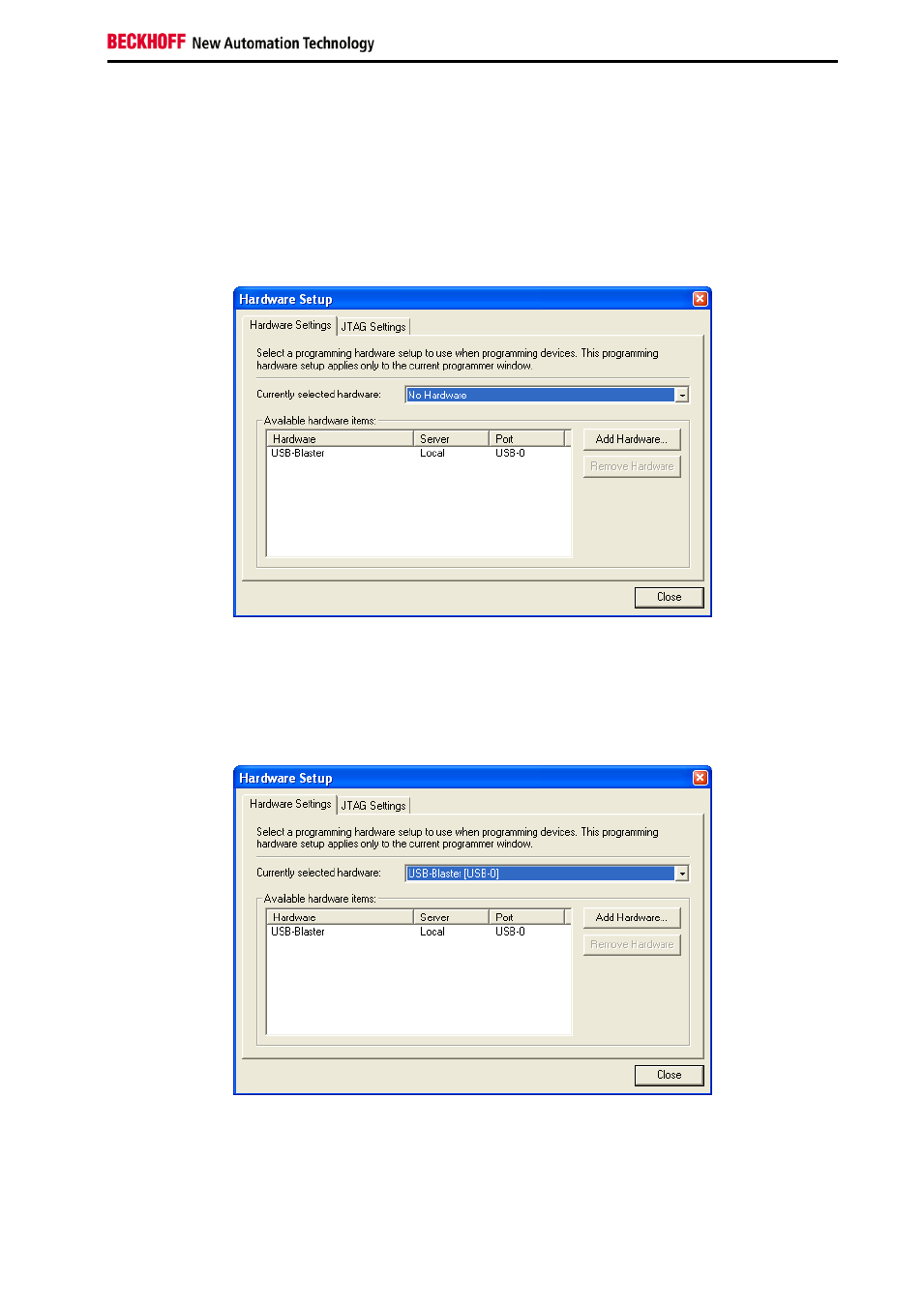

3.1 Selecting the programming hardware
After starting the Altera Quartus Programmer ™ the dialog shown in Figure 17 opens. At first the pro-
gramming hardware hast to be selected. Therefore the dialog below has to be opened by clicking on the
button “Hardware-Setup”. “USB-Blaster” has to be chosen in the drop down menu “Currently selected
hardware” (see Figure 18).
Figure 18 Hardware Setup Dialog
In the following, it can be searched for FPGAs within the daisy chain. All devices in the chain are identi-
fied automatically by clicking on the button “Auto Detect”. When the identification process is completed,
all FPGAs/EEPROMs available are listed. As an example an Altera Cyclone III FPGA (EP3C25) with an
EEPROM (EPCS16) connected is shown in Figure 20.
Figure 19 Setup Dialog – USB Blaster selected
