Manual Rewind Option
06/01 Rev. 2.09 8
Technical Service
Mechanic

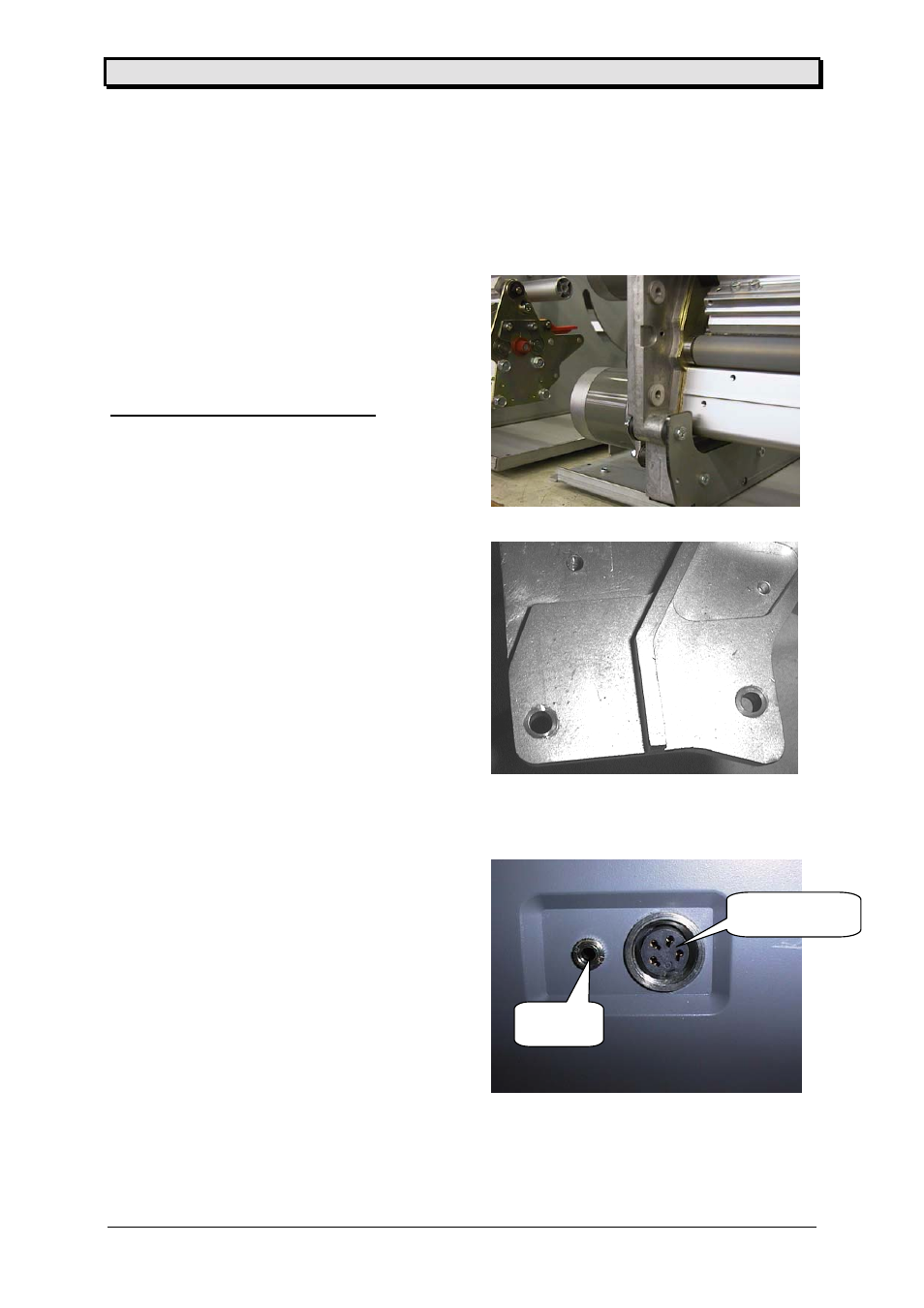

Rewinder complete
Before mounting the rewinder option
an other option has to be disassembled
(like cutter, or infeed).
Assembly/Disassembly rewinder
- set printer to a flat surface
- the surface has to big enough
to hold as well the support foot
- mount the rewinder with two
hexagonal screws - use the defined
holes
- adjust the support foot in a way
that the weight of the rewound roll
is absorbed by the support
- small differences are regulated by the
rubber feet
- connect the sensor cable to the
responding connector at the front
of the printer
- select option on the display and
activate the option (PEPH)
- select direction at the display
(see User Manual)
- adjust sensor (as described under electronic)
Attention: The rewind option is now ready to operate - all other options are
deactivated!
Sensor
Steppermoto
r
