Manual Rewind Option
06/01 Rev. 2.09 14
Stepper motor
The stepper motor is the driving part of the unit. Driven and controlled by the printer - is the
only intelligent part on the rewinder the optical encoder of the dancer arm. Controlling speed
and position of the rewinder.

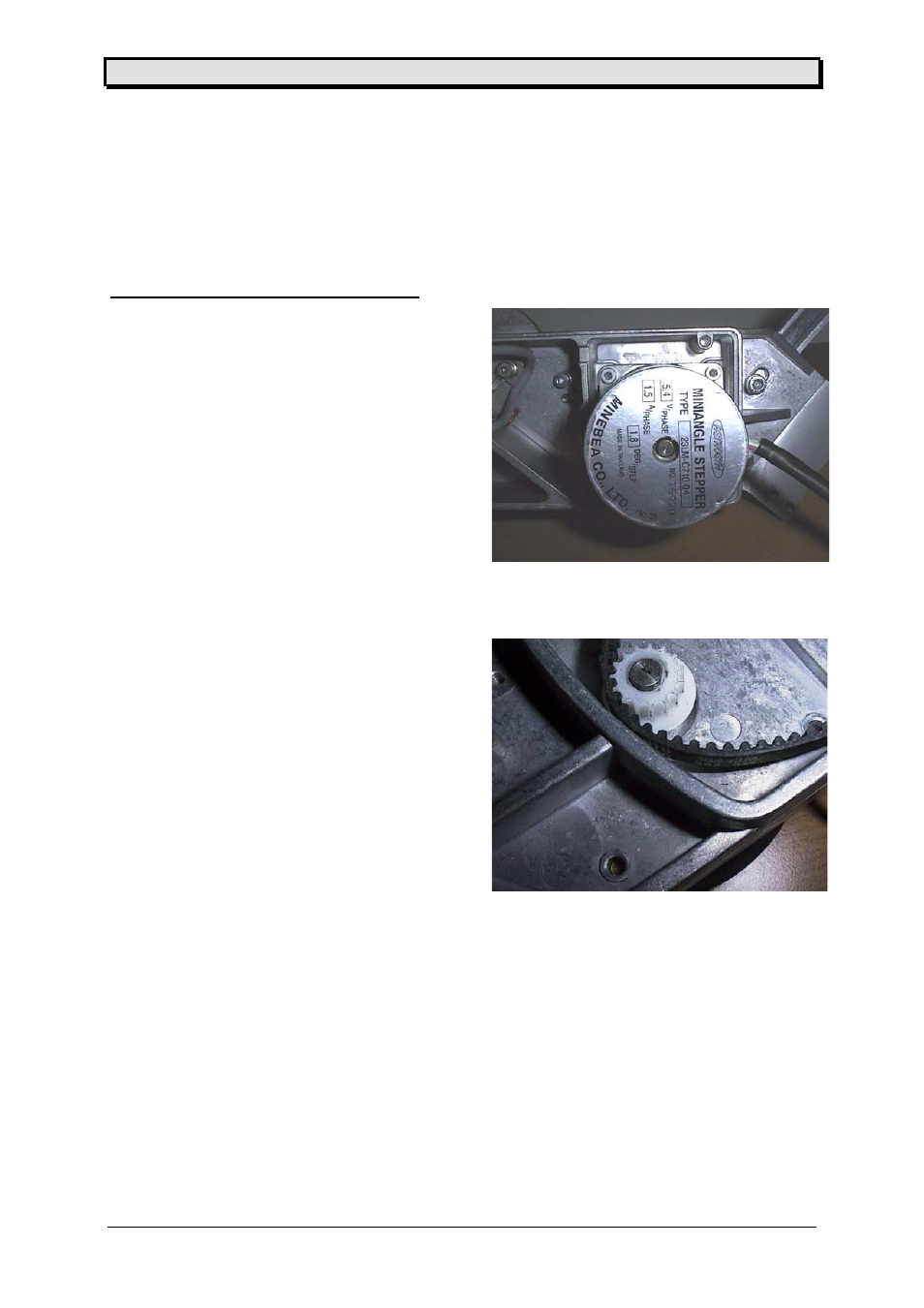

Assembly/Disassembly stepper motor
• open two cross recessed screws and
the back cover part can be removed
• remove cover carefully over the stepper
motor
• as well during assembly and
disassembly the wires should be
watched
• the two hexagonal screws of the
tighten part are now visible
• the fore hexagonal screws of the
stepper motor are now easy to reach
open them and the stepper can be r
removed
• the gear is pressed to the axle and
can not be removed
• during assembly watch the position
of the stepper - otherwise the motor
cable will block the cover
Tooling
cross recessed head size 1
hexagonal socket SW 3
