Introduction

COMX-P40x0 ENP2 Installation and Use (6806800R95B)

23

1.3.2

COMX-P4040 ENP2

The following figure illustrates the top and side views of the COMX-P4040 ENP2 board.

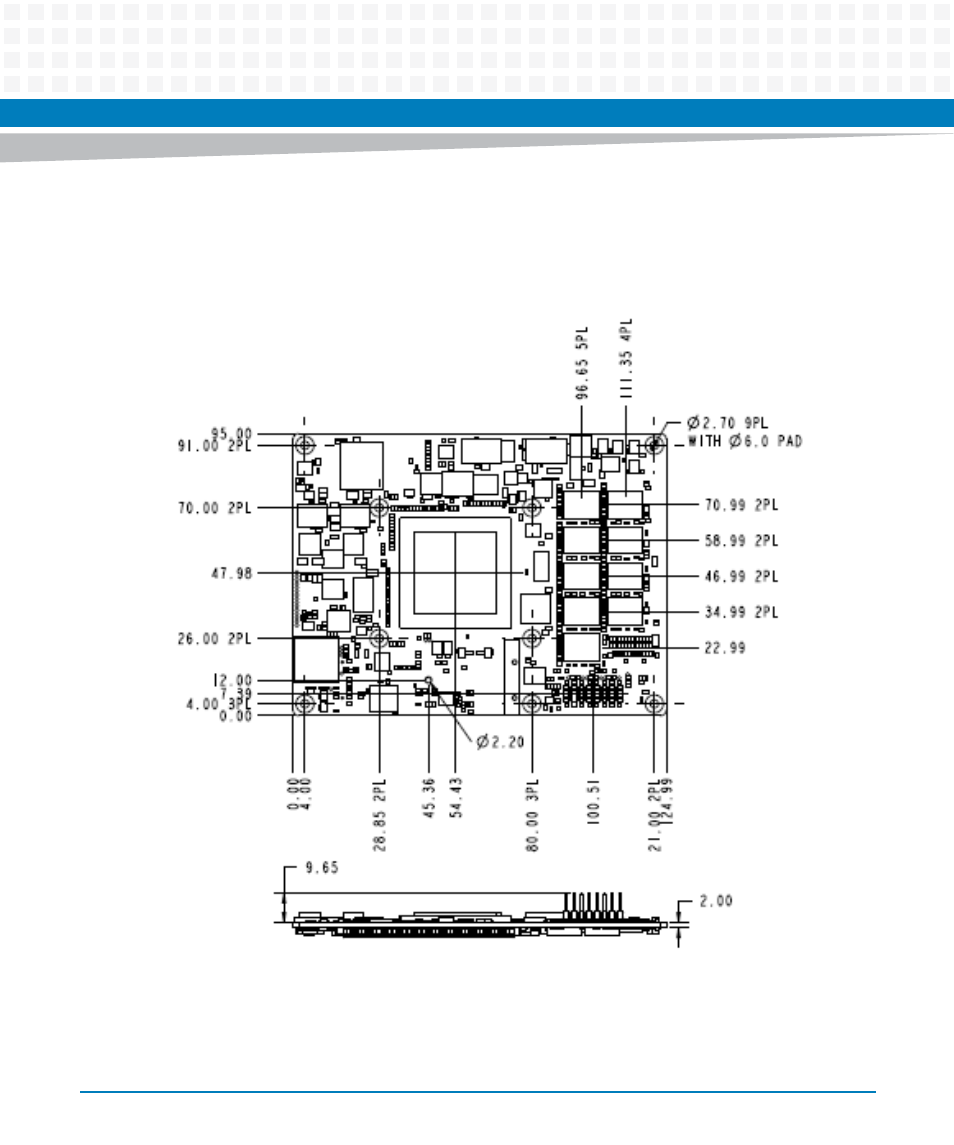

Figure 1-5

COMX-P4040 ENP2 Mechanical Dimensions (Top and side views)
