UM024502-1012 Starting the ZGATE Demo Sample Program
ZGATE Embedded Security Development Kit
User Manual
11
To use the USB port as a power source, adjust the shunt on J12 to the 1–2 position.
Starting the ZGATE Demo Sample Program
The ZGATE Embedded Security Development Kit includes a sample program that demon-
strates how the ZGATE API can be used to enhance the security of a ZTP application. The
ZGATE Demo program includes source code to implement several shell commands that
modify the filtering behavior of ZGATE at run time. In addition the ZGATE Demo pro-
gram includes a sample web page with dynamically generated content that can be used to
modify ZGATE’s configuration using a web browser.
Before starting the ZGATE Demo it is necessary to first complete the installation of ZDS II
and the Zilog TCP/IP Software Suite (ZTP). In addition to run the ZGATE Demo shell
commands it will be necessary to setup a terminal emulation program (such as HyperTer-
minal or Tera Term). The terminal program should be configured for 8N1 with no flow
control.
To get started with the ZGATE Demo use the following procedure.

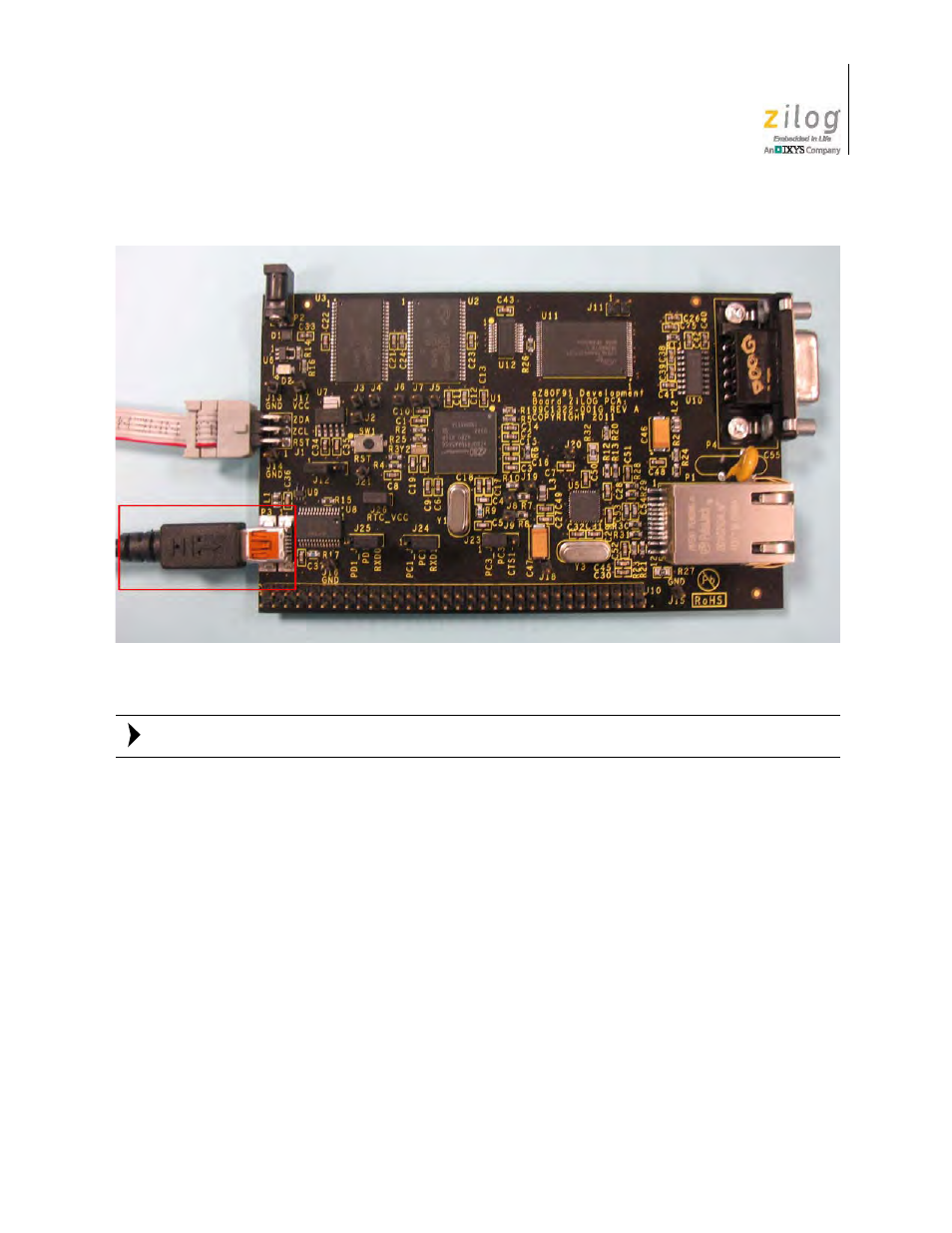

Figure 5. USB-to-UART Port 3 Connector
Note:
