24 Multi Format LCD Monitor
● ●

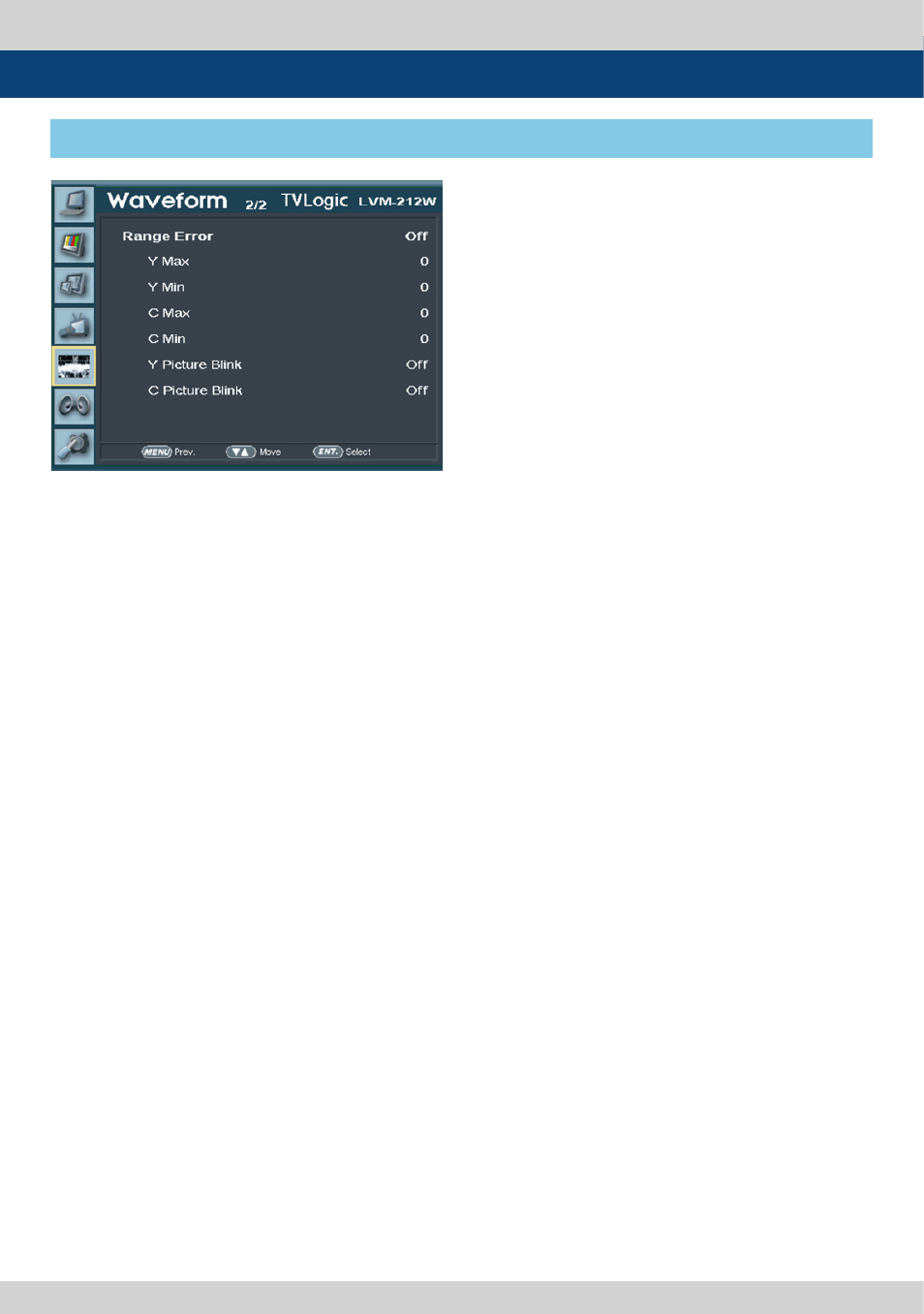

Range Error
- Used to set whether or not to activate - Y MA X,
Y MI N, C MAX, C MIN, Y PICTURE BLINK and C
PICTURE BLINK functions.
- The values of Y MAX, Y MIN, C MAX, C MIN
are indicated in WAVEFORM/VECTOR.
- If [Y PICTURE BLINK] or [C PICTURE BLINK] is
enabled, the section of image that exceeds
the selected values of Y MAX, Y MIN, C MAX
and C MIN shall blink.
* See section “8. Other Function [10] Range
Error” for more information.
● ●
Y Max
- Used to set the maximum luma(Y’) level from
0 to 255.
- Pixels with values exceeding the max Y’ level
will blink in the screen, and displayed as red
on the Waveform.
● ●
Y Min
- Used to set the minimum luma(Y’) level from
0 to 255.
- Pixels with values exceeding the min Y’ level
will blink in the screen, and displayed as red
on the Waveform.
● ●
C Max
- Used to set the maximum chroma(C’) level
from 0 to 255.
- Pixels with values exceeding the min C’ level
will blink in the screen, and displayed as red
on the Waveform.
● ●
C Min
- Used to set the minimum chroma(C’) level
from 0 to 255.
- Pixels with values exceeding the min C’ level
will blink in the screen, and displayed as red
on the Waveform.
● ●
Y Picture Blink
- Used to set whether or not to blink pixels
with values exceeding Y MAX and Y MIN.
● ●
C Picture Blink
- Used to set whether or not to blink pixels
with values exceeding C MAX and C MIN.
5. Menu Operations
[5] Waveform
