Other Functions

[1] F1(MODE) BUTTON

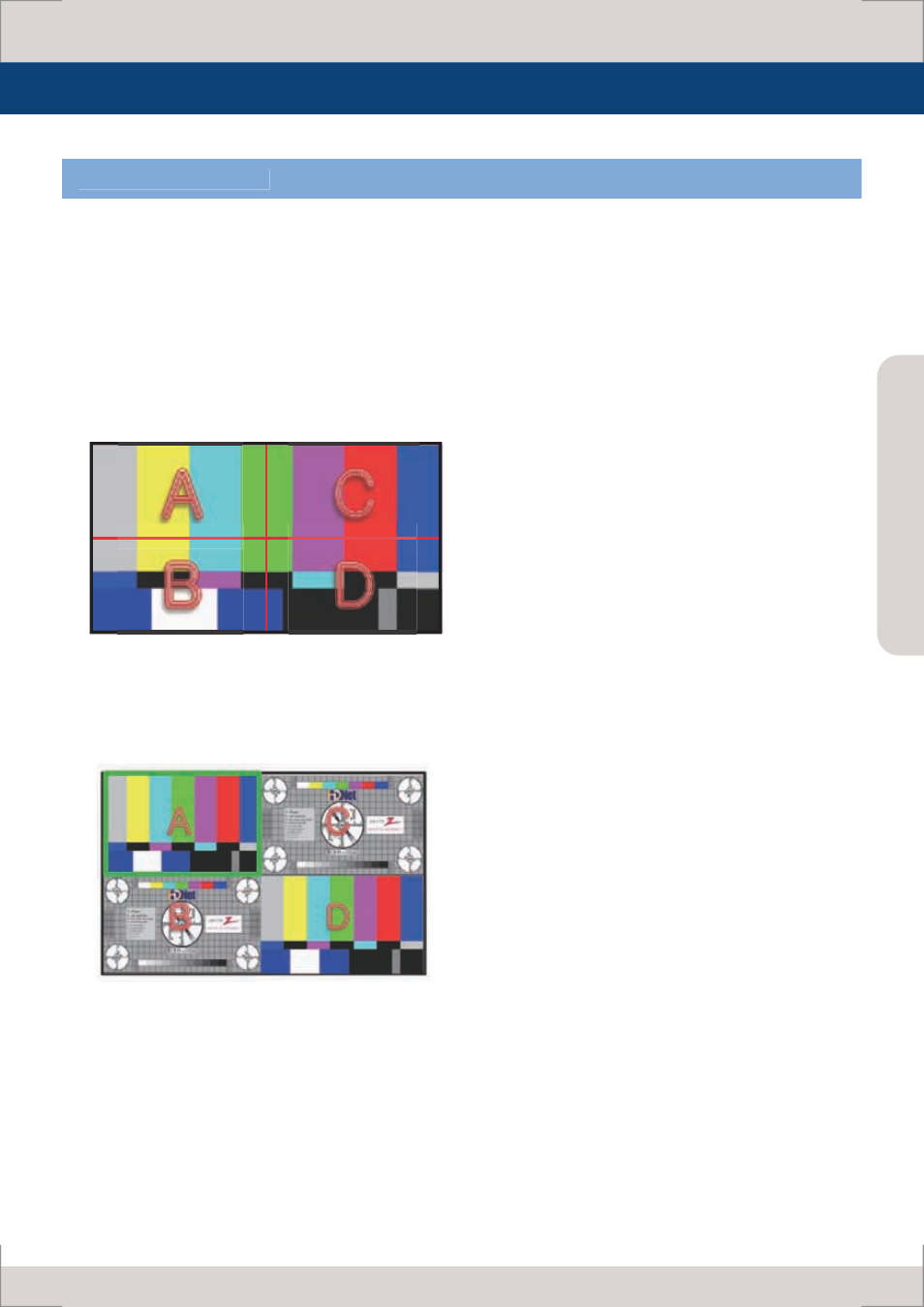

1. F1 key is used to select the screen configuration.

- Selects order of operation: UD MODE -> QUAD MODE -> SINGLE MODE

2. UD MODE

- This mode displays 4 input signals to original 4K(3840x2160) image.

- Once UD MODE is selected, press DVI, HDMI or SDI button on the front of the panel to select

and swtich the input source. (Input A, B, C and D)

3. QUAD MODE

- This mode displays four 1920 x 1080 resolution images for each input channel.

- Display in the same way in DVI, HDMI and SDI MODEs.

* MARKER and other features have limited controls.

To control an individual screen in QUAD MODE, select the desired screen by pressing F5 key which

activates the green screen select box, then activate the desired function. Basic key and OSD controls

work the same way as in SINGLE MODE.

F1(MODE) settings are as followed.
