Menu Contents

[7] INFORM.

KEY LED

- This item controls KEY LED On/Off.

- If the button with LED is pressed with the KEY LED Off, LED comes on but goes off after 5 seconds later.

F1 KEY SETTING

- F1 key is fixed for MODE switch feature.

- Selects order of operation: UD MODE -> QUAD -> SINGLE in sequence.

F2 KEY MAPPING

- F2 key feature is user selectable.

- Available features : UNDER SCAN,H/V DELAY, FREEZE, OUTPUT MODE, DITHERING, FILTER,

FORCE psf, COLOR TEMP, HD DISPLAY.

F3 KEY MAPPING

- F3 key feature is user selectable.

- Available features : ASPECT, H/V DELAY, FREEZE, OUTPUT MODE, DITHERING, FILTER, FORCE psf,

COLOR TEMP, HD DISPLAY.

F4 KEY MAPPING

- F4 key feature is user selectable.

- Available features : MARKER, H/V DELAY, FREEZE, OUTPUT MODE, DITHERING, FILTER,FORCE psf,

COLOR TEMP, HD DISPLAY.

F5 KEY MAPPING

- F5 key feature is user selectable.

- Available features : BLUE ONLY, H/V DELAY, FREEZE, OUTPUT MODE, DITHERING, FILTER,

FORCE psf, COLOR TEMP, HD DISPLAY.

- In QUAD MODE, this button operates for screen select feature. Selects order of operation: ALL

SCREEN -> SCREEN 1-> SCREEN2 -> SCREEN 3-> SCREEN 4 in sequence.

KEY LOCK

- This item locks all buttons on the front panel except Input source, Menu and Power buttons.

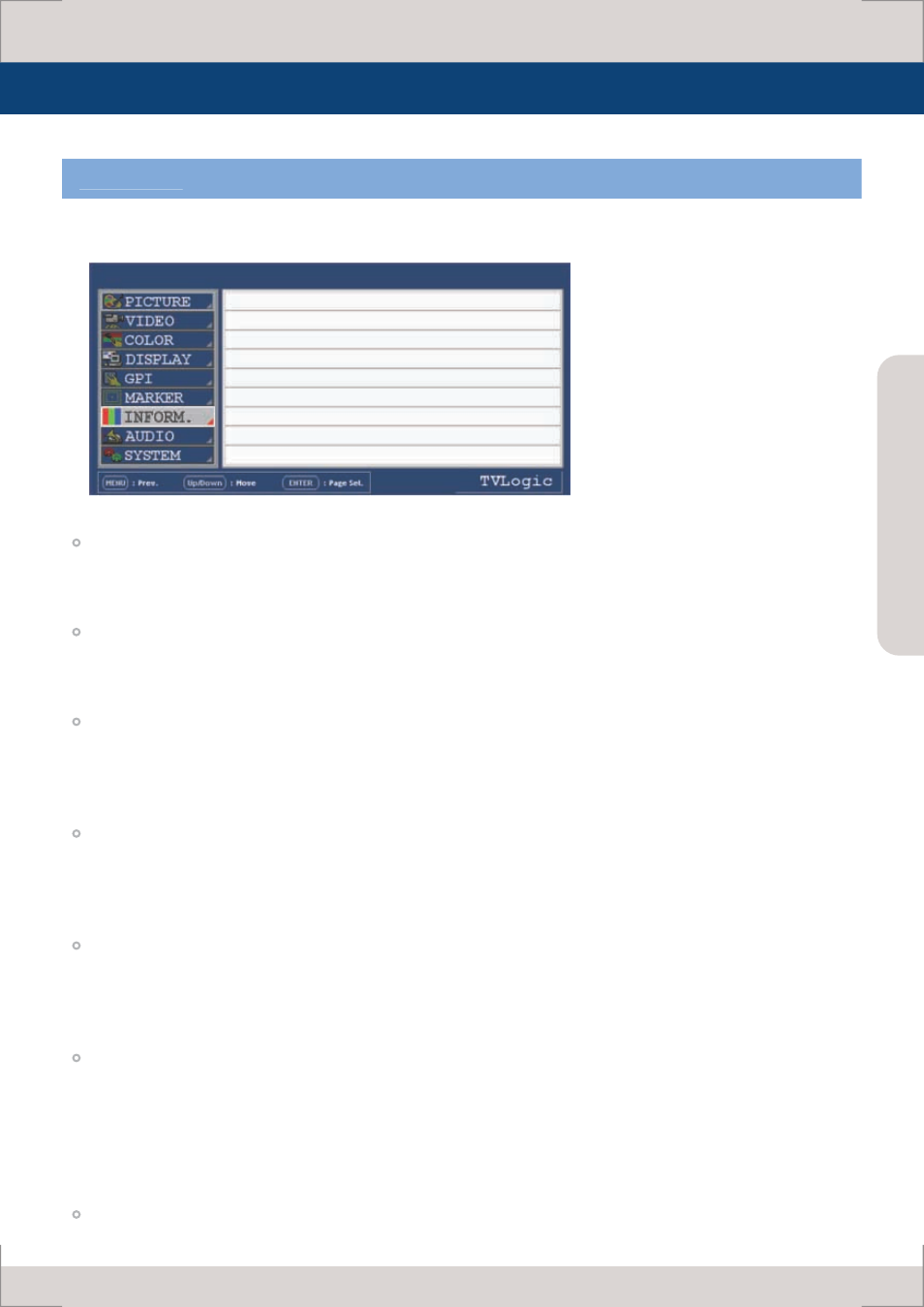

PAGE I >> PAGE II

KEY LED ON

F1 KEY SETTING UD MODE

F2 KEY MAPPING UNDER SCAN

F3 KEY MAPPING ASPECT

F4 KEY MAPPING MARKER

F5 KEY MAPPING BLUE ONLY

KEY LOCK DISABLE

Below is the description for each function of the INFORM. menu.

SDI A LUM-560W 1080/60p
