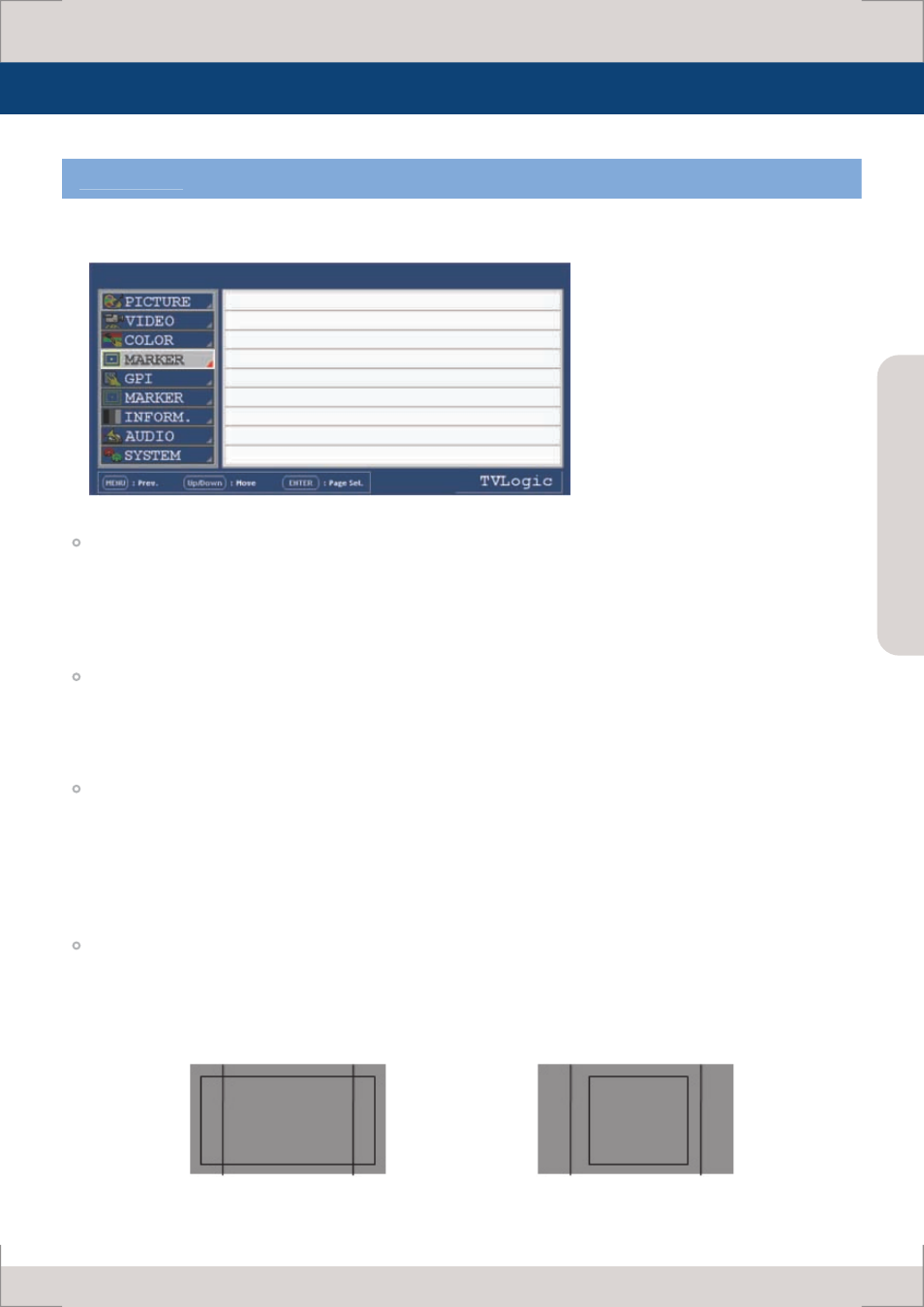

Menu Contents

[6] MARKER

MARKER

- This item selects the marker type when the MARKER is displayed on the screen.

- MARKER may only be activated by pressing the MARKER button on the front of the monitor.

- Available marker types are 16:9, 4:3, 4:3 ON AIR, 15:9, 14:9, 13:9, 1.85:1, 2.35:1, 1.85:1 & 4:3 and

USER.

CENTER MARKER

- This item displays the CENTER MARKER on the screen.

- This function operates only after activating the MARKER function by pressing the MARKER button

on the front of the monitor.

SAFETY AREA

- This item controls the size of the SAFETY AREA.

- Available types are 80%, 85%, 88%, 90%, 93%, 100%, EBU ACTION 16:9, EBU GRAPHIC 16:9,

EBU ACTION 14:9, EBU GRAPHIC 14:9, EBU ACTION 4:3 and EBU GRAPHIC 4:3.

- This function operates only after activating the MARKER function and by pressing the MARKER

button on the front of the monitor.

FIT MARKER

- This item activates the FIT MARKER function.

- With FIT MARKER “ON”, the safety area is displayed relative to the marker in use. With FIT MARKER

“OFF”, the safety area is displayed relative to the incoming source.

- FIT MARKER ON/OFF displays as shown below.

PAGE I >> PAGE II

MARKER OFF

CENTER MARKER OFF

SAFETY AREA OFF

FIT MARKER OFF

MARKER MAT OFF

MARKER COLOR WHITE

MARKER THICKNESS 4

Below is the description for each function of the MARKER menu.

SDI A LUM-560W 1080/60p

MARKER : 4:3

SAFETY AREA : 90%

FIT MARKER : OFF

MARKER : 4:3

SAFETY AREA : 90%

FIT MARKER : OFF
