Menu Contents

[4] DISPLAY

HD DISPLAY MODE

- Controls the display ratio in HD mode.

- Available values are 16:9, 1.85:1 and 2.35:1.

MONITOR ID

- Sets the ID of each monitor for the TV Logic control protocol or DYNAMIC UMD using

RS-422/485 communication

PASSWORD

- Used to download the program via Ethernet. The password set for the monitor must match with

the password for the download program.

IP ADDRESS

- Sets the IP address.

SUBNET MASK

- Sets the subnet mask.

GATEWAY

- Sets the gateway.

PORT NO

- Sets the port number. Default port number is 10262

HD DISPLAY MODE 16:9

MONITOR ID 0

PASSWORD

IP ADDRESS 255.255.128. 0

SUBNET MASK 0. 0. 0. 0

GATEWAY 22. 40. 1. 0

PORT NO 10262

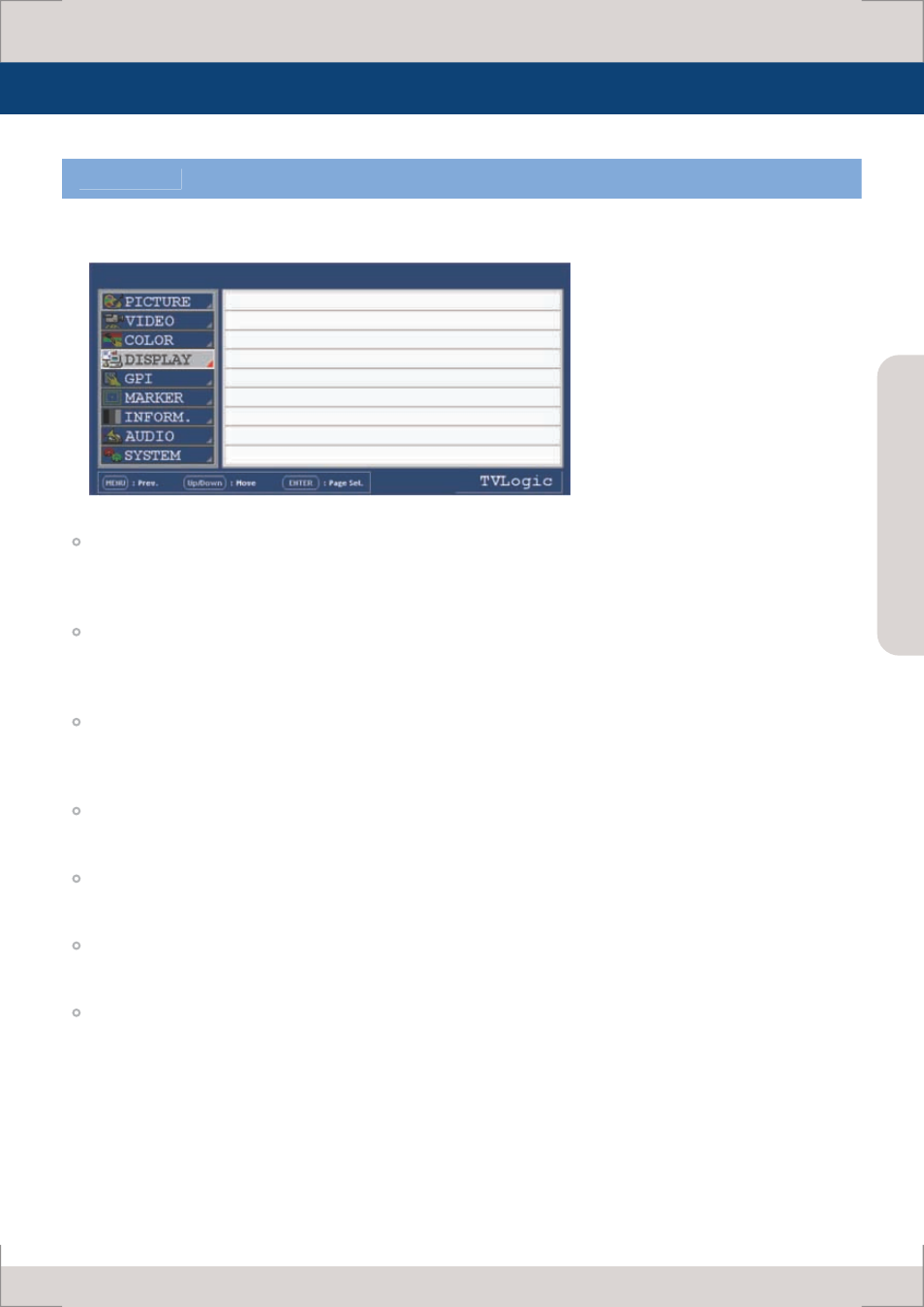

Below is the description for each function of the DISPLAY menu.

SDI A LUM-560W 1080/60p
