VOLUME MIN

Em. AUDIO LEFT OFF

Em. AUDIO RIGHT OFF

SPEAKER OUT SELECT AUTO SELECT

SDI A LUM-560W 1080/60p

Menu Contents

Multi F

orma

t L

CD M

onit

or

22

[8] AUDIO

VOLUME

- This item controls the embedded audio output volume for the internal speakers and [AUDIO

OUT] on the back of the monitor.

- Available values are between 0 ~ 30.

Em. AUDIO LEFT

- This item controls embedded audio channel for left audio out of internal speaker and [AUDIO

OUT] in the back of the monitor.

- Available values are between CH 1 ~ CH 16.

- In HDMI Mode, left audio of Ch A output only.

Em. AUDIO RIGHT

- This item controls embedded audio channel for right audio out internal speaker and [AUDIO

OUT] in the back of the monitor.

- Available values are between CH 1 ~ CH 16.

- In HDMI Mode, right audio of Ch A output only.

SPEAKER OUT SELECT

- This item activates in QUAD MODE. Selects order of operation : SCREEN 1 -> SCREEN 2 -> SCREEN

3 -> SCREEN 4 -> AUTO SELECT

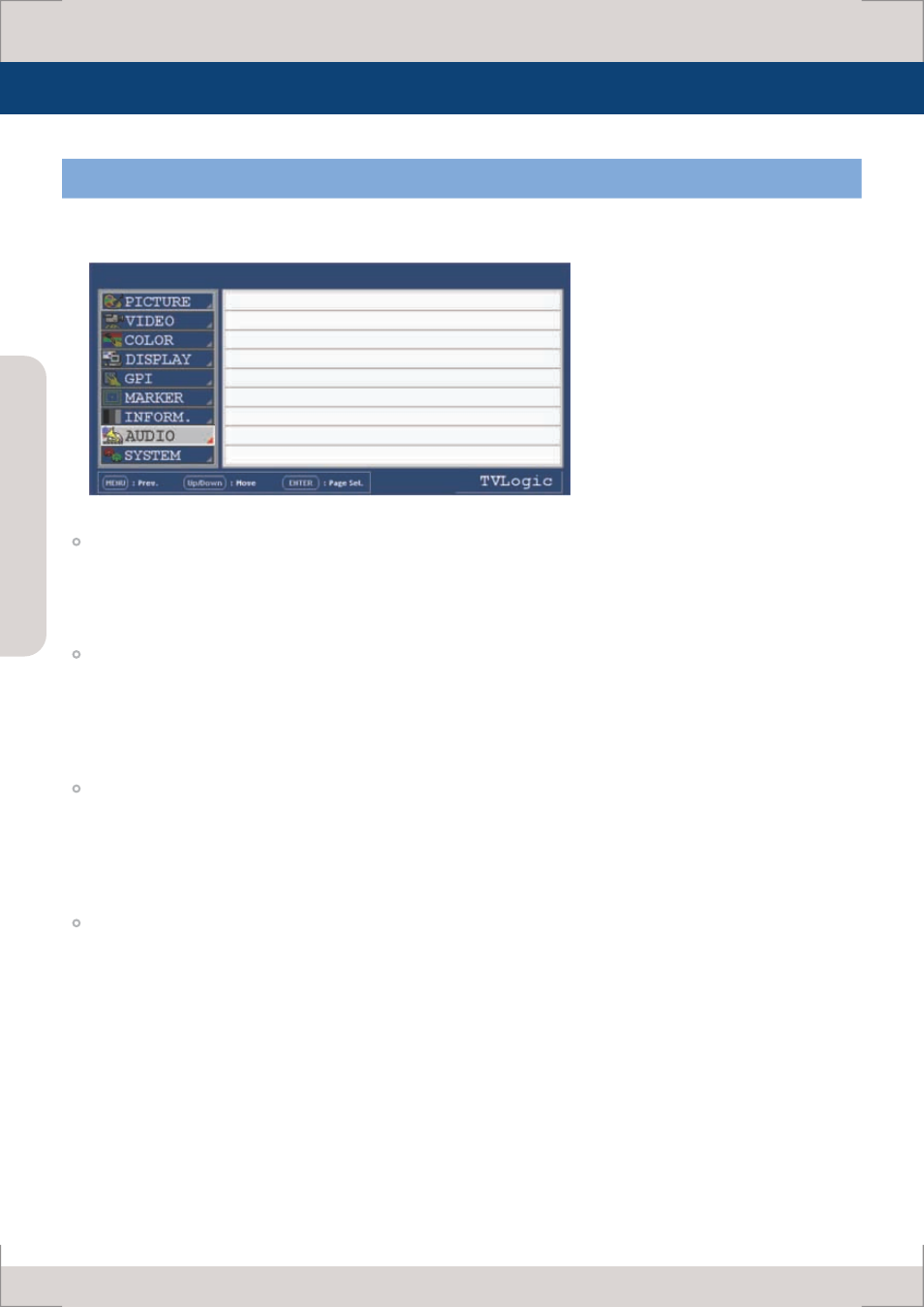

Below is the description of the AUDIO menu.
