DITHERING OFF

FILTER ON

FORCE psf OFF

FILM MODE DETECTION AUTO

3G FORMAT NORMAL MODE

OUTPUT MODE SELECT NORMAL

DVI INPUT FORMAT SELECT RGB

RGB INPUT MODE RGB255

SDI A LUM-560W 1080/60p

Memu Contents

Multi F

orma

t L

CD M

onit

or

14

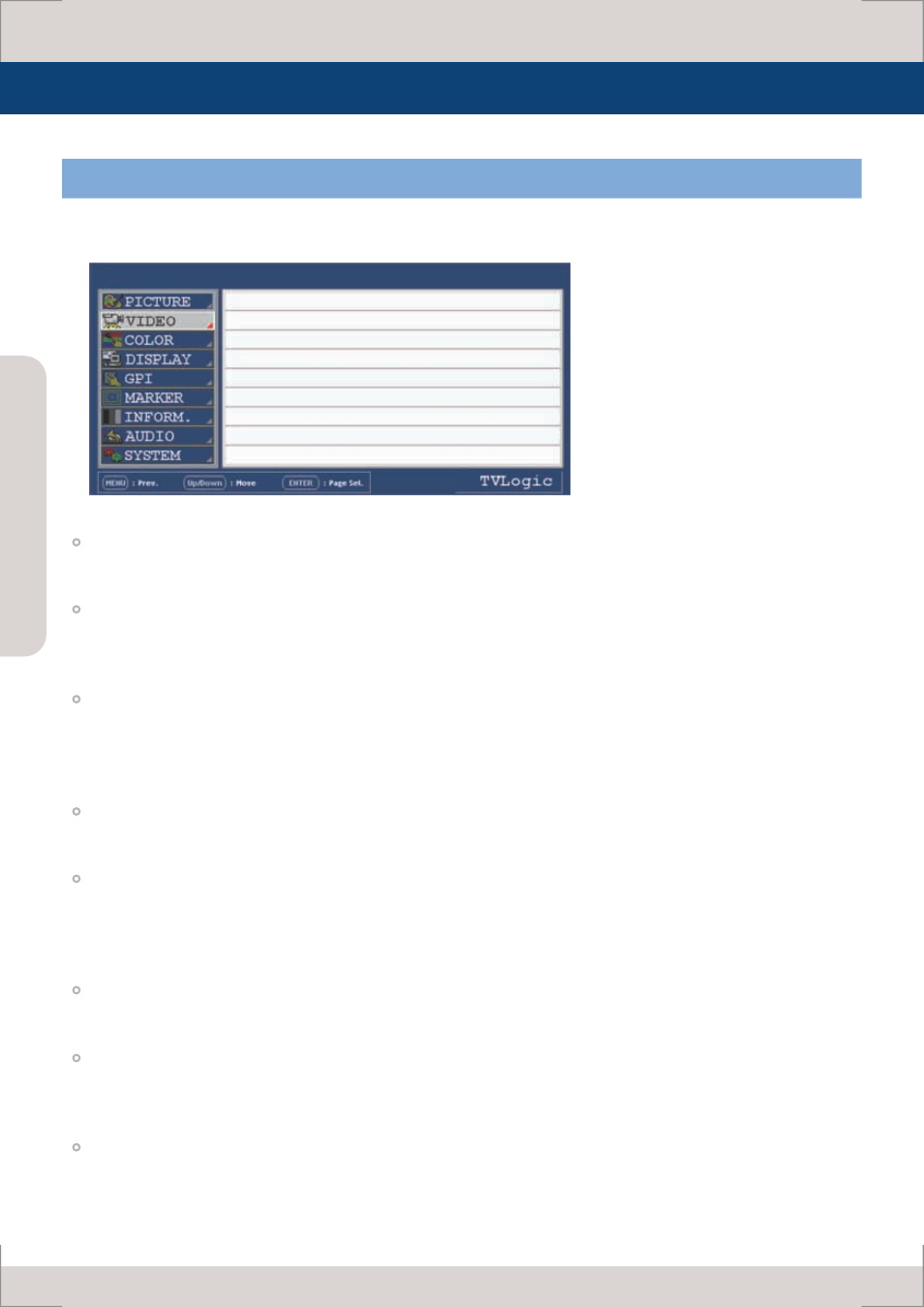

[2] VIDEO

DITHERING

- Toggles 10bit Dithering On/Off.

FILTER

- This item toggles the 4:4:4 video processing filter On/Off.

- To eliminate ringing artifacts under 4:2:2 sources, please set this Filter to ON or OFF.

FORCE psf

- This item forces psf mode for psf signals, overriding the automatic psf detection.

- If this feature is turned off, the unit checks for the psf signal first, then searches for the remaining

modes.

FILM MODE DETECTION

- This item toggles Film Mode On/Off

3G FORMAT

- This item selects input format of SDI 3G A/B support (NORMAL MODE, A 444 10BIT_YCbCr, A 444

10BIT_RGB, A 444 12BIT_YCbCr, A 444 12BIT_RGB, A 422 12BIT_YCbCr, B 444 10/12BIT_YCbCr, B

444 10/12BIT_RGB, B 422 12BIT_YCbCr, B 422 10BIT_YCbCr, 60P).

OUTPUT MODE SELECT

- Selects luminance range in SDI MODE between FULL (255) and NORMAL (235).

DVI INPUT FORMAT SELECT

- Selects input color format between RGB and YPbPr.

- Only available in DVI DIGITAL Modes.

RGB INPUT MODE

- Selects input luminance range between RGB 255 and RGB 235.

- Only available in DVI DIGITAL and HDMI Modes.

Below is the description for each function of the VIDEO menu.
