Menu Layout & Adjustment

The product may be controlled and adjusted via the on-screen menu.

Multi F

orma

t L

CD M

onit

or

12

1) Menu Organization

Below is the organization of the product’s menu.

2) Menu Control

You may control various functions using MENU, UP/DOWN and ENTER buttons on the bottom

front of the monitor.

3) Menu Control Sequence

Menu control sequence follows the order below:

1. Press MENU button to bring the OSD menu on the screen.

2. Display the desired sub menu with the UP/DOWN button.

3. After selecting a sub menu, press ENTER to select an item with the UP/DOWN button. (Find

(PAGE I >> PAGE II) item and press “ENTER” button to go to the next page of the submenu)

4. Press ENTER to select the desired item. (Verified by highlighted field text turning red)

5. Press ENTER to save the new value after adjusting the value with UP/DOWN button. (Verified by

highlighted field returning to default black color)

6. Press MENU to remove OSD menu from the screen.

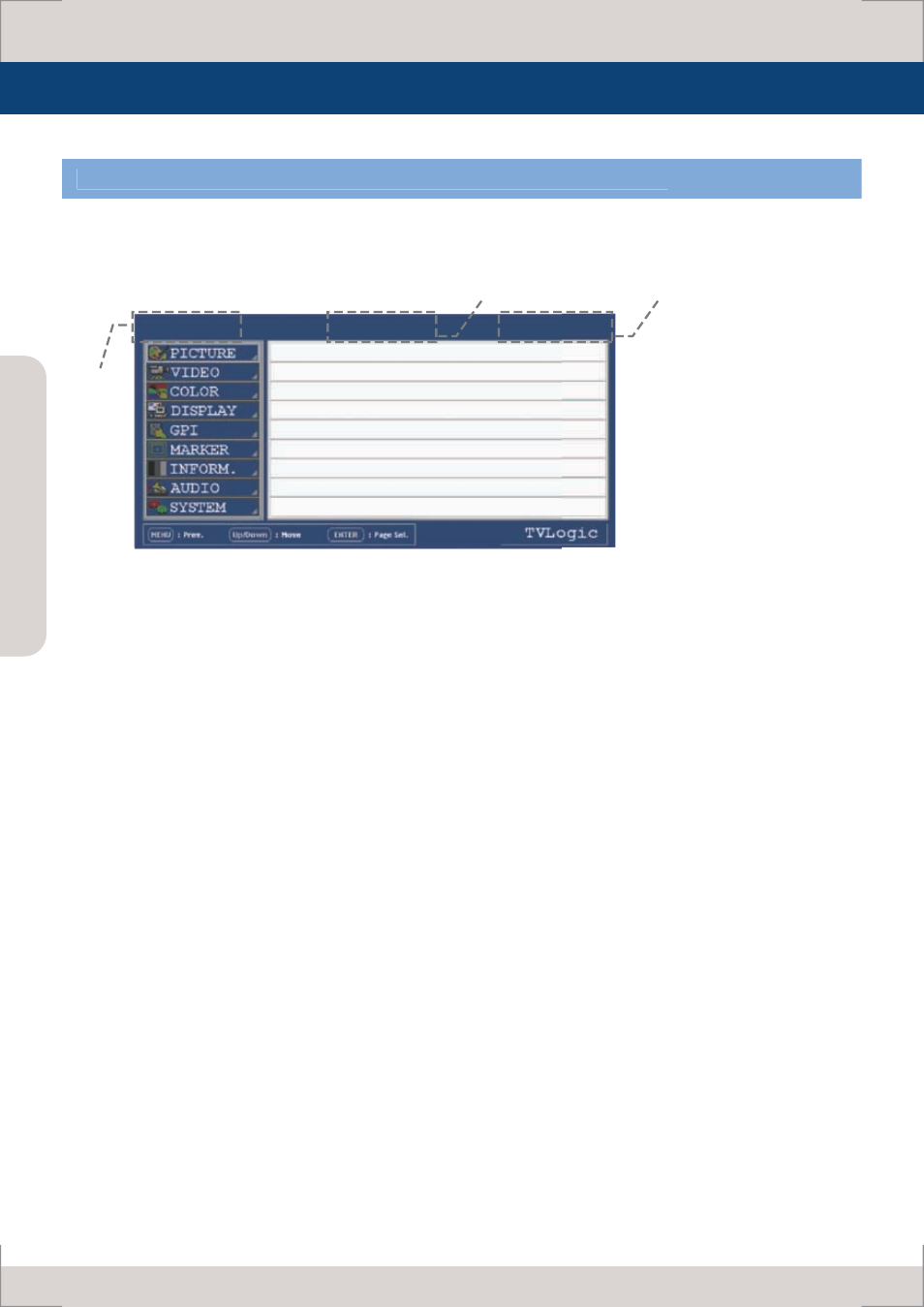

4) Main Menu Window Information

Current input signal (Indicates as UD XXX in UD mode)

Model name (LUM-560W)

Current input signal resolution

BRIGHT 0
CONTRAST 0
CHROMA 0
APERTURE 0

SDI A LUM-560W 1080/60p
