Wall Mounting
3.2
To hang the Ethernet switch on the wall, please follow the steps below.
1.
Remove the DIN-rail clip.
2.
Prepare the two wall-mount plates and six screws included.
3.

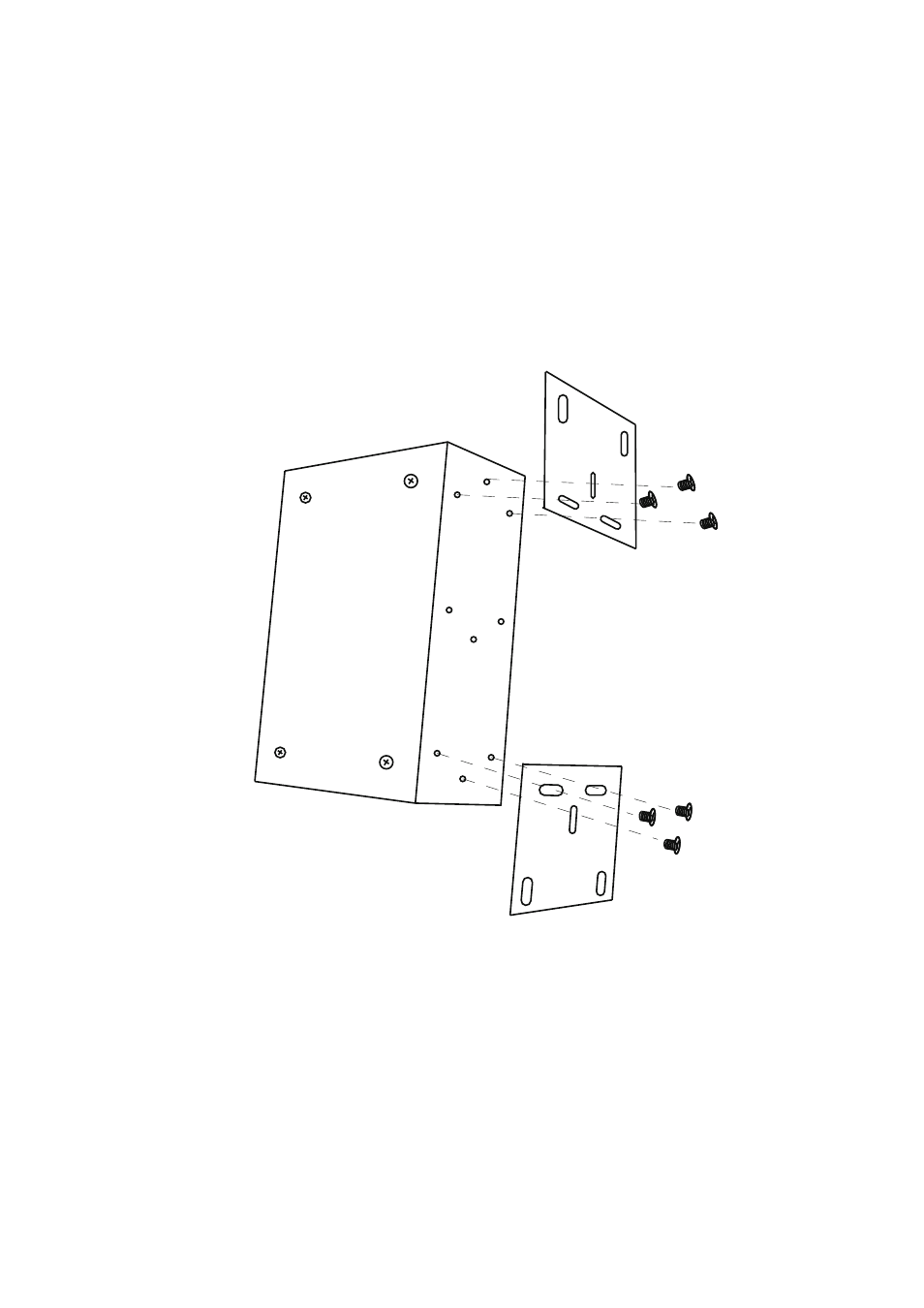

Align the screw holes between the wall-mount plates and the unit as the figure illustrated.
4.
Secure the plates to the unit with the accompanying screws.
